Quick Details
-
Model Number:
-
NLD042-046
-
Place of Origin:
-
Zhejiang, China
-
Disposable:
-
Non-Disposable
-
Power Source:
-
Manual
-
Material:
-
Glass Pipette
-
Product Name:
-
Pipette
-
Volume Range:
-
0.1 - 2UL
-
Specification:
-
5ul, 10ul, 20ul, 25ul
Quick Details
-
Warranty:
-
3 years
-
Customized support:
-
CE, ISO
-
Brand Name:
-
globalroll
-
Model Number:
-
NLD042-046
-
Place of Origin:
-
Zhejiang, China
-
Disposable:
-
Non-Disposable
-
Power Source:
-
Manual
-
Material:
-
Glass Pipette
-
Product Name:
-
Pipette
-
Volume Range:
-
0.1 - 2UL
-
Specification:
-
5ul, 10ul, 20ul, 25ul
Specification
NLD042(Fixed Volume) Pipettors
| Cat.No | Volume | Test Volume |
| 722001 | 5ul | 5ul |
| 722004 | 10ul | 10ul |
| 722010 | 20ul | 20ul |
| 722015 | 25ul | 25ul |
| 722020 | 50ul | 50ul |
| 722025 | 100ul | 100ul |
| 722030 | 200ul | 200ul |
| 722040 | 250ul | 250ul |
| 722045 | 1000ul | 1000ul |
| 722050 | 2000ul | 2000ul |
| 722055 | 5000ul | 5000ul |
NLD043(Adjustable Volume) Pipettors
| Cat.No | Volume Range | Increment |
| 720005 | 0.1-2.5ul | 0.05ul |
| 720000 | 0.5-10ul | 0.1ul |
| 720080 | 2-20ul | 0.5ul |
| 720020 | 5-50ul | 0.5ul |
| 720050 | 10-100ul | 1ul |
| 720070 | 20-200ul | 1ul |
| 720030 | 50-200ul | 1ul |
| 720060 | 100-1000ul | 5ul |
| 720040 | 200-1000ul | 5ul |
| 720110 | 1000-5000ul | 50ul |
NLD044 Mechanical (Adjustble Volume)Mulri-channel Pipettors
| Cat.No | Volume Range | Increment |
| 720210 | 0.5-10ul | 0.1ul |
| 720220 | 5-10ul | 0.5ul |
| 720240 | 50-300ul | 5ul |
| 720310 | 0.5-10ul | 0.1ul |
| 720320 | 5-50ul | 0.5ul |
| 720340 | 50-300ul | 5ul |
Features for multi-channel pipetors
-
Lightweight, ergonomic, low force design
- Digital display clearly reads volume setting
- The pipettes cover volume range of 0.1μl to 10ml
- Easy to calibrate and maintain with tool supplied
- Design helps avoid repetitive strain injuries
- Calibrated in accordance with ISO8655. Each pipette supplied with individual test certificate
- The low part is available for autoclaving

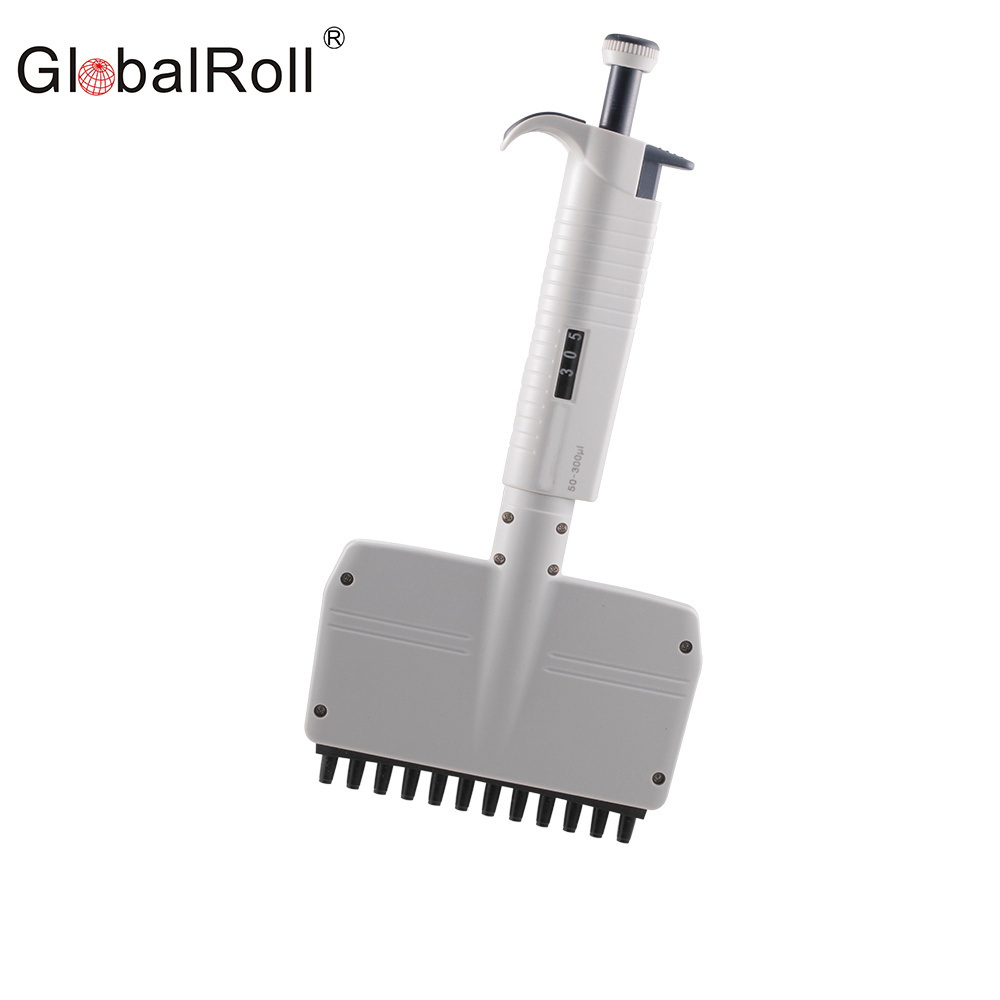

Features for multi-channel pipettor
-
8 and 12 channel pipettes are available for standard 96-well plate
- Dispensing head rotates for optimum pipetting convenience
- Individual piston and tip cone assemblies allow easy repair and maintenance
- Compound material tip cone design allows visual seal verification
- Can be used with universal style pipette tips
Application
Toption Pipette uses the air displacement principle, the piston in the piston sleeve moving at a fixed
range (adjustable), to generate negative pressure, suck in quantitative (adjustable) liquid. It has many
advantages, such as convenient use, reliable performance.
All TOPTION pipettes have been quality tested according to ISO8655-2:2002 with calibration certificate.
The quality control involves gravimetric testing of each pipette with distilled water at 22℃.
Use
1. Put the nozzle on the pipetting head, and rotates gently, so as to ensure the sealing is well.
2. Before using, please suck in or discharge the liquid of the pipette for several times, in order to ensure
inside and outside of the chamber pressure are the same.
3. Hold the pipette vertical, set the button to the first stopping point, and put the suction nozzle immersed
into the liquid, under the liquid surface 2-3mm, then slowly release the button, waiting for 1-2 seconds,
after that, take it out from the liquid, and do not let it touch anything.
4. Move the suction nozzle to the sample container wall, slowly push the button to the first stopping
point, waiting for 1-2 seconds, then push the button, exhaust all the liquid, the suction nozzle should
be slided out along the vessel wall, then slowly release the button, that is a complete operation process.
