Quick Details
-
Frame Material:
-
Cr-mo or steel
-
Braking System:
-
Brake Line
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Meiruido
-
Model Number:
-
SY-BM2401
-
Gross Weight:
-
10.00kgs
-
Net Weight:
-
9kg
-
Color:
-
Customized
-
Tire:
-
Wanda
-
Frame:
-
Hi-Ten
-
Style:
-
FREESTYLE
-
Rim:
-
Alloy Rim
-
Brake:
-
U-Brake
-
Bottom Bracket:
-
Loose Ball Bearings
-
Handlebar:
-
BMX Handle Bar
-
Hub:
-
2 Sealed Bearing
-
Stem:
-
Aluminum Alloy Stem Sets
Quick Details
-
Fork Material:
-
Cr-mo or steel
-
Gears:
-
Single Speed
-
Wheel Size:
-
24"
-
Frame Material:
-
Cr-mo or steel
-
Braking System:
-
Brake Line
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Meiruido
-
Model Number:
-
SY-BM2401
-
Gross Weight:
-
10.00kgs
-
Net Weight:
-
9kg
-
Color:
-
Customized
-
Tire:
-
Wanda
-
Frame:
-
Hi-Ten
-
Style:
-
FREESTYLE
-
Rim:
-
Alloy Rim
-
Brake:
-
U-Brake
-
Bottom Bracket:
-
Loose Ball Bearings
-
Handlebar:
-
BMX Handle Bar
-
Hub:
-
2 Sealed Bearing
-
Stem:
-
Aluminum Alloy Stem Sets

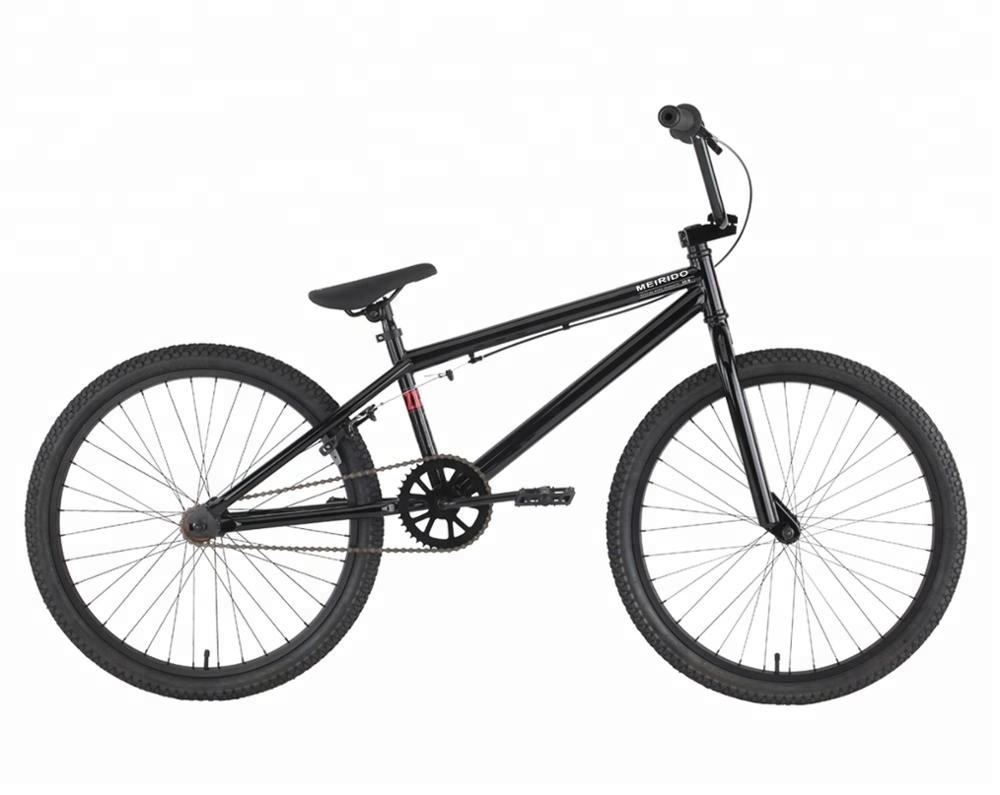

Bmx Bicycle:
- SY-BM2402
- Frame:24" Cr-Mo or Steel
- Fork:24" Cr-Mo or Steel
- Handlebar: Hi-Ten
- Stem: alloy
- Chain wheel: steel ½"* 1 / 8 "*38T
- Hub: steel
- Free wheel:½"* 1 / 8 "*T
- Brake: R: V- brake
- Rim :24"*1.75" alloy
- Tire : 24"*1.95/2.125" BK
| SPC | VENDOR | Component | COMPONENT COLOR |
| DECAL/NAME PLATE | BLUESKY | WATER TRANSFER DECAL | |
| FRAME | YJ | 24 INCH Cr-Mo or Steel Top tube length 21.65inch | PAINTI NG |
| FORK | KSK | Hi-ten 1-1/8" Threadless | PAINTING |
| HEAD SET | VP | AHEADSET THREADLESS,9PCS | BLACK |
| HEADSET SPACERS | VP | ALLOY BLACK | BLACK |
| TOP CAP/STAR NUT | VP | TOP CAP W/STAR NUT | BLACK |
| SPROCKET/SPIDER | CW | 1/8”x40T ALLOY CHAINRING | SU |
| CRANK SET | CW | Steel 25T 175MM, 3PC or 1PC | BLACK |
| BB-SET | CW | 19MM CR-MO SPLINE INTERFACE | BLACK |
| HANDLEBAR | EVG | BMX Hbar 7" Rise .Hi-Ten 690mmX170mm | MATTE BLACK YS-728 |
| STEM | EVG | 28.6*50MM EXT; BAR BORE 22.2MM | BLACK |
| GRIP | VELO | VELO GRIP 130MM LENGTH | BLACK |
| H/BAR END PLUG | N/A | N/A | |
| F/HUB | KT HUB | KT HUB; MODEL 36H LOW FLANGE ALLOY SHELL; | BLACK |
| R/HUB | KT HUB | KT HUB; MODEL 36H LOW FLANGE ALLOY SHELL | BLACK |
| FRONT RIM | SNM | Alloy rim. PBR 24". | BLACK |
| REAR RIM | SNM | Alloy rim. PBR 24". | BLACK |
| SPOKES | SLE | 14 GAUGE STEEL; LACED 3 CROSS | BLACK |
| FRONT TIRE/TUBE/STRIP | KENDA | 24" X 1.95"; BK; | BLACK |
| REAR TIRE/TUBE/STRIP | KENDA | 24" X 1.95"; BK F/V | BLACK |
| F/BRAKE | N/A | N/A | |
| R/BRAKE | Promax | Promax BMX U-BRAKE MELT FORGED | BLACK |
| BRAKE LEVER | Promax | Promax Melt Forged alloy W/REACH ADJUST FOR U-BRAKE. | BLACK |
| BRAKE CABLE/CASING | LEE CHI | LEE CHI 2P 2C | BLACK |
| ROTOR | N/A | N/A | |
| FREEWHEEL | LIDA | LMA-8 brown | BROWN |
| CHAIN | KMC | KMC Z410A | NICKEL SIDE PLATES |
| CHAINGUARD | N/A | ||
| SADDLE | VELO | PIVOTALASTIC | BLACK PLASTIC WITH GREY |
| SEAT POST | PREMETEC | ALLOY PIVOTAL POST | BLACK |
| SEAT CLAMP | Promax | Promax MX-38-RT; 31.8MM; SAND BLAST BLACK | SILVER ANO JY-002 |
| PEDALS | VP | VP-565 Aluminum; Ball Bearing; 9/16" | BLACK |
| CHAIN TENSIONER | PMT | YES | |
| PEGS | N/A | N/A | |
| REFLECTORS | CATEYE | AS REQUIRED TO MEET CPSC REQUIREMENT; WHITE WHEEL | |
| MISC | N/A | N/A | |
| F/REF. BRKT | YF | FOR HANDLEBAR CROSS BAR | BLACK |
| R/REF. BRKT | YF | FOR SEAT POST | BLACK |
| F. AXLE SAFETY RET | BLACK | BLACK | |
| BOLTS | SG | STAINLESS | BLACK |
| MANUAL | AS CLIENT | ||
| PACKING MATERIAL | CARDBOARD PAPER WRAP | ||
| CARTON | 5 PLY EXPORT STANDARD | ||
| FRAME/FORK FINISH: | AS ORDER | PAINTI NG | |
| HANDLEBAR FINISH | AS ORDER | MATTE BLACK YS-728 | |
| PACKING | SKD 85% | 1SET/CARTON | |
| CKD | A+B CARTON PACKING | ||
| OEM | FRAME&FORK 4SETS/CARTON REST PARTS OEM PACKING |
- OEM service is welcome.
-
We will provide all the details to you during the mass production.
- Customize your mould according to your need.
- Your requirements are highly respected.
- Necessary test and certification can be obtained as you request.
FAQ:
1
. Q: Can I get some samples?
A: We are honored to offer you samples for quality check.
2. Q : How long can I receive my sample?
A: It usually takes 15 business days for samples. If the size in stock, we will ship your item immediately.
3. Q : What's the MOQ?
A: The MOQ is 300 PCS.The colors can be mixed in one container,but the quantity should not less than 75 PCS.
4. Q : How does your factory do related quality control?
A: Quality is top priority. We attach great importance to quality control from the very beginning of manufacturing.
5. Q : What's the delivery time?
A:Generally speaking,it will take about 45days to finish an order from MOQ to 40'HQ.But the extra time is according to your quantity.
6. Q : Can I push the delivery time?
A:Just like mom give birth to baby, preterm child is not healthy and need you take more care for him.We take longer time making perfect products for you.
Don't hesitate to contact us if you have any questions.
Thank you!
