Quick Details
-
Filling Accuracy:
-
±1ml
-
Voltage:
-
220/380V;50/60HZ(Customized)
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sunshine
-
Dimension(L*W*H):
-
2200*1350*2200(mm)
-
Weight:
-
1300 KG
-
Max Capacity:
-
1000-8000BPH
-
Suitable bottle:
-
Customized
-
Bottle type:
-
Plastic Bottle
-
Material:
-
PP material
-
Usage:
-
Liquid Packaging
-
Transport packaging:
-
Export Standard Packages
-
After-sales Service Provided:
-
Video technical support
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, Other, 12000BPH, 6000BPH, 400BPH, 20000BPH, 16000BPH, 500BPH, 2000BPH, 1000BPH, 100BPH, 200BPH, 2000-2200BPH, 0-8000BPH
-
Packaging Material:
-
Plastic
-
Filling Material:
-
Beer, Other, Milk, Water, Oil, Juice, Powder, COSMETIC, chemical
-
Filling Accuracy:
-
±1ml
-
Voltage:
-
220/380V;50/60HZ(Customized)
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sunshine
-
Dimension(L*W*H):
-
2200*1350*2200(mm)
-
Weight:
-
1300 KG
-
Max Capacity:
-
1000-8000BPH
-
Suitable bottle:
-
Customized
-
Bottle type:
-
Plastic Bottle
-
Material:
-
PP material
-
Usage:
-
Liquid Packaging
-
Transport packaging:
-
Export Standard Packages
-
After-sales Service Provided:
-
Video technical support
-
Marketing Type:
-
Ordinary Product

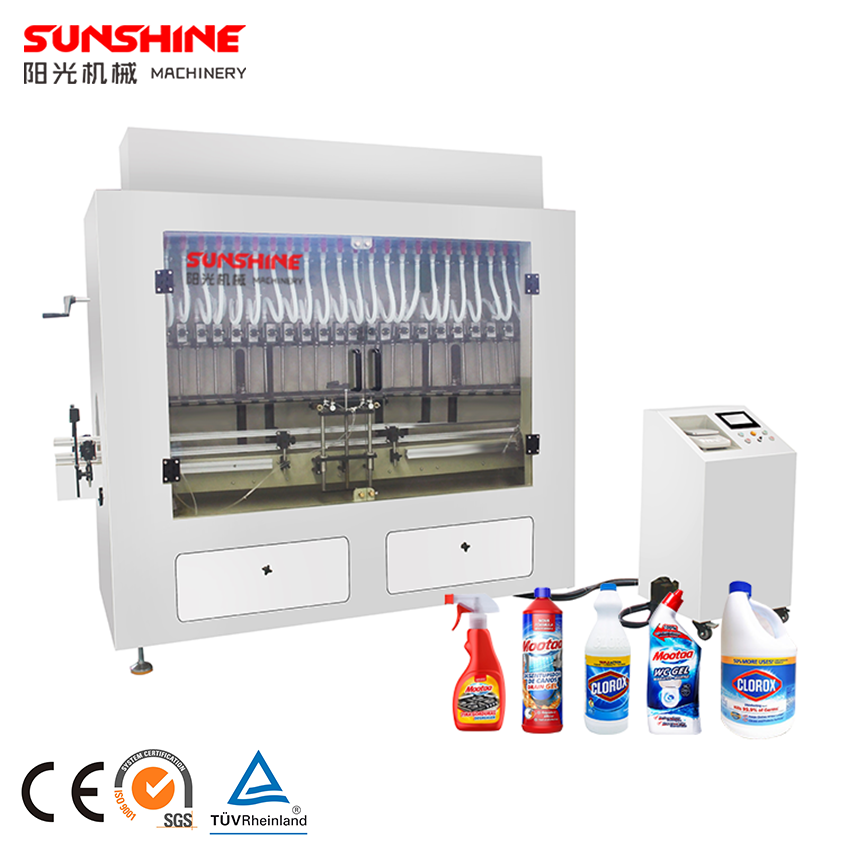

Automatic Anticorrosive liquid filling machinery
This machine is automatic filling machine with anti-corrosion function.The machine adopts the world-class brand electrical components with microcomputer (plc) automatic control function compact, long service life of components, easy maintenance, safe and reliable, low noise, simple operation, accurate and convenient measurement adjustment.
1.The machine is made of PP anti-corrosive material, and the surface of the machine is coated with anti-corrosive coating, suitable for all kinds of disinfectants , cleaning liquid and other corrosive liquids.It’s Especially used in the packaging of strong acid and alkali
liquids.
liquids.
2.
Independent anti-corrosive appliance control cabinet, safe and reliable.The connect used aviation pipeline plug,water-proof, electricity-proof and dust-proof, safe and reliable.
3.
Filling accuracy can be adjusted by its own electronic scale, filling products only need to put on the electronic scale, filling error can be automatically modified by one button on the touch screen.High precision filling,simple operation.
3.
Filling accuracy can be adjusted by its own electronic scale, filling products only need to put on the electronic scale, filling error can be automatically modified by one button on the touch screen.High precision filling,simple operation.
|
Type
|
Head
|
Suitable bottles
|
Capacity(bottle/hour)
|
Precise
|
Size of Machine(mm)
|
Power(kW)
|
Power source
|
Air source
|
Note
|
|
YG-20F
|
20
|
Can be customized
|
500ml:≤4500
|
500-1000ml：±1ml
≤100m：≤1ml |
2400*1100*2200
|
1.5kw
|
220/380V
50/60Hz |
0.6MPa
|
Can be customized
|
|
YG-16F
|
16
|
|
500ml:≤3500
|
|
2000*1100*2200
|
1.5kw
|
|
|
|
|
YG-12F
|
12
|
|
500ml:≤2800
|
|
2000*1100*2200
|
1kw
|
|
|
|
|
YG-8F
|
8
|
|
500ml:≤1500
|
|
1800*1100*2200
|
1kw
|
|
|
|
|
YG-6F
|
6
|
|
500ml:≤1000
|
|
1600*1100*2200
|
1kw
|
|
|
|
NO.1
The machine is made of PP anti-corrosive material, and the surface of the machine is coated with anti-corrosive coating, suitable for all kinds of disinfectants , cleaning liquid and other corrosive liquids.
NO.2
Independent
electrical control cabinet.
The wires are connected with aviation plugs.
Water-proof,electricity-proof and dust proof,safe and reliable.
NO.3
The conveyor belt is made of anti-corrosion materials,and the filling nozzles are made of
Titanium alloy,it can prevent from liquid corrosion.
You can click on and view the video on the computer.
Jintan Sunshine Machinery Co., LTD was founded in 2001, which has more than 15 years experience in machinery manufacturing. It is located in West zone, No.33 building, FENGHUANGCHENG Industrial Park, Jintan District, Changzhou City, Jiangsu Province,China.We devote ourselves to the development, research and production of pesticide, chemical , Food, daily chemical packaging machinery. Our main products including: full automatic and semi automatic bottle unscrambler, filling, capping, and labeling machine, we also provide solution of whole production line for customer.All our products are sold well in more than 20 provinces and cities in china, we also exported to about thirty countries and areas with strong technical force, advanced equipment, scientific management system and perfect after-sales service.
Welcome to visit Sunshine Machinery, thank you!
1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, thetechnician of buyer could master the operation and maintenance, could adjustthe process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract.
4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.
After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.
Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.Contact our sales people you can get video of our reference running machine
Q2: Do you provide customized service
A2: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
Q3: What's your guarantee or the warranty of the quality if we buy your machines?
A3: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
