Quick Details
-
Dimensions(L*W*H):
-
4800mmX2200mmX2250mm
-
Weight:
-
5200 KG, 5200kg
-
Print Dimension:
-
850mm
-
Print Speed:
-
50m/min
-
Product name:
-
Paper cup flexo printing machine
-
Colors:
-
Multi Colors
-
Style:
-
Four Colors Flexo Printing Machine
-
Max. printing width (mm):
-
850mm
-
Printing speed:
-
50m-60m/min
-
Air press:
-
0.6MP
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Allraising
-
Voltage:
-
380V, 380V
-
Dimensions(L*W*H):
-
4800mmX2200mmX2250mm
-
Weight:
-
5200 KG, 5200kg
-
Print Dimension:
-
850mm
-
Print Speed:
-
50m/min
-
Product name:
-
Paper cup flexo printing machine
-
Colors:
-
Multi Colors
-
Style:
-
Four Colors Flexo Printing Machine
-
Max. printing width (mm):
-
850mm
-
Printing speed:
-
50m-60m/min
-
Air press:
-
0.6MP
-
Certification:
-
CE
Products Description

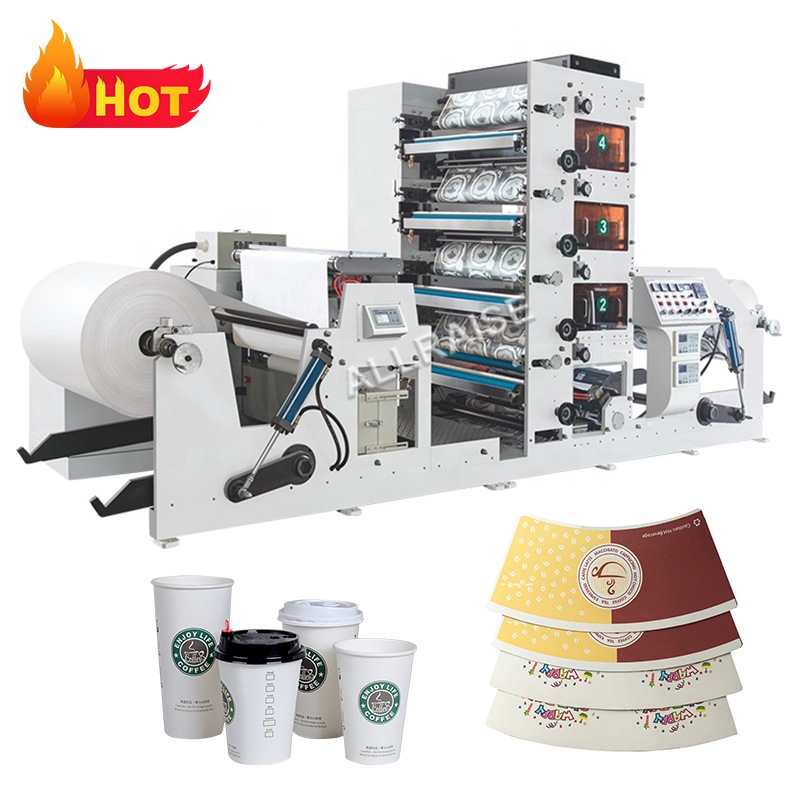

Automatic roll to roll 4 6 color flexographic printer paper cup fan bags
logo print flexo printing rewinding machine for cups
Product Introduction
This product is an upgraded flexo printing machine, it is suitable for paper, plastic film, aluminum foil, PVC, self-adhesive tape, carton weight board, micron board and other materials. It produces faster than other printing machines and has printing, glazing, infrared drying and rewinding capabilities.
|
Product Parameters
|
|
|
|
|
||||
|
Machine Model
|
|
RY850
|
|
|
||||
|
Printing speed
|
|
50m-60/min
|
|
|
||||
|
Printing color number
|
|
4 colors
|
|
|
||||
|
Maximum printing width
|
|
850mm
|
|
|
||||
|
Feed width
|
|
860mm
|
|
|
||||
|
Maximum unwinding diameter
|
|
1300mm
|
|
|
||||
|
Maximum winding diameter
|
|
1300mm
|
|
|
||||
|
Maximum printing size
|
|
175-380mm
|
|
|
||||
|
Overprint accuracy
|
|
±0.15mm
|
|
|
||||
|
Voltage
|
|
380 v + 10%
|
|
|
||||
|
Total power
|
|
40kW
|
|
|
||||
|
Total air pressure
|
|
0.6mp
|
|
|
||||
|
Button lubrication system
|
|
manual
|
|
|
||||
|
Weight
|
|
5000 kg
|
|
|
||||
|
Dimensions
|
|
4800mmX2050mmX2250mm
|
|
|
||||
|
Suitable Material
|
|
1. 10 Micron Film To 400 Micron Board
2. Plastic Film
3. Aluminium Foil
4. Tissue paper
5. Self adhesive paper
6. Vinyls/PVC
7. Carton weight board
|
|
|
||||
|
Standard accessories
|
|
|
|
Rectifying device
|
4 anilox roller
|
|
|
Main motor 4.0 KW
|
4 printing rollers
|
|
|
Receiving frequency conversion motor 7.5KW
|
4 pieces scraper
|
|
|
Magnetic powder brake 200N
|
4 the cartridge
|
|
|
Magnetic powder brake 50N
|
A tool box
|
|
|
Tension controller for winding and unwinding
|
Base pad 20
|
|
|
Frequency converter 4.0KW
|
Frequency converter 7.5KW
|
|
|
Collect, feeding a set of hydraulic system
|
|
|
Product Features
|
1.
|
Adopt the anilox roller to spread ink.
|
|
2.
|
Unwinding and rewinding are controolled by magnetic power brake, clutch,(or by automatic tension controller of mitsubishi made in
japan). |
|
3.
|
Each printing unit adopt 360"for registration.
|
|
4.
|
Each printing unit have one IR drier.
|
|
5.
|
The rubber roller can break away automatically while parking, and runningat a low speed, in order to avoid ink being dry.
|
|
6.
|
The main motor is adopted the import stepless, regulation of frequency conversion.
|
|
7.
|
Unwinding. web guiding. printing. IR drying. die cutting waste, rewinding.ng rewinding. can be finished in one process This is an ideal machine for printing factory to print many kinds of paper cup.
|
