Quick Details
-
Engine Type:
-
6BTAA5.9-C150
-
Rated Power:
-
112kW
-
Max. Engine Torque:
-
670 N*m /(1400r/min)
-
The biggest drag/feed back:
-
200/200 kN
-
Power head rotary speed:
-
6300 N*m
-
Drill Diameter:
-
60mm
-
Drill Length (single):
-
3m
-
Drill Adjustment angle:
-
10~22°
-
Mud pump type:
-
200/250L/min,Hydraulic drive
-
Dimension:
-
5900*2250*2400mm
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XUGONG
-
Model Number:
-
XZ200
-
Engine Type:
-
6BTAA5.9-C150
-
Rated Power:
-
112kW
-
Max. Engine Torque:
-
670 N*m /(1400r/min)
-
The biggest drag/feed back:
-
200/200 kN
-
Power head rotary speed:
-
6300 N*m
-
Drill Diameter:
-
60mm
-
Drill Length (single):
-
3m
-
Drill Adjustment angle:
-
10~22°
-
Mud pump type:
-
200/250L/min,Hydraulic drive
-
Dimension:
-
5900*2250*2400mm

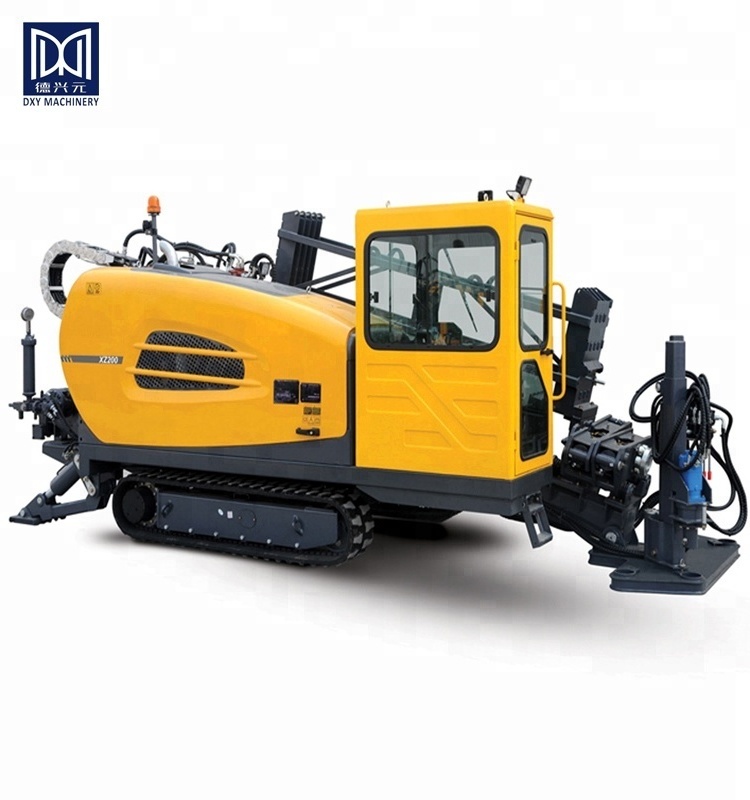

Horizontal Directional Drill Machine XZ200
XZ200 Horizontal directional drilling structure compact, high performance, full-featured, Hydraulic pilot control, sliding rack and pinion, the main performance parameters and control technology has reached the international advanced level. Hydraulic systems, power systems, running system, and the main components are made of domestic first-class brand products, good performance, good reliability.
|
Thrust-Pull
|
Max Thrust-Pull Force
|
kN
|
225
|
|
Max Thrust-Pull Speed
|
m/min
|
26
|
|
|
Rotation
|
Torque
|
N.m
|
6350
|
|
Max Spindle Speed
|
r/min
|
160
|
|
|
Mud Pump
|
Max Flow Rate
|
L/min
|
250
|
|
Max Pressure
|
Mpa
|
8
|
|
|
Pipe
|
mm*m
|
73*3
|
|
|
Max Inclination Angle
|
0
|
22
|
|
|
Max backreamer diameter
|
mm
|
600
|
|
|
Weight
|
t
|
8.5
|
|
|
Dimention
|
mm
|
5900x2020x2400
|
|
|
Optional
|
1. Cab
2. Air-condition 3. Full-automatic pipeloader 4. Single automatic anchor 5. Dual automatic anchor 6. Mud antifreeze 7. Automatic thread oil daub 8. Piston pump hydraulic system 9. Semi-automatic pipeloader 10. Mud cleaning |
||
|
|
|
