Quick Details
-
Application:
-
garage, warehouse, factory
-
Design Style:
-
Modern
-
Place of Origin:
-
China
-
Brand Name:
-
HS
-
Model Number:
-
GD-01
-
Product name:
-
Sectional Industrial Door
-
Material:
-
Galvanize steel, Aluminum, Stainless steel
-
Color:
-
Customized
-
Panel Thickness:
-
40mm,42mm,50mm,60mm,75mm,80mm,40+65mm,50+65mm,50+95mm
-
Height:
-
435mm, 485mm, 535mm
-
Width:
-
Maximum 6500mm
-
Control:
-
Automatic with remote cotroled
-
Handware:
-
With all handware
-
Open Style:
-
Automatic
Quick Details
-
Door Material:
-
Steel
-
Feature:
-
Thermal Insulation
-
Main Material:
-
Polymer
-
Application:
-
garage, warehouse, factory
-
Design Style:
-
Modern
-
Place of Origin:
-
China
-
Brand Name:
-
HS
-
Model Number:
-
GD-01
-
Product name:
-
Sectional Industrial Door
-
Material:
-
Galvanize steel, Aluminum, Stainless steel
-
Color:
-
Customized
-
Panel Thickness:
-
40mm,42mm,50mm,60mm,75mm,80mm,40+65mm,50+65mm,50+95mm
-
Height:
-
435mm, 485mm, 535mm
-
Width:
-
Maximum 6500mm
-
Control:
-
Automatic with remote cotroled
-
Handware:
-
With all handware
-
Open Style:
-
Automatic
Products Description
|
Material options
|
1. 304 STAINLESS STEEL 0.326mm or 0.426mm
2. Steel material door panel with polyethene foam filled
3. Galvanized steel tracks and accessories, customizable colors
|
|
Door panel height
|
450mm、500mm、 550mm
|
|
Normal Color
|
White, black, silver gray, dark gray, sky blue, fire blue, yellow, red, gold oak, black walnut, with a large quantity and customizable colors
|
|
Rail & Fitting
|
Hot dip galvanized steel rail and galvanized bracket & hinges.
Aluminum powder coated 2.8mm thick rail is also optional. |
|
Sealing
|
With full sealed, weather resistance & well protection & soundproof.
|
|
Control
|
Automatic & remote controlled.
Power rate: 110V/220V/380V |
|
Feature for door motorized system
|
Route memorable, door self locking when power cut off, self-checking up, non hand nipping, safety operation.
|
Product details
Details Images
Side hung motor
|
MODEL
|
600N
|
800N
|
1000N
|
1200N
|
|||
|
Voltage range/rated frequency
|
220~240V AC, 50/60HZ
|
|
|
|
|||
|
Rated power
|
200W
|
235W
|
245W
|
260W
|
|||
|
Maximum lifting force
|
600N
|
800N
|
1000N
|
1200N
|
|||
|
Door opening speed
|
180mm/s
|
|
|
|
|||
|
Lamp type
|
LED
|
|
|
|
|||
|
Lighting time
|
3 minutes
|
|
|
|
|||
|
Coding type
|
Rolling code
|
|
|
|
|||
|
Radio frequency
|
433.92 MHZ or other requirements
|
|
|
|
|||
|
Ambient temperature
|
-20°C~+40°C
|
|
|
|
|||
|
Relative humidity
|
<90%
|
|
|
|
|||
|
Applicable door area
|
10m²
|
12m²
|
14m²
|
16m²
|
|||

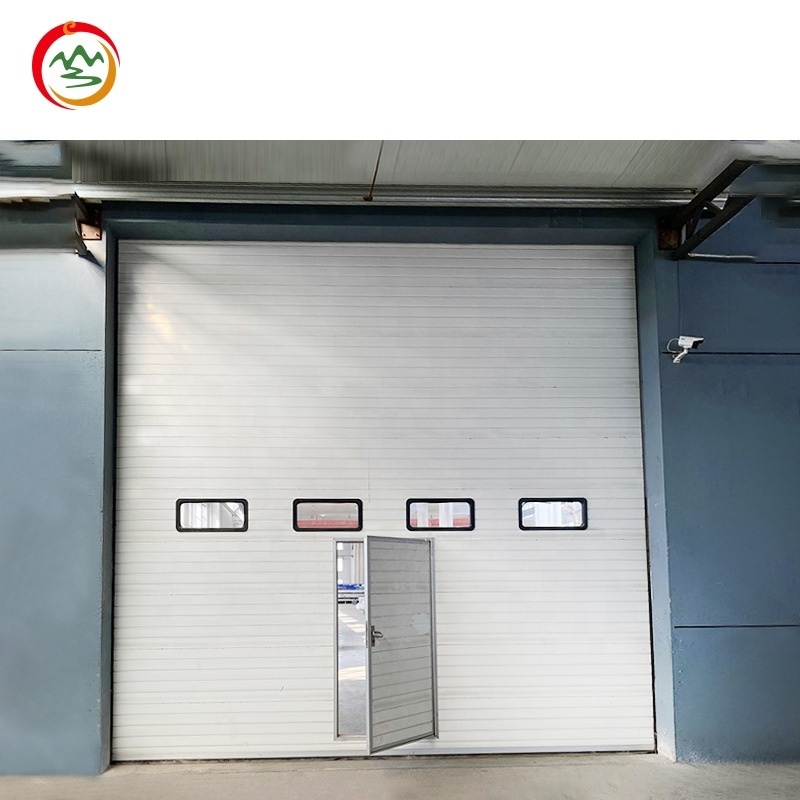

Industrial
Overhead
Doors
Industrial
Overhead
doors are lifted by multiple blocks, spring balance system, motor drive, with high degree of durability, wind pressure resistance and good heat preservation performance, durable, easy to operate, safe and optional. It is suitable for high-end factories, warehouses and buildings with large door and roof space. Compared with other types of doors, industrial sliding doors have different requirements for heat insulation, sound insulation, heat preservation, sealing, rust prevention, color, daylighting, fire protection, working mode, and automation. They have higher quality requirements and safety precautions. More stringent requirements. Sound insulation: K=0.4-0.5W/㎡C, heat insulation: RM value=26.5Dba, door panel adopts electrostatic powder spraying process, which is characterized by strong durability, anti-aging, anti-corrosion, non-fading, easy maintenance, and long-lasting as new . The thickness is from 40mm to 100mm, depending on the customer's requirements for edge functions. Control method: remote control, button, geomagnetism, radar, etc.
