Quick Details
-
Model Number:
-
LT1530D
-
Voltage:
-
220v
-
Weight (KG):
-
340 KG
-
Year:
-
2022
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Cutting method:
-
Plasma
-
Cutting material:
-
All metal sheet
-
Cutting size:
-
1500*3000mm
-
Lifting travel:
-
≤130mm
-
Max travel speed:
-
10000mm/min
-
Running accuracy:
-
≤0.03mm
-
Height control:
-
Arc voltage Auto THC /Lifting body
-
Plasma cutting thickness:
-
according to plasma cutter /6-200mm
Quick Details
-
Dimensions:
-
3550*2500mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BOB
-
Model Number:
-
LT1530D
-
Voltage:
-
220v
-
Weight (KG):
-
340 KG
-
Year:
-
2022
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Cutting method:
-
Plasma
-
Cutting material:
-
All metal sheet
-
Cutting size:
-
1500*3000mm
-
Lifting travel:
-
≤130mm
-
Max travel speed:
-
10000mm/min
-
Running accuracy:
-
≤0.03mm
-
Height control:
-
Arc voltage Auto THC /Lifting body
-
Plasma cutting thickness:
-
according to plasma cutter /6-200mm
|

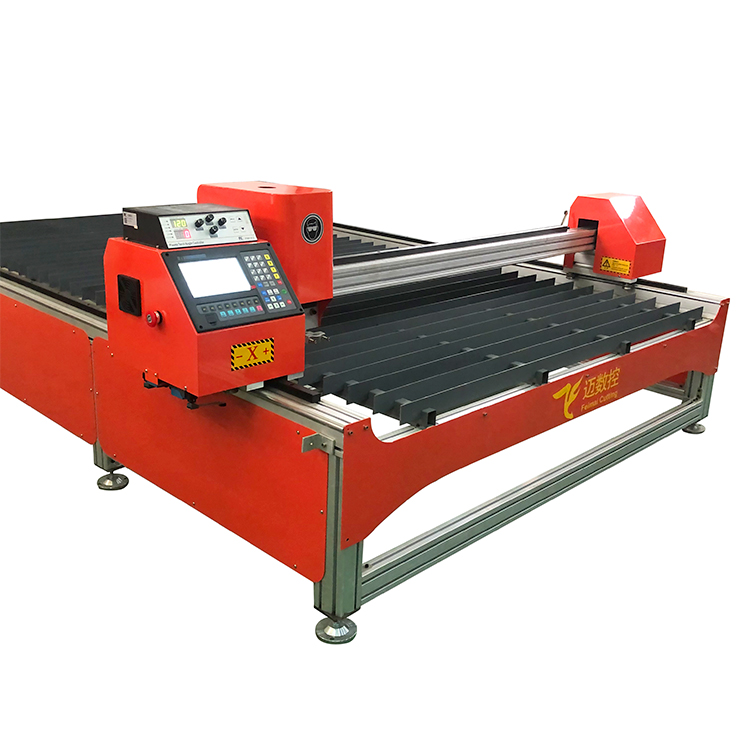

MODEL
|
FX-LT1530D
|
|
|
|
BASIC
INFORMATION
|
Cutting method
|
Plasma
|
|
|
|
Machine size
|
3550*2500mm
|
|
|
|
Cutting material
|
All metal sheet
|
|
|
|
Cutting size
|
1500*3000mm
|
|
|
|
Cutting thickness
|
According to Plasma source
|
|
|
|
Lifting travel
|
≤130mm
|
|
|
|
Max travel speed
|
10000mm/min
|
|
|
|
Running accuracy
|
≤0.03mm
|
|
|
CONFIGURATION
LIST
|
CNC controller
|
Fangling F2100B
|
|
|
|
Remote control
|
Yes
|
|
|
|
Auto Height control
|
F1621 THC
|
|
|
|
Motor drive mode
|
Stepper motor
|
|
|
|
Drive system
|
Dual drive
|
|
|
|
Reducer
|
X axis: Gear box Y axis: Direct drive
|
|
|
|
Transmission method
|
Rack and pinion drive
|
|
|
|
Linear guide
|
Linear axis
|
|
|
|
X,Y Axis beam
|
Heavy duty aviation aluminum-alloy
|
|
|
EXTERNAL SUPPLY
|
Voltage
|
220V(Plasma Power source is 380V)
|
|
|
|
Cutting gas
|
Compressed air
|
|
|
|
Gas pressure
|
0.4-0.7MPa
|
|
|
SOFTWARE
|
Graphic import method
|
USB
|
|
|
|
Programming software
|
AutoCAD(all dxf,dwg,CAM,NC files)
|
|
|
|
Nesting software
|
FastCAM
|
|
|
ACCESSORIES
|
Torch
|
One set of Plasma torch
|
|
|
|
Consumables
|
10 sets of nozzles (need to order power source)
|
|
|
PACKING INFORMATION
|
Dimension
|
3550*650*760mm+power source
|
|
|
|
Weight
|
280kgs
|
|
Q1: I knew nothing about this machine, what kind of machine I should choose?
Very easy to choose. Just tell us what you want to do by using laser machine or plasma machine, then let us give you perfect solutions and suggestions.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or whatsapp and e-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. So any doubts, just let us know, we will give you solutions.
Q4: Before sending me an inquiry on our plasma, it is better for you to provide me the following information?
Your cutting size. Because in our factory, we have different models according to working area.Your materials: Carbon steel, stainless steel , aluminum, or other materails.
Q5:
what’s your cutting thickness?
We will recommend suitable machine to you according to your cutting thickness.
