Quick Details
-
Power (kW):
-
2.5
-
Range of Spindle Speed(r.p.m):
-
2840 - 5200 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YW
-
Voltage:
-
220v or 380v
-
Dimension(L*W*H):
-
520*218*385MM
-
Weight (KG):
-
33 KG
-
Name:
-
molinos granos pulverizer
-
Cooling:
-
water or air
-
screen size:
-
0.3-1.5mm
-
motor:
-
copper coil
-
hammers:
-
6
-
diameter of crushing chamber:
-
170mm and 180mm
-
Function:
-
Make Dry Powder
Quick Details
-
Output (kg/h):
-
1 - 60 kg/h
-
Feeding Size (mm):
-
1 - 100 mm
-
Output Size (mesh):
-
60 - 300 mesh
-
Power (kW):
-
2.5
-
Range of Spindle Speed(r.p.m):
-
2840 - 5200 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YW
-
Voltage:
-
220v or 380v
-
Dimension(L*W*H):
-
520*218*385MM
-
Weight (KG):
-
33 KG
-
Name:
-
molinos granos pulverizer
-
Cooling:
-
water or air
-
screen size:
-
0.3-1.5mm
-
motor:
-
copper coil
-
hammers:
-
6
-
diameter of crushing chamber:
-
170mm and 180mm
-
Function:
-
Make Dry Powder
grinding machine grain mill crusher spice smasher molinos granos spice grinder pulverizer
Features of :

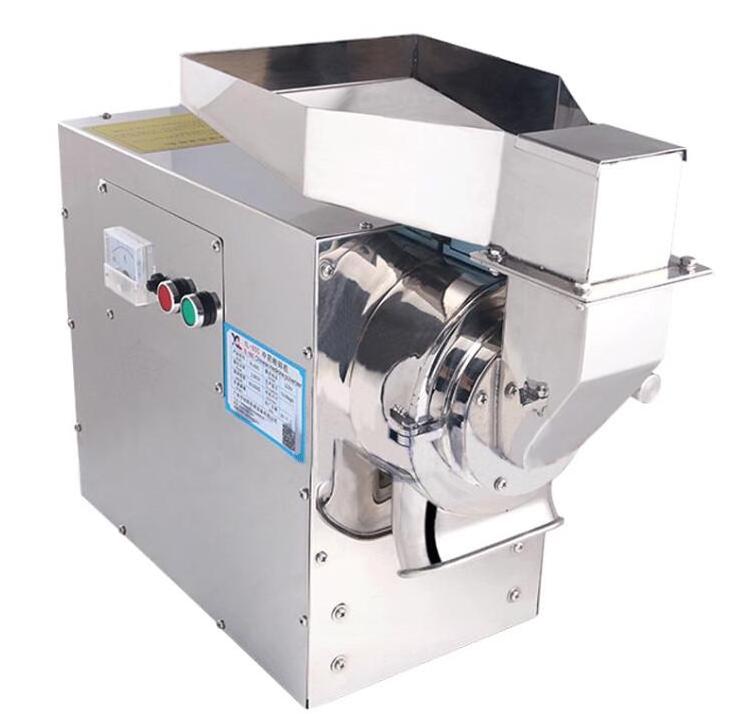

The Water-cooled continuous feeding mill crushing powder machine is an professional and ideal machine to grinding and milling different kinds of dry food, other different kinds of seasonings. The crusher cavity and the door cover are hollow, respectively with water inlet and outlet. The cold water or the cooling liquid flow into the machine. The cooling liquid circulate in the machine cavity and then flow out the machine, so that it will greatly reduce the temperature of the crushing cavity to provide a crushing environment with low temperature.
Product advantages:
1.The water cooling crusher has the advantages of low grinding temperature, low noise, high efficiency and high grinding fineness. It is suitable for crushing chemical materials, various Chinese herbal medicines, food seasonings, etc..
2. The screen mesh can be replaced with different aperture screen to adjust the powder thickness.
|
Model |
YW-8220 |
YW-8220S |
YW-8330 |
YW-8330S |
|
Qty of hammers |
6 |
6 |
6 |
6 |
|
Cooling type |
air |
water |
air |
water |
|
Power |
2500w |
2800w |
2800w |
3000w |
|
Rotating speed |
2840r/m |
2840r/m |
5200r/m |
5200r/m |
|
Mesh |
60-300mesh |
60-300mesh |
60-300mesh |
60-300mesh |
|
Capacity |
1-30kg |
1-40kg |
10-50kg |
10-60kg |
|
Weight |
33kg |
60kg |
52kg |
65kg |
|
Diameter of crushing chamber |
170mm |
170mm |
180mm |
180mm |
|
Outlet size |
140*72 |
140*72 |
164*61 |
164*61 |
|
Machine size mm |
520*218*385 |
570*270*670 |
600*240*570 |
450*270*690 |
