Quick Details
-
Hose Inner Diameter:
-
80 mm
-
Place of Origin:
-
henan
-
Brand Name:
-
TXJS
-
Voltage:
-
3phase,380V,50Hz
-
Power:
-
55
-
Dimension(L*W*H):
-
8500*2800*3400
-
Weight:
-
16500 kg
-
Application:
-
tunnels , railway and highway
-
style:
-
long-distance and high altitude
Quick Details
-
Marketing Type:
-
Hot Product 2021
-
Max. Conveying Distance:
-
100m
-
Max Aggregate Size:
-
20mm
-
Hose Inner Diameter:
-
80 mm
-
Place of Origin:
-
henan
-
Brand Name:
-
TXJS
-
Voltage:
-
3phase,380V,50Hz
-
Power:
-
55
-
Dimension(L*W*H):
-
8500*2800*3400
-
Weight:
-
16500 kg
-
Application:
-
tunnels , railway and highway
-
style:
-
long-distance and high altitude
Product Description

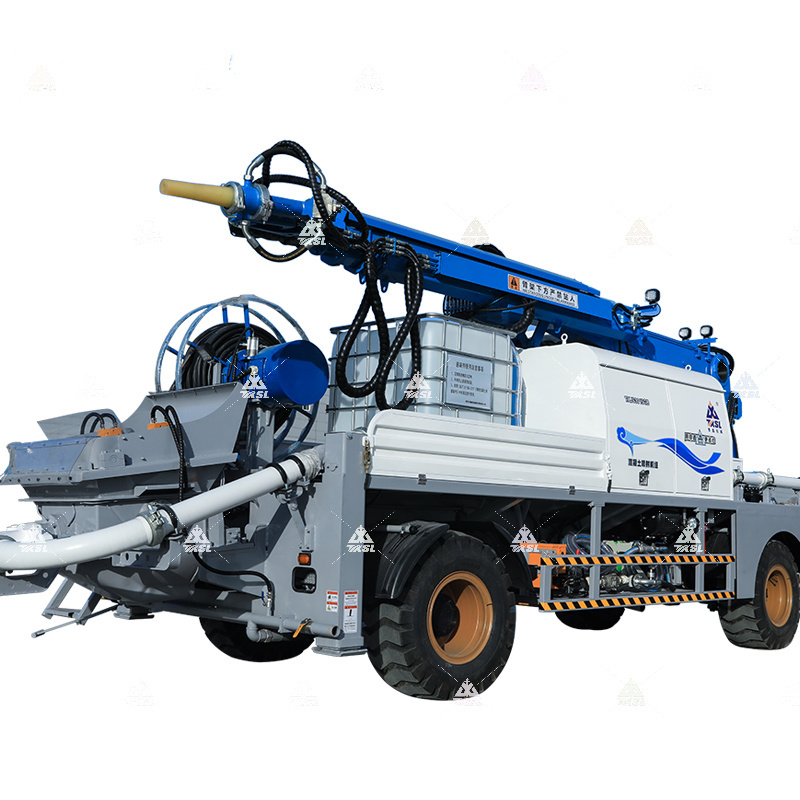

Concrete Spraying Manipulator
Concrete spraying unit (also called two-arm wet spraying manipulator) is a concrete spraying equipment specially designed for tunnel construction in high altitude areas.
Product Paramenters
|
Item
|
|
Unit
|
TX3015A7
|
TX3015B9
|
TX3015B10
|
TX3015B11
|
|
|
Machine parameters
|
Total weight
|
kg
|
13800
|
13890
|
13950
|
13500
|
|
|
|
L×W×H
|
mm
|
8100x2500x3120
|
8100x2500x3120
|
8100x2500x3120
|
8100x2500x3120
|
|
|
|
Engine power
|
kw
|
88
|
88
|
88
|
88
|
|
|
Pumping system parameters
|
Hopper capacity
|
m³
|
0.3
|
0.3
|
0.3
|
0.3
|
|
|
|
Conveying cylinder bore diameter
|
mm
|
Φ180
|
Φ180
|
Φ180
|
Φ180
|
|
|
|
Theoretical maximum outlet pressure
|
MPa
|
6.5
|
6.5
|
6.5
|
6.5
|
|
|
|
Conveying cylinder stroke
|
mm
|
1000
|
1000
|
1000
|
1000
|
|
|
|
Feeding height
|
mm
|
1550
|
1550
|
1550
|
1550
|
|
|
Electronic control system
|
Total power
|
kw
|
37+30
|
37+30
|
37+30
|
37+30
|
|
|
|
Power
|
V
|
380
|
380
|
380
|
380
|
|
|
|
Effective remote control distance
|
m
|
100
|
100
|
100
|
100
|
|
|
|
Cable length
|
m
|
100
|
100
|
100
|
100
|
|
