Quick Details
-
Brand Name:
-
ZINGEAR/ Unionwell
-
Model Number:
-
G303-130P00A3B
-
Max. Current:
-
0.1/3(A)
-
Operating Temperature:
-
-40℃+ 85℃
-
Protection Level:
-
IP67
-
Rating:
-
0. 1A, 125/250VAC; 3A/12VDC;0. 1A/48VDC
-
Mechanical Operating Frequency:
-
120 Cycles/minute
-
Electrical Operating Frequency:
-
0. 1A-120 cycles/minute
-
Insulation Resistance:
-
100m - Min
-
Contact Resistance:
-
100m - Max
-
Electrical Life:
-
Min. 100, 000 cycles
-
Mechanical Life:
-
Min. 500, 000 cycles
-
Application:
-
Automotive Electronics, Appliance and Industrial Control Designs
-
Product Name:
-
Small Miniature Motocycle Automotive Micro Switches
-
Certification:
-
ULcUL, ENEC, CQC
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
125/250(V)
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZINGEAR/ Unionwell
-
Model Number:
-
G303-130P00A3B
-
Max. Current:
-
0.1/3(A)
-
Operating Temperature:
-
-40℃+ 85℃
-
Protection Level:
-
IP67
-
Rating:
-
0. 1A, 125/250VAC; 3A/12VDC;0. 1A/48VDC
-
Mechanical Operating Frequency:
-
120 Cycles/minute
-
Electrical Operating Frequency:
-
0. 1A-120 cycles/minute
-
Insulation Resistance:
-
100m - Min
-
Contact Resistance:
-
100m - Max
-
Electrical Life:
-
Min. 100, 000 cycles
-
Mechanical Life:
-
Min. 500, 000 cycles
-
Application:
-
Automotive Electronics, Appliance and Industrial Control Designs
-
Product Name:
-
Small Miniature Motocycle Automotive Micro Switches
-
Certification:
-
ULcUL, ENEC, CQC
Our Advantages
1. Zing Ear factory with high standard in product quality control;
2. ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc certification.
3. Custom service and Low MOQ
4. One-stop Service for Customers
5. Prodcut testing
in our laboratory according to your requirement.
6. Fast quote and providing the free samples, datasheet, 3D file to help you at the beginning project
assessment.
Products Description
|
Rating
|
0. 1A, 125/250VAC; 3A/12VDC;
0. 1A/48VDC ;U1E5
|
|
Operating Frequency
|
Electrical: 0. 1A-120 cycles/minute; 3A-10~30 cycles/minute
|
|
Operating Frequency
|
Mechanical: 120 Cycles/minute
|
|
Service Life
|
Electrical: Min. 100, 000 cycles(Depend on part NO.)
|
|
Service Life
|
Mechanical: Min. 500, 000 cycles
|
|
Contact Resistance(Initiative)
|
100m Ω Max (without wire type)
|
|
Insulation Resistance (at500VDC)
|
100m Ω Min
|
|
Vibration Durability
|
10~55Hz,move 0. 75mm (p-p)
|
|
Dielectric Strength
|
500VAC (50~60Hz)
|
|
Temperature
|
-40°C ~ + 85°C
|
|
Storage Humidity
|
85% RHMax
|
G303 Micro Switch Features
- Water and dust proof function with IP67 protection
- Smal compact size and sealed
construction
- Global Safety Approvals
- Long Life and High Reliability
- Variety of Levers
- Long Life and High Reliability
- Variety of Levers
- Wide range of wiring and terminals for options
- Widely used in Automotive Electronics, Appliance and Industrial Control Designs
- Widely used in Automotive Electronics, Appliance and Industrial Control Designs

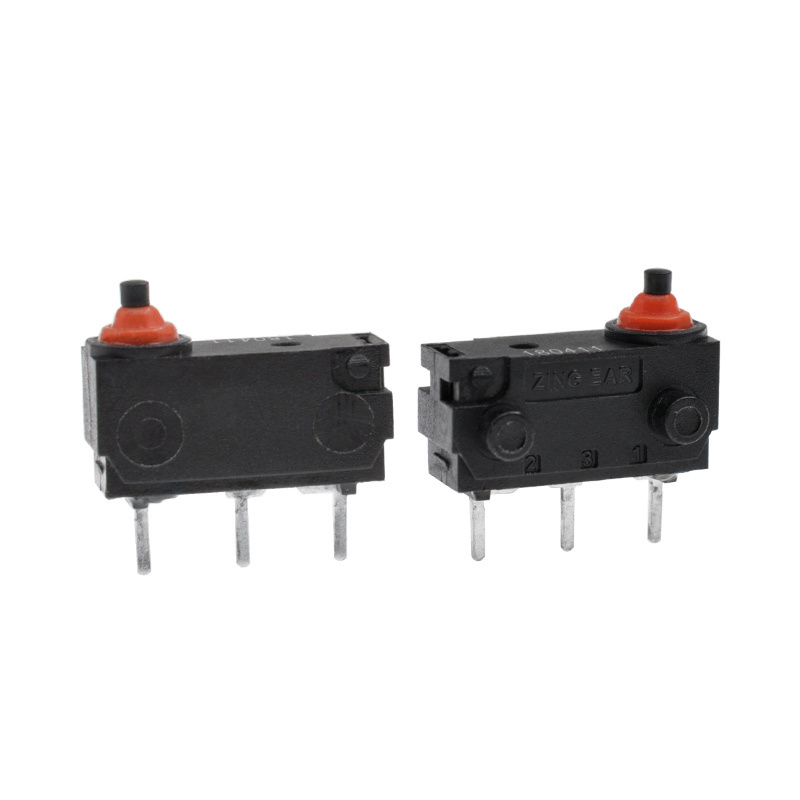

G303-130P00A3B
Display
G303 P
arameters
Ordering Introduction
Application
Car electric doors and windows
Car electric pedal
Car electric tail door lock
Car intelligent electric tailgate
Car electric trunk door lock
Car tilt door lock
Car trunk lock
Car side door lock
Car door lock accessories
Car central lock
Car door lock hood
Car charging gun
Car charging pile
Car turn signal
factory reset
Car control panel
Automotive Electronic Shifter
Car latch
Car seat belt
Car window shaker
Car brake pads
Car main control board
Car hood lock accessories
Car conveyor
Light Bus Control
Truck headlight control module
Truck door lock
Off-road truck light control
Truck Central Lock
Mobike Smart Bike Lock
Bus headlight control assembly
Shared umbrella
Shared device
Shared kitchen cabinet
Shared bicycle lock pile
GPS Bicycle Lock
G306 IP67 waterproof smart parking lock
GPS Smart Lock
Bicycle alarm
G304 Vending Machine
Car airbag Auto Suction Door Car electric suction door
G304 ventilator (without cord)
G304 solenoid valve (without wire)
3D printer
Massage chair
Electric screwdriver
electric screw driver
electrical tools
Electric vehicle controller
electric toothbrush
Electric vehicle anti-theft door lock
Electric drying rack
Electric controller
Electric vehicle DC charger
Electric car charging gun
New energy car charging gun
Scanning instrument
Handheld barcode scanner
Charging gun
Charging port cover
Charge empty seat
Charging conversion plug
Household appliances
vacuum cleaner
heater
Water dispenser
Heating wall breaking machine
Photocopier
