Quick Details
-
Place of Origin:
-
Guangdong, China
Quick Details
-
Brand Name:
-
Taidacent
-
Model Number:
-
KD21-2
-
Type:
-
switch push button
-
Place of Origin:
-
Guangdong, China
Taidacent 8 Pin 250V AC 3A Led illuminated Push Button Switch Power Arcade Square Button Latch KD2-21 KD2 Push Button Switch
Product Description
Product specifications with light and lock 8 feet
Rated current 3A
Hole size 17×17mm
Rated voltage 250VAC
Product color red/green
Contact form 2 open 2 closed
Specification
|
1
|
This button switch has self-locking, no lock, with and without lights, etc.
|
|
2
|
3A 250VAC, 6A 150VAC, when the lamp is on, the voltage of the lamp is DC3V
|
|
3
|
Button colors: red, green, yellow, white, black
|

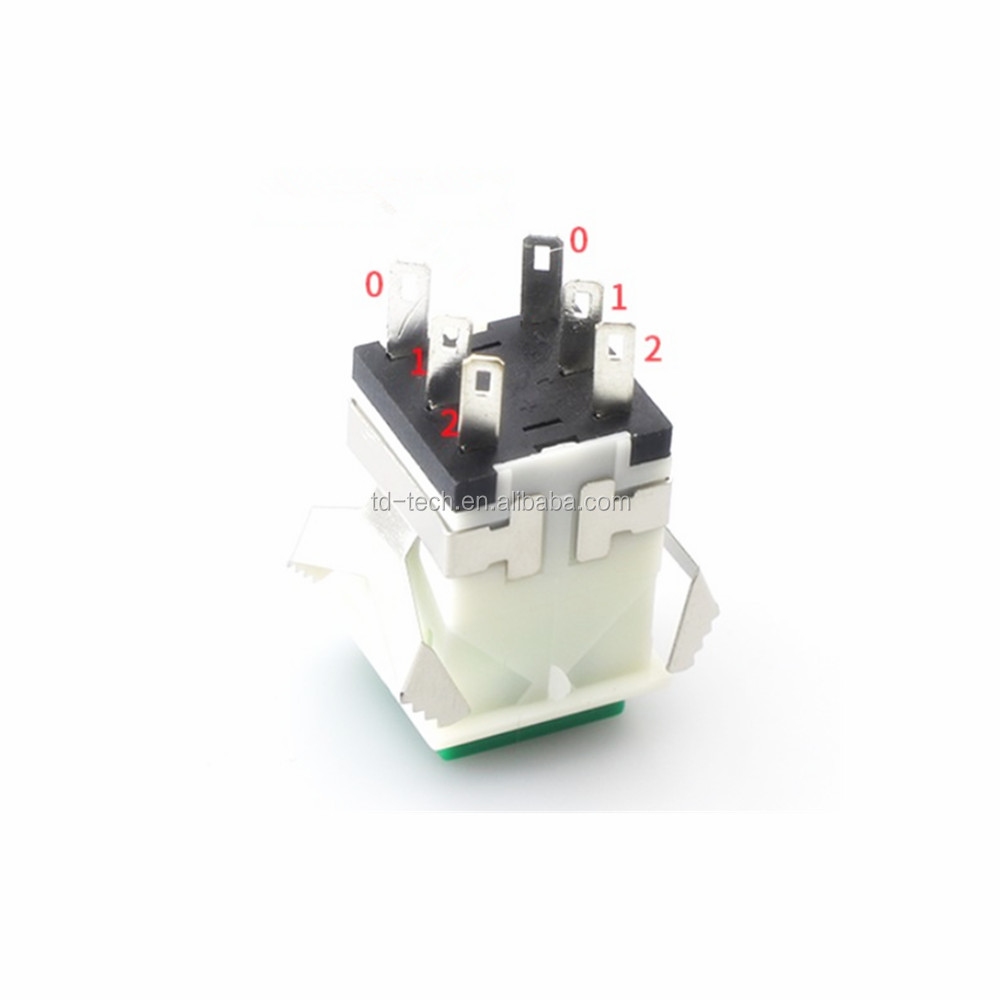

Pin connector
pin "0" is a common point,
pin "1" is a normally closed point
pin "2" is a normally open point
"+" "" feet are lamp feet
