Quick Details
-
Brand Name:
-
LTMG
-
Fork Length:
-
1070mm, 1070mm/ 1220mm/1520mm
-
Fork Width:
-
125mm
-
Overall Dimensions:
-
2705*1225*2075mm
-
Weight (KG):
-
3790 kg
-
Load Center:
-
500mm
-
Color:
-
Customized available
-
Mast:
-
2 Stage/3 Stage
-
optional attachments:
-
paper roll clamp, bale clamp, rock clamp,etc
-
Type:
-
pneumatic or solid
-
Wheelbase:
-
1700mm
-
Engine:
-
Chinese / japanese/EPA
-
Optional:
-
side shift, 3-7m height, close cab, AC,etc
-
fork length:
-
1070/1220/1370/1520mm ect.optional
Quick Details
-
Min. Lifting Height:
-
3000mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
LTMG
-
Fork Length:
-
1070mm, 1070mm/ 1220mm/1520mm
-
Fork Width:
-
125mm
-
Overall Dimensions:
-
2705*1225*2075mm
-
Weight (KG):
-
3790 kg
-
Load Center:
-
500mm
-
Color:
-
Customized available
-
Mast:
-
2 Stage/3 Stage
-
optional attachments:
-
paper roll clamp, bale clamp, rock clamp,etc
-
Type:
-
pneumatic or solid
-
Wheelbase:
-
1700mm
-
Engine:
-
Chinese / japanese/EPA
-
Optional:
-
side shift, 3-7m height, close cab, AC,etc
-
fork length:
-
1070/1220/1370/1520mm ect.optional

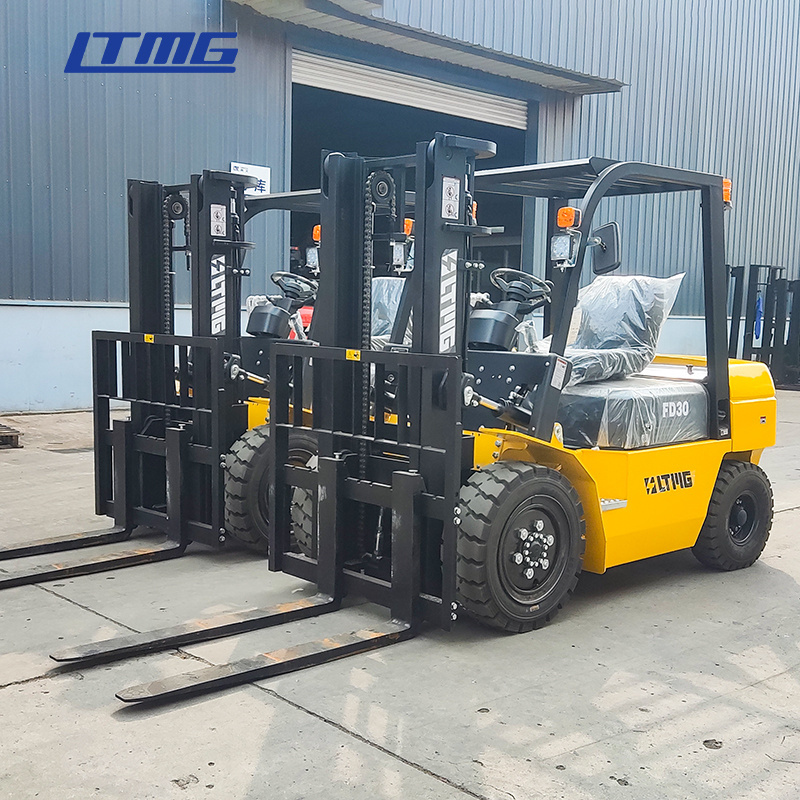

2 ton 2.5Ton Diesel Forklift
3Ton Diesel Forklift
3.5 Ton Diesel Forklift with 3 stage full free container mast
Standard Configuration:
》Hydraulic Automatic Transmission.
》Shimadzu Pump Valve, Eaton Pipe and NOK Hydraulic Cylinder Seals.
》Electric-hydraulic Directional Control Valve.
》The Casting-type Steering Axle which more than 8 years of service life than ordinary Welded Axle.
》The Maintenance Free Radiators adopt Germany Technology.
》Adopt Priority Steering System, which improve the work efficiency.
》Original Toyota Comfortable Seat with Armrest and Safe-belt, LED Light ect.
》Thicker reinforcing overhead guard protective device, ensure the safety.
》Middle muffler, more environmental.
》Hydraulic Automatic Transmission.
》Shimadzu Pump Valve, Eaton Pipe and NOK Hydraulic Cylinder Seals.
》Electric-hydraulic Directional Control Valve.
》The Casting-type Steering Axle which more than 8 years of service life than ordinary Welded Axle.
》The Maintenance Free Radiators adopt Germany Technology.
》Adopt Priority Steering System, which improve the work efficiency.
》Original Toyota Comfortable Seat with Armrest and Safe-belt, LED Light ect.
》Thicker reinforcing overhead guard protective device, ensure the safety.
》Middle muffler, more environmental.
|
Model
|
|
FD15
|
FD18
|
FD20
|
FD25
|
FD30
|
|
|
Load Centre
|
|
500mm
|
500mm
|
500mm
|
500mm
|
500mm
|
|
|
Load capacity
|
|
1500kg
|
1800kg
|
2000kg
|
2500kg
|
3000kg
|
|
|
Mast
|
|
2-stage-mast
|
2-stage-mast
|
2-stage-mast
|
2-stage-mast
|
2-stage-mast
|
|
|
Fork size
|
|
920×120×35
|
920×120×35
|
1070×120×40
|
1070×120×40
|
1070×125×45
|
|
|
Engine
|
|
ISUZU
|
ISUZU
|
ISUZU
|
ISUZU
|
ISUZU
|
|
|
Tire
|
Front
|
6.50-10-12PR
|
6.50-10-12PR
|
7.00-12-12PR
|
7.00-12-12PR
|
28×9-15-12PR
|
|
|
|
Rear
|
5.00-8-10PR
|
5.00-8-10PR
|
6.00-9-10PR
|
6.00-9-10PR
|
6.50-10-10PR
|
|
|
Length to face of fork
|
|
2285mm
|
2285mm
|
2595mm
|
2595mm
|
2730mm
|
|
|
Overall Width
|
|
1086mm
|
1086mm
|
1150mm
|
1150mm
|
1225mm
|
|
|
Overhead Guard Height
|
|
2040mm
|
2040mm
|
2070mm
|
2070mm
|
2090mm
|
|
OEM/ODM
Optional Attachment
Optional Configuration
Shipping Plan
Factory Introduction
Certificate
Hot Products
Customer Feedback
FAQ:
Q1: How long is the Warranty
small forklift?
A1: LTMG provides one year or 2000 working hours,whichever occurs first. If need to extend the warranty period also available.
Q2: How about the delivery time 1.5ton forklift?
A2: For some standard products, we may have stock and could delivery immediately. I f there is no stock, usually LTMG forklift producing time is 20 working days from the date advanced payment received.
Q3: Can LTMG provide customized products? OEM products or ODM products?
A4: Yes, LTMG can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products.
Q4: Could we request our own color mini forklift?
A6: Yes, of course, you just need to offer us the RAL code.
A1: LTMG provides one year or 2000 working hours,whichever occurs first. If need to extend the warranty period also available.
Q2: How about the delivery time 1.5ton forklift?
A2: For some standard products, we may have stock and could delivery immediately. I f there is no stock, usually LTMG forklift producing time is 20 working days from the date advanced payment received.
Q3: Can LTMG provide customized products? OEM products or ODM products?
A4: Yes, LTMG can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products.
Q4: Could we request our own color mini forklift?
A6: Yes, of course, you just need to offer us the RAL code.
