Quick Details
-
Power:
-
750
-
Weight:
-
40 KG
-
Dimension(L*W*H):
-
450*550*750mm
-
Marketing Type:
-
Operate easily
-
Product name:
-
Rotary Valve
-
Application:
-
Food Flour Grinding Mill Machine
-
Raw material:
-
Wheat Maize Corn Soybean Sorghum
-
Name:
-
Airlock Rotary Valve
-
Function:
-
Multifunction Grain Flour Processing
-
Usage:
-
Rotating conveying
-
Type:
-
Grain Flour Grinder Machine
-
Final products:
-
Fine Flour
-
After-sales Service Provided:
-
1 Year
-
Keywords:
-
Electric Grain Mill
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Mugworthe mech
-
Voltage:
-
220V/380V
-
Power:
-
750
-
Weight:
-
40 KG
-
Dimension(L*W*H):
-
450*550*750mm
-
Marketing Type:
-
Operate easily
-
Product name:
-
Rotary Valve
-
Application:
-
Food Flour Grinding Mill Machine
-
Raw material:
-
Wheat Maize Corn Soybean Sorghum
-
Name:
-
Airlock Rotary Valve
-
Function:
-
Multifunction Grain Flour Processing
-
Usage:
-
Rotating conveying
-
Type:
-
Grain Flour Grinder Machine
-
Final products:
-
Fine Flour
-
After-sales Service Provided:
-
1 Year
-
Keywords:
-
Electric Grain Mill
Product Description
Specification

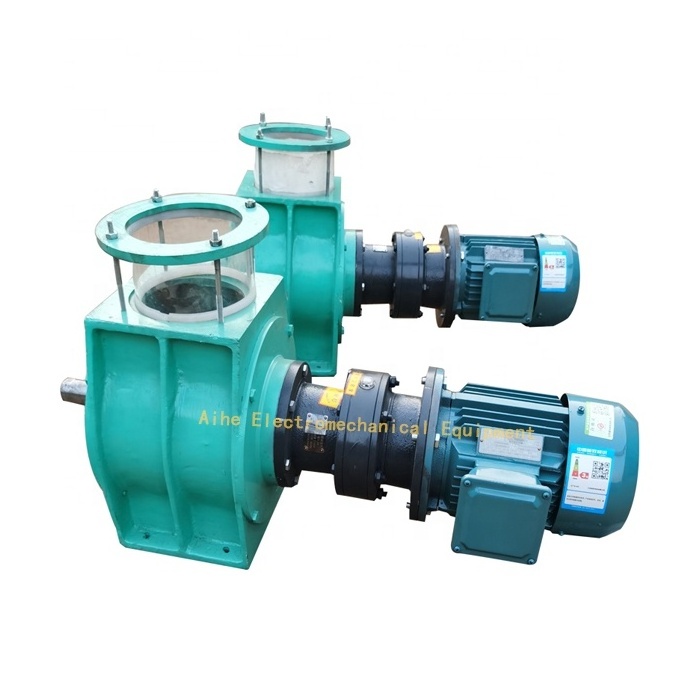

Hot Sale Customized Airlock Valve rotary Feeder Discharging Device For Dust Removal
Rotary valve also known as rotary air lock valve, unloading valve, rotary feeder.It is commonly used as part of bulk or granular material handling systems.Rotary valves are mainly used to discharge bulk materials hoppers/boxes and cyclone to pneumatic conveying systems driven by pressure or vacuum.The airlock valve machine widely used in environmental protection company , metallurgy, chemical industry,cement industry, grain, drying equipment and so on.Rotary valve components include rotor shaft, body, seal and bearing.Rotor with large impeller casting or welding, beautiful shape,compact structure.
The airlock is also called unloader, rotary feeder, and air lock valve. Usually, the structure of the star unloader is composed of a rotor impeller with several blades, a casing, a seal and a reducer, motor, etc.These type of rotary airlock valve is single machine type. The shafts at both ends protrude, and users can use the rotary airlock valves in groups (at most 5 sets of rotary airlock valve in a group) and connected by couplings.They are widely used under cyclones and other dust filter.
Product features
• main parts of the mainframe shell are cast closely, with strong structure, high strength, not easy to deform and beautiful appearance;
• simple and stable operation, low noise, easy to use;
• high precision ensures its minimum clearance;
• the cross section of the main body shell is specially designed to effectively prevent the extrusion and crushing of granular materials;
• exhaust channels and exhaust pipe joints are provided in the casing to balance the pressure, thus improving work efficiency and preventing material accumulation;
• a variety of materials and sizes can be selected according to customer requirements: stainless steel, carbon steel, cast iron,etc;
• multiple flange options: round or square flange design.
|
model
|
volume（L）
|
power(kw)
|
Rotating speed（r/min）
|
|
TGFY-4
|
4
|
0.75
|
45-60
|
|
TGFY-5
|
5
|
0.75
|
45-60
|
|
TGFY-7
|
7
|
0.75
|
45-60
|
