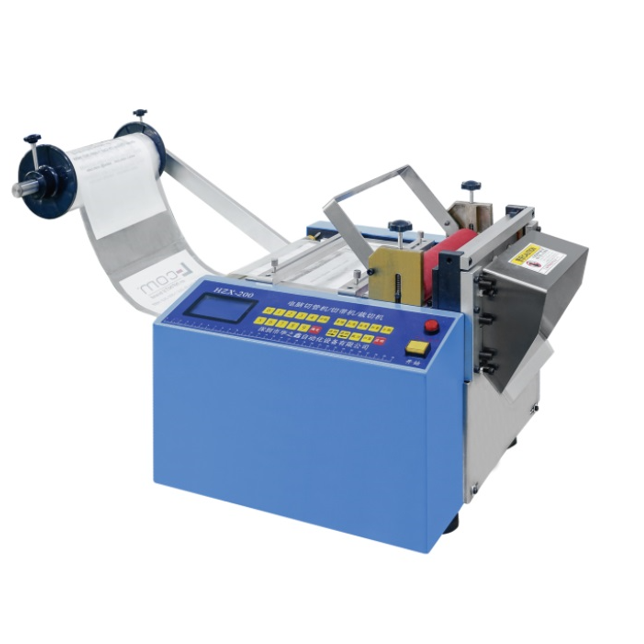

100mm Width Automatic Heat Shrink PVC Tube Metal Strips Cutter Webbing/Ribbon/Rabric Sheet/Belt Hot Cutting Machine

100mm Width Automatic Heat Shrink PVC Tube Metal Strips Cutter Webbing/Ribbon/Rabric Sheet/Belt Hot Cutting Machine

Features

1. LITH-YS-100 Nickel Cutting Machine is mainly used for all kinds of metal and no-metal strip materials, such as  copper foil, aluminum foil, copper foil tape, batteries nickel belt and so on.

2. For mobile phone battery pack, it used for for the Nickel cutting with lower cost than formed size Nickel chips.

Advantages

1.High speed: It can cut 100~120 cut per minute. (50mm long)

2.High accuracy: Cut-length is accurate, cut length can be set between 0.1-9999.9mm.

3.Cutting type: For cold cut and Optional hot cut. Hot cut suitable for materials that needs hot sealing, such as Nylon webbing, polyester webbing, etc.

4.Automatic operation: It works automatically only by setting length and quantity. Save labor, high efficiency.

5.Automatic stopper: It stops automatically if materials run out during operation

6.Memory: Set-length, set-q'ty & set-speed are not erased even if power off & on

7.Application:The cutting machine is suitable for cutting tubes, cable, webbing/ribbon/belt, small wire, sheet and film, etc.

8.High speed, high accuracy, designed for cutting non-adhesive materials.

Customization: cutting width from 100mm-1600mm.

Application

The cutting machine is suitable for cutting tube, ribbon/webbing/belt, cable/wire, sheet, film etc.

Tube: PVC tube, heat shrink tube, PVC heat shrinking tube, fiberglass tube, corrugated tube, etc.

Cable: Flat cable, copper wire, etc

Tape: nickel strap, hook and loop, cotton tape, elastic band, plastic tape, zipper, conductive tape,foam, etc

Sheet: battory separator, Nickel sheet, diffusersheet, plastic/rubber sheet, pvc sheet,etc

Film: plastic film, reflecting film, double-sided tape, Malar film, insulation paper, PE, Copper/Aluminum foil, release paper,etc

Specifications

Product Images
