Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Smooth
-
Model Number:
-
28VC001
-
Torque:
-
0.43kg
-
Turn-on time:
-
2.5-12ms
-
Withstand voltage:
-
200vmin
-
Resistance:
-
18Ω±10%
-
Weight:
-
0.13kg
-
Inductance:
-
2.8mH±10%
Quick Details
-
Speed(RPM):
-
custom high speed
-
Continuous Current(A):
-
0.6A
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Smooth
-
Model Number:
-
28VC001
-
Torque:
-
0.43kg
-
Turn-on time:
-
2.5-12ms
-
Withstand voltage:
-
200vmin
-
Resistance:
-
18Ω±10%
-
Weight:
-
0.13kg
-
Inductance:
-
2.8mH±10%

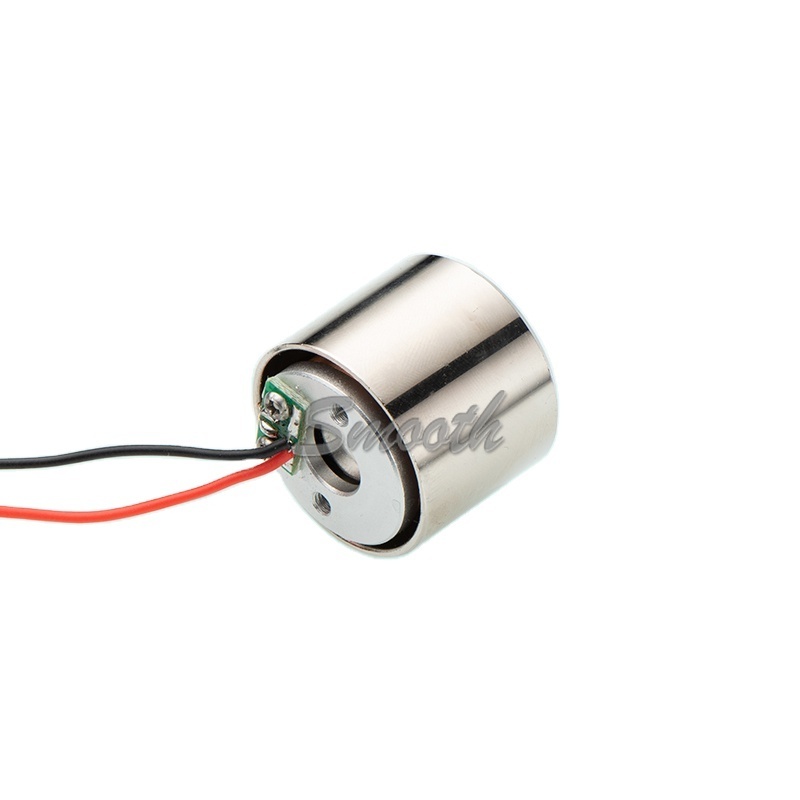

Features Of Smooth 28VC001 Voice Coil Motor
*Small size, especially suitable for use in some small spaces.
*The response speed is fast, its own weight is small, it can achieve very high acceleration and can do high-speed oscillation reciprocating motion.
*The control is simple and reliable, have reversing device, long life, and can work continuously for a long time.
*It can carry out precise position, speed, acceleration and thrust control.
Electrical Specifications
|
Genral features
|
|
Electrical parameters
|
|
|
Turn-on time
|
2.5-12ms
|
Operating Voltage
|
12v
|
|
Withstand voltage
|
200vmin
|
Resistance
|
18Ω±10%
|
|
Insulation class
|
Class E
|
Rated current
|
0.6A
|
|
Weight
|
0.13kg
|
Inductance
|
2.8mH±10%
|
|
Frequency range
|
0-85HZ
|
Thrust
|
0.43kg
|
wiring
Dimensional Drawing
Applications
The Smooth Motor are ideal for applications requiring a combination of precise positioning, rapid motion and long life.
|
Stage Lighting
|
Medical Equipment
|
3D Printer
|
Packing Machine
|
|
Semicon Equipment
|
Sewing Machine
|
Robot
|
Engraving Machine
|
Custom assembly
SMOOTH provide the custom service by combining the reliable stepper motor and precise mechanical parts for varies applications.
