Quick Details
-
Jacket:
-
None
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Zhengzhou Third Cable
-
Model Number:
-
ACSR-IEC61089
-
Product name:
-
ACSR Bare Conductor Cable
-
Core Number:
-
Single Cores
-
Voltage:
-
High Voltage
-
Conductor:
-
Aluminium Conductor Steel Reinforced
-
Applicable Standard:
-
IEC61089 , ASTM B-232, BS215
Quick Details
-
Insulation Material:
-
None
-
Application:
-
Overhead transmission and primary and secondary distribution
-
Conductor Material:
-
Aluminium Conductor Steel Reinforced
-
Jacket:
-
None
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Zhengzhou Third Cable
-
Model Number:
-
ACSR-IEC61089
-
Product name:
-
ACSR Bare Conductor Cable
-
Core Number:
-
Single Cores
-
Voltage:
-
High Voltage
-
Conductor:
-
Aluminium Conductor Steel Reinforced
-
Applicable Standard:
-
IEC61089 , ASTM B-232, BS215
Product Description
Factory Price Overhead Bare 120mm ACSR Conductor Wire For Secondary Distribution
Construction:
1.Core Number:Single Core
2.Voltage:High Voltage
3.Conductor:
Aluminium Conductor Steel Reinforced
4.Applicable Standard:
IEC61089 , ASTM B-232, BS215
5.Packing Material:Wooden Reel, Iron-wooden Reel, Steel Reel
Application:

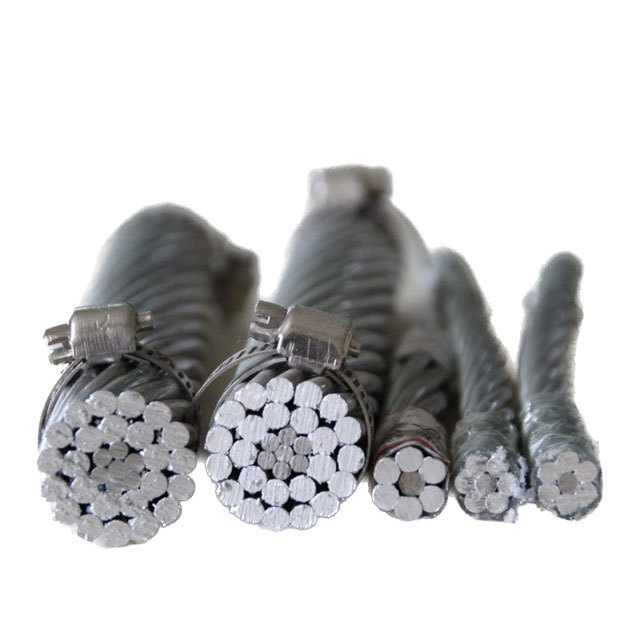

ACSR conductor consists of a solid or stranded steel core surrounded by strands of aluminium. ACSR conductor is available in a range of steel strengths varying from 6% up to 40%. The higher strength ACSR conductors are used for river crossings, overhead earth wires, and installations involving extra long spans. Against any given resistance of conductor, ACSR conductor may be manufactured to have different tensile strengths as per requirement. The principal advantage of these conductors are their high tensile strength and light weight, covering longer spans with less supports. Due to the greater diameter of an ACSR conductor much higher corona limit can be obtained, giving a big advantage on high and extra high voltage overhead lines.
Specification
|
Code Name
|
Cross-section Area
|
|
|
Number of wires
|
|
Approx. Overall Dia.
|
Approx. Weight
|
Rated Strength
|
D.C. Resistance
|
|||
|
|
Alum.
|
Steel
|
Total
|
|
|
|
|
|
|
|||
|
|
mm2
|
mm2
|
mm2
|
Al
|
St
|
mm
|
kg/km
|
kN
|
Ω/km
|
|||
|
16
|
16
|
2.67
|
18.7
|
6
|
1
|
5.52
|
65
|
6.08
|
1.7934
|
|||
|
25
|
25
|
4.17
|
29.2
|
6
|
1
|
6.90
|
101
|
9.13
|
1.1478
|
|||
|
40
|
40
|
6.67
|
46.7
|
6
|
1
|
8.73
|
162
|
14.40
|
0.7174
|
|||
|
63
|
63
|
10.50
|
73.5
|
6
|
1
|
10.98
|
256
|
21.63
|
0.4555
|
|||
|
100
|
100
|
16.70
|
117
|
6
|
1
|
13.83
|
406
|
34.33
|
0.2869
|
|||
|
125
|
125
|
6.94
|
132
|
18
|
1
|
14.85
|
398
|
29.17
|
0.2304
|
|||
|
125
|
125
|
20.40
|
145
|
26
|
7
|
15.64
|
501
|
45.69
|
0.2310
|
|||
|
160
|
160
|
8.89
|
169
|
18
|
1
|
16.80
|
509
|
36.18
|
0.1800
|
|||
|
160
|
160
|
26.10
|
186
|
26
|
7
|
17.74
|
645
|
57.69
|
0.1805
|
|||
|
200
|
200
|
11.10
|
211
|
18
|
1
|
18.80
|
638
|
44.22
|
0.1440
|
|||
|
200
|
200
|
32.60
|
233
|
26
|
7
|
19.81
|
805
|
70.13
|
0.1444
|
|||
|
250
|
250
|
24.60
|
275
|
22
|
7
|
21.53
|
879
|
68.72
|
0. 1154
|
|||
|
250
|
250
|
40.70
|
291
|
26
|
7
|
22.16
|
1007
|
87.67
|
0.1155
|
|||
