Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ISAIAH
-
Certification:
-
ISO9001:2015
-
Motion Pattern:
-
Double Action
-
Fluid:
-
Air
-
Pressure range:
-
0.1-0.9Mpa
-
Max operating pressure:
-
1.0Mpa
-
Condition Temperature:
-
-5-70°C
Quick Details
-
Weight (KG):
-
1
-
Marketing Type:
-
New Product
-
Core Components:
-
Piston
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ISAIAH
-
Certification:
-
ISO9001:2015
-
Motion Pattern:
-
Double Action
-
Fluid:
-
Air
-
Pressure range:
-
0.1-0.9Mpa
-
Max operating pressure:
-
1.0Mpa
-
Condition Temperature:
-
-5-70°C

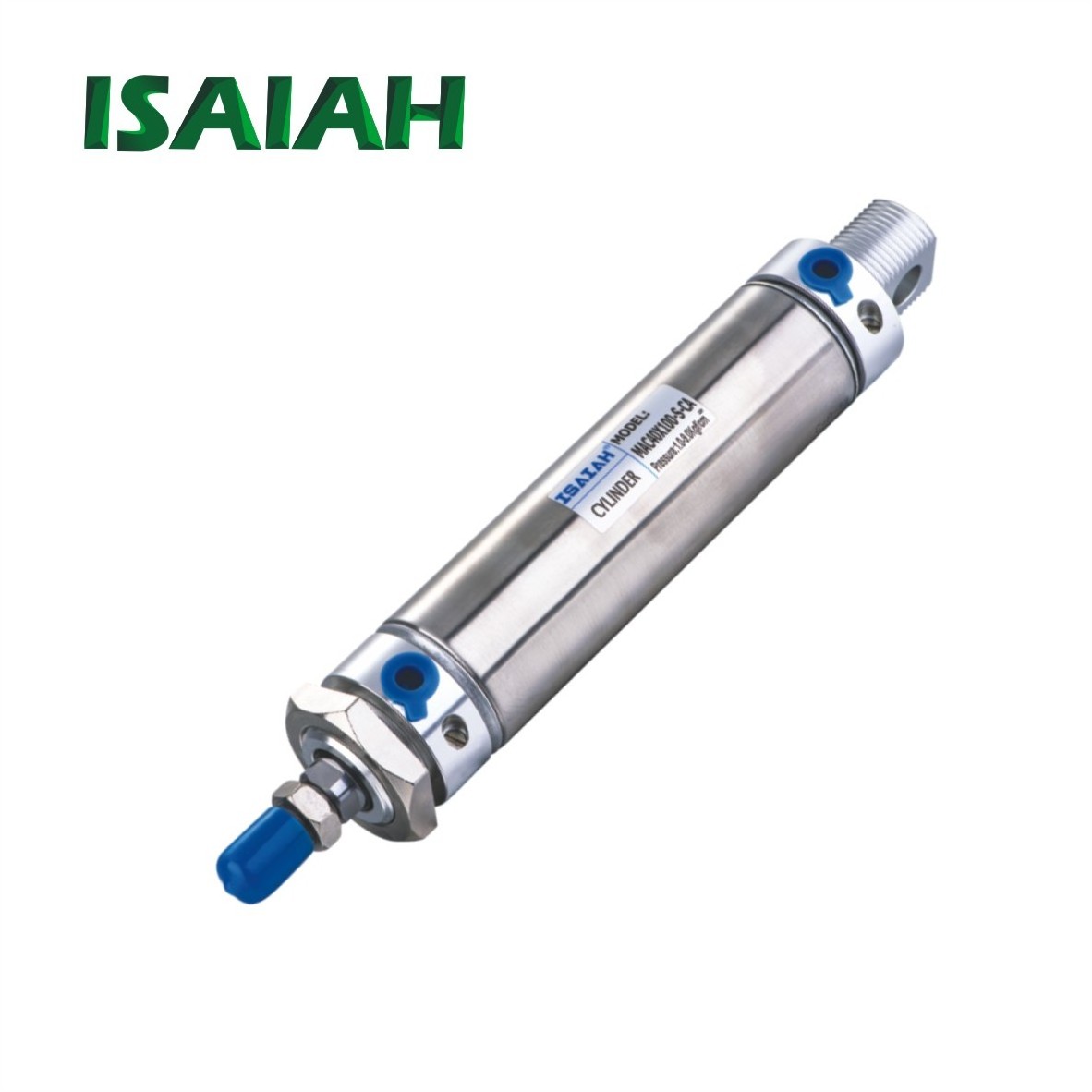

Product details
FEATURE:
Implement of our company Standard;
Piston using special bothway sealing structure with tight dimension and the function of oil storage;
Alternatives: gasket buffer or gas buffer;
Various types of back cover, easy for installation;
The end cover and the cylinder roller package structure reliable connection adopts riveting;
Cylinder body's material's stainless steel, adjusting to normal corrosive working environment;
Various types of the cylinder and cylinder accessories for choosing;
This series are all with the magnet.
| Bore(mm) | 16 | 20 | 32 | 40 | ||||
| Action type | Single action/Double action | |||||||
| Fluid | Air(to be filtered by 40um filter element) | |||||||
| Pressure range | Double action:0.1-0.9MPa Single action:0.2-0.9MPa | |||||||
| Max. Pressure | 1.35MPa | |||||||
| Temperature range | -10~80'C | |||||||
| Speed Range | 50~800mm/s | |||||||
| Cushion Type | Rubber Cushion/Gas Cushion(optional) | |||||||
| Port size | M5 | G1/8 | ||||||
| Bore(mm) | 16 | 20 | 25 | 32 | 40 |
| Action type | Single action/Double action | ||||
| Fluid | Air(to be filtered by 40μm filter element) | ||||
| Pressure range | Double action:0.1-0.9MPa Single action:0.2-0.9MPa | ||||
| Max. Pressure | 1.35MPa | ||||
| Temperature range | -10~80°C(No freezing) | ||||
| Speed Range | 50~800mm/s | ||||
| Cushion Type | Rubber Cushion/Gas Cushion(optional) | ||||
| Port size | M5 | G1/8 | |||
