Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
Jingsun
-
Model Number:
-
JAM132S 685-710W
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2384 * 1303 * 35 mm
-
Delivery Time:
-
15days
-
Front Cover:
-
3.2 mm Tempered Glass
-
Frame:
-
Anodized Aluminium Alloy
-
Application:
-
Solar Power System
-
Material:
-
Monocrystalline Silicon
-
Max. Series Fuse:
-
30/35A
-
Application Classification:
-
Class a
-
Power Tolerance:
-
0~+5W
-
Weight:
-
33.5kg
-
Product name:
-

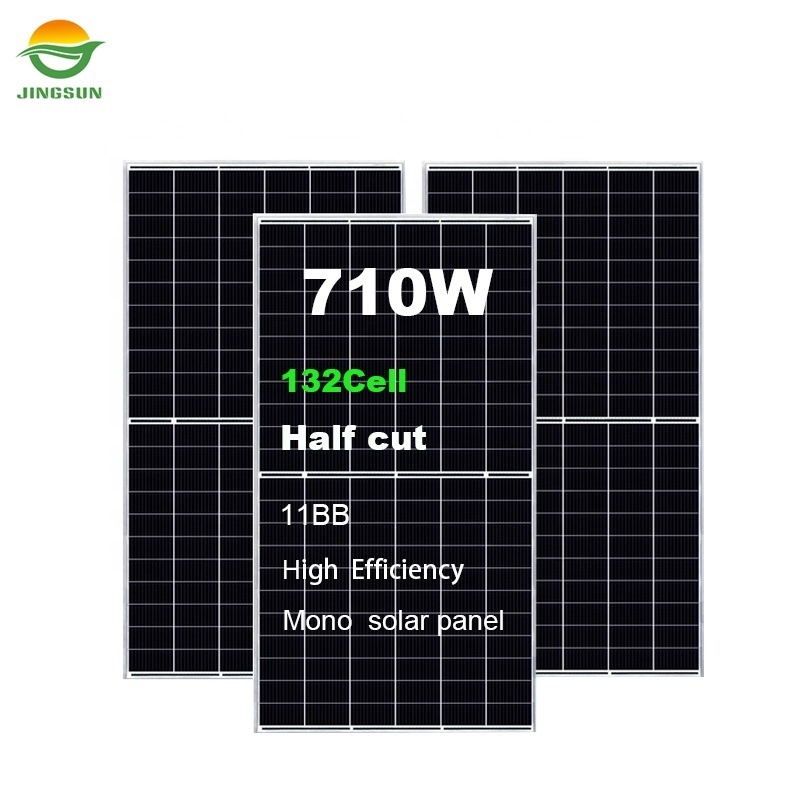

High Efficiency Panel Solar 700w 710w Solar panel
-
Certificate:
-
TUV,CE,IEC,INMERTO
Quick Details
-
Cell size:
-
210*83mm
-
Type:
-
PERC, Half Cell
-
Panel Efficiency:
-
22.9%
-
Warranty:
-
25 years
-
Brand Name:
-
Jingsun
-
Model Number:
-
JAM132S 685-710W
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2384 * 1303 * 35 mm
-
Delivery Time:
-
15days
-
Front Cover:
-
3.2 mm Tempered Glass
-
Frame:
-
Anodized Aluminium Alloy
-
Application:
-
Solar Power System
-
Material:
-
Monocrystalline Silicon
-
Max. Series Fuse:
-
30/35A
-
Application Classification:
-
Class a
-
Power Tolerance:
-
0~+5W
-
Weight:
-
33.5kg
-
Product name:
-
High Efficiency Panel Solar 700w 710w Solar panel
-
Certificate:
-
TUV,CE,IEC,INMERTO
Products Description
|
TYPE
|
JAM132S-685
|
JAM132S-690
|
JAM132S-695
|
JAM132S-700
|
JAM132S-705
|
JAM132S-710
|
|||||
|
Maximum Power Pmax(W)
|
685
|
690
|
695
|
700
|
705
|
710
|
|||||
|
Maximum Power Voltage Vpm(V)
|
38.8
|
39
|
39.2
|
39.4
|
39.6
|
39.8
|
|||||
|
Maximum Power Current Imp(A)
|
17.66
|
17.7
|
17.74
|
17.78
|
17.82
|
17.86
|
|||||
|
Open Circuit Voltage Voc(V)
|
44.94
|
45.14
|
45.34
|
45.54
|
45.74
|
45.94
|
|||||
|
Short Circuit Voltage Isc(A)
|
18.74
|
18.76
|
18.79
|
18.81
|
18.83
|
18.85
|
|||||
|
Power Tolerance
|
0~+5W
|
|
|
|
|
|
|||||
|
Dimensions
|
2384±2mmx1303±2mm×35mm ±1mm
|
|
|
|
|
|
|||||
|
Cable&Connector
|
4mm²,EVO2 or EVO2 compatible
|
|
|
|
|
|
|||||
|
Modules Per Pallet
|
30/31pieces
|
|
|
|
|
|
|||||
|
Modules Per 40HQ
|
558pieces
|
|
|
|
|
|
|||||
Details Images
Factory Display
Jingsun Group is a renewable energy company specializing in the production and development of solar modules, solar systems, batteries, etc. It has more than ten years of production experience. Our company currently uses the most advanced production automation machines and has provided customers with more than 2GW of solar energy Photovoltaic modules and millions of sets of batteries, controllers and brackets and other solar energy series products. Our products have been exported to Europe, North America, South America, the Middle East and many other countries, and have been consistently praised and satisfied by customers. Our ultimate purpose is to develop, manufacture and deliver the most reliable and cost-effective solar energy solutions to every corner of the world, let us work together for environmental protection.
World famous cooperative brand
Our customer
Solar panel project in Lebanon
Solar panel project in UAE
Solar panel project in
Germany
Solar panel project in
saudi arabia
Recommend Products
Certifications
Packing
FAQ
A: What are your main products?
We mainly manufacture solar systems, solar panels, inverters, controllers, batteries and mounting systems and all related solar accessories.
B: Are you a factory or a trading company?
We are a factory with more than ten years of experience in the production of solar energy series products. You are welcome to visit our factory.
C: Can you print our company logo on the nameplate and packaging?
Yes, we can do it according to your design.
D: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, full support and assistance services.
E: How does your factory conduct quality control?
Quality first. We have a professional QC team to strictly control the quality. Only when the quality meets the requirements, will it be packaged out of the factory.
F: What are your strengths in solar systems?
Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with well-known brands such as Jinko, JA, TRW, etc., and can provide large-brand solar energy series products.
