Quick Details
-
Throat Depth (mm):
-
100 mm
-
Brand Name:
-
Hoston
-
Power (kW):
-
11 kW
-
Weight (KG):
-
11200 KG
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
220V, 380V, 415V
-
Dimension(L*W*H):
-
According to the Machine Model
-
Marketing Type:
-
New Product
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Main Electrical Components:
-
Schneider, France
-
Valve:
-
Atos, Italy
-
Pump:
-
Sumitomo, Japan
-
Oil Seal:
-
Japan
-
Motor:
-
Siemens
-
Wiring Terminal Block:
-
WEIDMULLER, Germany
-
Electric Backgauge:
-
1m
-
Control System:
-
Estun, China/Delem Holand
-
Blade Material:
-
6CrW2Si
Quick Details
-
Max. Cutting Width (mm):
-
4000
-
Max. Cutting Thickness (mm):
-
6 mm
-
Blade Length (mm):
-
3200 mm
-
Throat Depth (mm):
-
100 mm
-
Brand Name:
-
Hoston
-
Power (kW):
-
11 kW
-
Weight (KG):
-
11200 KG
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
220V, 380V, 415V
-
Dimension(L*W*H):
-
According to the Machine Model
-
Marketing Type:
-
New Product
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Main Electrical Components:
-
Schneider, France
-
Valve:
-
Atos, Italy
-
Pump:
-
Sumitomo, Japan
-
Oil Seal:
-
Japan
-
Motor:
-
Siemens
-
Wiring Terminal Block:
-
WEIDMULLER, Germany
-
Electric Backgauge:
-
1m
-
Control System:
-
Estun, China/Delem Holand
-
Blade Material:
-
6CrW2Si
Machine Features for Easy operation QC11Y hydraulic guillotine shearing machine with bite type Tube fittings
Machine Description

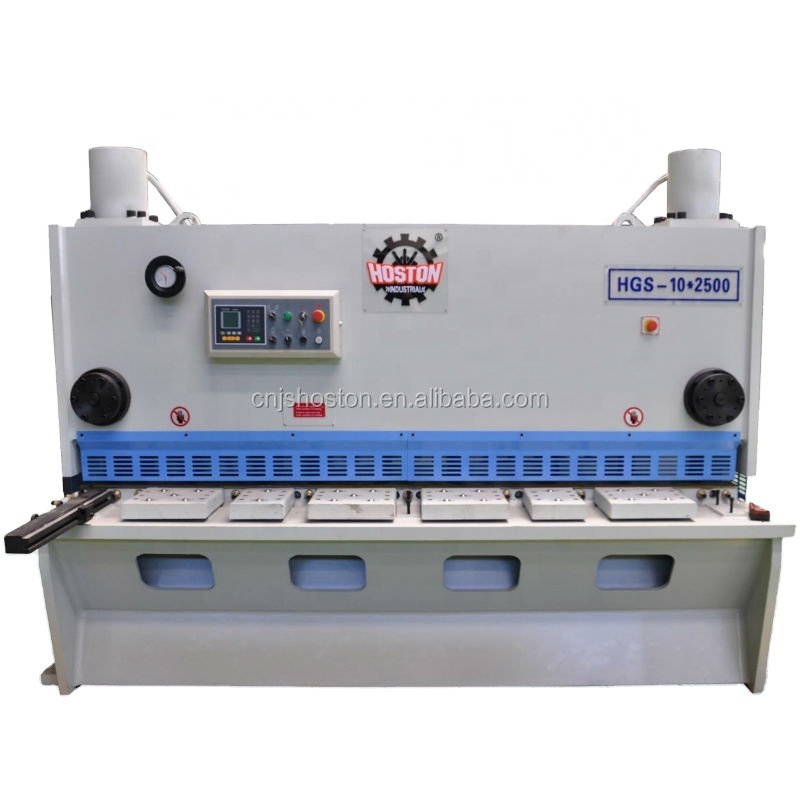

Hoston Hydraulic Guillotine shearing machines are characterized by high accuracy and cut quality in all conditions and on any material.
The solid frame of the machine and the double plate, that supports the work bench, ensure absolute stability with performance and reliability.
The quality of guillotine shear is certified by hydraulic, electrical and mechanical components with high range. The machine's performance, excellent in the standard equipment, can be upgraded with different
components and accessories that are characterized by flawless performances even in extreme working.
The options of CNC control panel allows an easier use of the machine optimizing the manufacturing process.
Machine Features
1. Steel welded structure with stress-free
2. Three guide trolleys enable accurate movement and fine shearing results
3. Hydraulically driven blade holder, retracted by cylinder accumulator
4. Adjustable rake angel to minimize deformation of sheared plate
5. Back gauge travel can be manually adjusted and knob fined, digital displayed
6. Swing away back gauge function for cutting longer sheets
7. Indicator-based adjustment of blades clearance is easy, convenient and swift
8. 4 cutting edges blade
9. Full or shorter stroke of blade holder is adjustable
10. NC controller as standard configuration or CNC controller as optional
|
Type |
Cutting thickness (mm) |
Cutting length (mm) |
Travel Times (times/min) |
Back Gauge Distance (mm) |
Cutting Angle (°) |
Throat Depth (mm) |
Power (KW) |
Dimension LxWxH (mm) |
|
HGS-6x2500 |
6 |
2500 |
18 |
550 |
1.5 |
100 |
7.5 |
3100x1600x2050 |
|
HGS-6x3200 |
6 |
3200 |
15 |
550 |
1.5 |
100 |
7.5 |
3800x1600x2050 |
|
HGS-6x4000 |
6 |
4000 |
12 |
550 |
1.5 |
100 |
7.5 |
4600x1600x2100 |
|
HGS-6x6000 |
6 |
6000 |
8 |
750 |
1.5 |
100 |
11 |
6600x1900x2500 |
|
HGS-8x2500 |
8 |
2500 |
14 |
550 |
1.5 |
100 |
7.5 |
3100x1600x2000 |
|
HGS-8x3200 |
8 |
3200 |
12 |
550 |
1.5 |
100 |
7.5 |
3800x1600x2000 |
|
HGS-8x4000 |
8 |
4000 |
10 |
550 |
1.5 |
100 |
11 |
4600x1600x2100 |
|
HGS-8x6000 |
8 |
6000 |
6 |
750 |
1.5 |
100 |
15 |
6600x1900x2500 |
|
HGS-10x2500 |
10 |
2500 |
11 |
550 |
2 |
100 |
11 |
3100x1700x2100 |
|
HGS-10x3200 |
10 |
3200 |
10 |
550 |
2 |
100 |
11 |
3800x1700x2100 |
|
HGS-10x4000 |
10 |
4000 |
9 |
750 |
2 |
100 |
15 |
4600x1700x2200 |
|
HGS-12x2500 |
12 |
2500 |
12 |
750 |
2 |
100 |
15 |
3200x1800x2250 |
|
HGS-12x3200 |
12 |
3200 |
10 |
750 |
2 |
100 |
15 |
3900x1800x2250 |
|
HGS-12x4000 |
12 |
4000 |
8 |
750 |
2 |
100 |
18.5 |
4700x1800x2400 |
|
HGS-12x6000 |
12 |
6000 |
5 |
750 |
2 |
100 |
22 |
6800x2000x2600 |
|
HGS-16x2500 |
16 |
2500 |
11 |
750 |
2.5 |
100 |
18.5 |
3400x2100x2500 |
|
HGS-16x3200 |
16 |
3200 |
9 |
750 |
2.5 |
100 |
18.5 |
4100x2100x2500 |
|
HGS-16x4000 |
16 |
4000 |
6 |
750 |
2.5 |
100 |
22 |
4900x2100x2600 |
|
HGS-16x6000 |
16 |
6000 |
4 |
750 |
2.5 |
100 |
22 |
7000x2300x2800 |
|
HGS-20x2500 |
20 |
2500 |
8 |
750 |
2.5 |
100 |
22 |
3400x2100x2600 |
|
HGS-20x3200 |
20 |
3200 |
7 |
750 |
2.5 |
100 |
22 |
4100x2100x2600 |
|
HGS-20x4000 |
20 |
4000 |
6 |
750 |
2.5 |
100 |
30 |
4900x2200x2700 |
|
HGS-25x2500 |
25 |
2500 |
7 |
750 |
3 |
120 |
37' |
3500x2200x2700 |
|
HGS-25x3200 |
25 |
3200 |
6 |
750 |
3 |
120 |
37 |
4200x2200x2800 |
|
HGS-25x4000 |
25 |
4000 |
5 |
750 |
3 |
120 |
37 |
5000x2300x2900 |
|
HGS-30x2500 |
30 |
2500 |
6 |
750 |
3.5 |
120 |
45 |
3600x2300x2800 |
|
HGS-30x3200 |
30 |
3200 |
5 |
750 |
3.5 |
120 |
45 |
4300x2300x2900 |
|
HGS-30x4000 |
30 |
4000 |
5 |
750 |
3.5 |
120 |
45 |
5100x2400x3000 |
Remark: Above models are only parts of our NC machine categories.
For more information, please feel free to contact with us.
