Quick Details
-
Heating Power (kW):
-
12 kW
-
Production Speed(times/h):
-
240
-
Power Supply:
-
380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
LEADWORLD
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
1700*950*1900mm
-
Weight (T):
-
1.6 T
-
Product name:
-
High Speed Vacuum Thermoforming Machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Food, Vegetable
-
Packaging Material:
-
Stainless Steel
-
Automatic Grade:
-
Full Automatic
-
Place of Orignal:
-
Shanghai, CHina
-
Power:
-
2.2KW
-
Usage:
-
Platic Blister Plastic Tray Forming
Quick Details
-
Max.Forming Height(mm):
-
60 mm
-
Forming Width (mm):
-
422 mm
-
Forming Length (mm):
-
400 mm
-
Heating Power (kW):
-
12 kW
-
Production Speed(times/h):
-
240
-
Power Supply:
-
380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
LEADWORLD
-
Voltage:
-
380V 50HZ
-
Dimension(L*W*H):
-
1700*950*1900mm
-
Weight (T):
-
1.6 T
-
Product name:
-
High Speed Vacuum Thermoforming Machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Food, Vegetable
-
Packaging Material:
-
Stainless Steel
-
Automatic Grade:
-
Full Automatic
-
Place of Orignal:
-
Shanghai, CHina
-
Power:
-
2.2KW
-
Usage:
-
Platic Blister Plastic Tray Forming
Product Description
Function
1. Photoelectric tracking, Can choose the color cover film or optical film for packaging, reduce cost, improve the grade of products.
2. Use Combined mould, Easy to change, multi-usage, mold has a cooling system.
3. Can customize the machine according to customer’s requirements. Also can add Coding system. and On the basis of the vacuum, can fill in nitrogen or other mixed gases.
4. Equipped with world-class original German BUSCH RA0111 vacuum pump, High degree of vacuum, Stable quality, durable and reliable.
5. Equipped with scrap material recycling system, to Keep environment clean.
6. Use the advanced longitudinal-cutting and Transverse cutting system.
Product Advantage
Widely used in vacuum, air, and body mounted packaging for various types of food and non food products,
including:
1、
Meat and poultry products:
including fresh or frozen pork, beef, steak, cold fresh meat, chicken, duck, goose, goose liver, Soy egg, chicken wings, braised meat products, Quail eggs, ham sausage products, etc;
2、
Fish, seafood, and aquatic products:
including frozen fish fillets, whole fish of various sizes, salmon meat, shellfish, crabs, frozen shrimp, processed kelp, crayfish, etc;
3、
Pasta baked goods:
including various types of bread, sandwiches, noodles, pizzas, boxed fast food that require inflatable packaging;
4、
Vegetable and fruit products:
including various types of pickled vegetables, pickles, and freeze-dried vegetable products;
5、
Leisure snacks, seasonings, sauces, hot pot seasonings, tomato sauce, etc;
6、
Pet food
Product Specificatoion
|
|
|
|
||||
|
Model Parameter
|
LW—ATVP—S/D320
|
LW—ATVP—S/D420
|
LW—ATVP—S/D520
|
|||
|
Packing Speed
|
4-8Cycles/Min
|
|
|
|||
|
Bottom film Thickness
|
≤0.8mm
|
|
|
|||
|
Bottom film Width
|
322mm
|
422mm
|
522mm
|
|||
|
Top Film Width
|
285mm
|
385mm
|
485mm
|
|||
|
Max.Forming Size
|
300X400mm
|
400X400mm
|
500X400mm
|
|||
|
Max.Forming Depth
|
80mm
|
|
|
|||
|
Power Supply
|
AC 380V 50Hz(3Phase)
|
|
|
|||
|
Air Consumption
|
500L/Min
|
550L/Min
|
650L/Min
|
|||
|
Air Supply
|
≥0.6Mpa
|
|
|
|||
|
Loading Area Length
|
≥1.5m
|
|
|
|||
|
Power
|
10kw
|
12kw
|
15kw
|
|||
|
Dimension
|
4500X1000X1700mm
|
5200X1100X1760mm
|
6000X1200X1760mm
|
|||
|
Weight
|
1300kg
|
1600kg
|
2200kg
|
|||

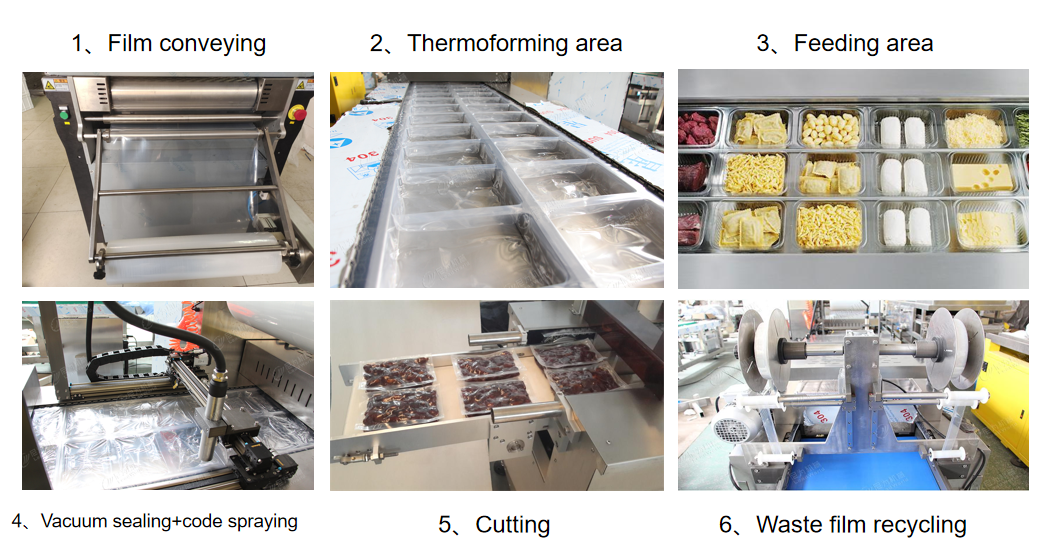

Product Configuration
Siemens PLC
German Siemens programmable controller(PLC)and touch screen, simple to use, easy to operate.
Package material
Just put up/down films roll, the machine will form container for food, then seal films together.
Flexible Mold Replacement
One machine for vacuum packaging all specification products only need to change the mold
Green&Healthy Production
Corner waste recycling system for environmental sanitation.
Liquid & Paste Automatic Feeding System
Other mixed gases can be input while vacuuming to prolong the product preservation time
Conveyor Belt Discharge
Neat and even bottom film formed by specially crafted molds
Automatic grain filling
This system can feed / weighing / fill grain products automatically.

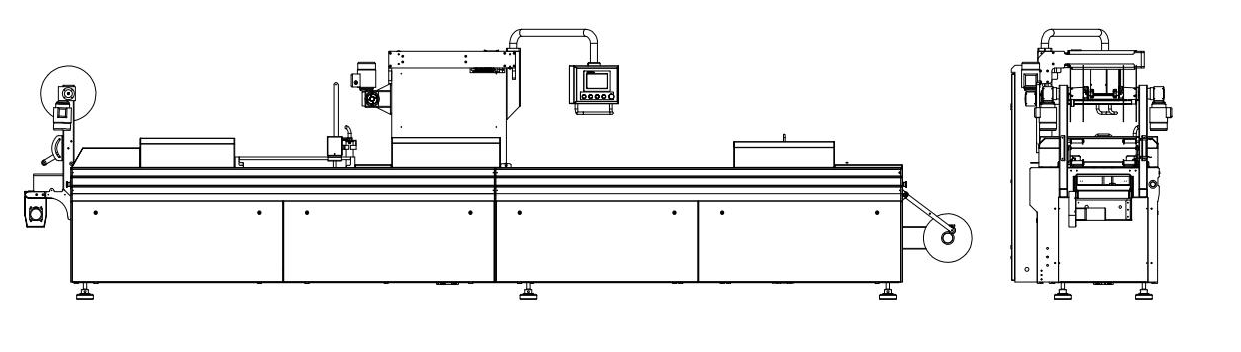

Diagram of the matrix
Related Equipment
Quality Assurance
Adopt world-famous brand accessories, such as Germany Busch vacuum pump, Danfoss inverter, Germany Weidmuler relay, France Schneider air switch, Japanese Panasonic servo motor, Italian Regina chains, Taiwan AirTAC solenoid valve, Siemens PLC, And so on.
