Quick Details
-
Table Travel (Z) (mm):
-
450 mm
-
Max. Table Load(kg):
-
300
-
Travel (W-axis) (mm):
-
0 mm
-
Marketing Type:
-
Hot Product
-
Positioning Accuracy (X axis) mm:
-
0.01
-
Positioning Accuracy (Y axis) mm:
-
0.01
-
Positioning Accuracy (Z axis) mm:
-
0.01
-
Range of Spindle Speed(r.p.m):
-
600 r.p.m
-
Spindle Motor Power(kW):
-
3.75
-
Production Capacity:
-
15-20 Sets/month
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ELSEN
-
Voltage:
-
380V/50Hz/3Ph
-
Dimension(L*W*H):
-
1400*1400*2250mm
-
Weight (T):
-
2 T
-
Product name:
-
T8018A engine rebuilding manufacture cylinder blocks boring machine
-
Max Boring Depth:
-
450mm
-
Usage:
-
cylinder head boring
-
Spindle Speed:
-
Infinitely Variable
-
Boring Diameter(Standard):
-
30-180mm
-
Spindle feed:
-
0.05,0.10,0.20mm/r
-
Bore head parts:
-
56mm and 75mm
-
Motor Power (kw):
-
3.75
-
Functions:
-
Hole Boring
-
After-sales Service Provided:
-
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Mexico, Australia, Chile, UAE, South Africa
-
Certification:
-
ISO9001 ,CE
Quick Details
-
Table Size (mm):
-
1200x500
-
Table Travel (X) (mm):
-
800 mm
-
Table Travel (Y) (mm):
-
100 mm
-
Table Travel (Z) (mm):
-
450 mm
-
Max. Table Load(kg):
-
300
-
Travel (W-axis) (mm):
-
0 mm
-
Marketing Type:
-
Hot Product
-
Positioning Accuracy (X axis) mm:
-
0.01
-
Positioning Accuracy (Y axis) mm:
-
0.01
-
Positioning Accuracy (Z axis) mm:
-
0.01
-
Range of Spindle Speed(r.p.m):
-
600 r.p.m
-
Spindle Motor Power(kW):
-
3.75
-
Production Capacity:
-
15-20 Sets/month
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ELSEN
-
Voltage:
-
380V/50Hz/3Ph
-
Dimension(L*W*H):
-
1400*1400*2250mm
-
Weight (T):
-
2 T
-
Product name:
-
T8018A engine rebuilding manufacture cylinder blocks boring machine
-
Max Boring Depth:
-
450mm
-
Usage:
-
cylinder head boring
-
Spindle Speed:
-
Infinitely Variable
-
Boring Diameter(Standard):
-
30-180mm
-
Spindle feed:
-
0.05,0.10,0.20mm/r
-
Bore head parts:
-
56mm and 75mm
-
Motor Power (kw):
-
3.75
-
Functions:
-
Hole Boring
-
After-sales Service Provided:
-
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Mexico, Australia, Chile, UAE, South Africa
-
Certification:
-
ISO9001 ,CE
Products Description

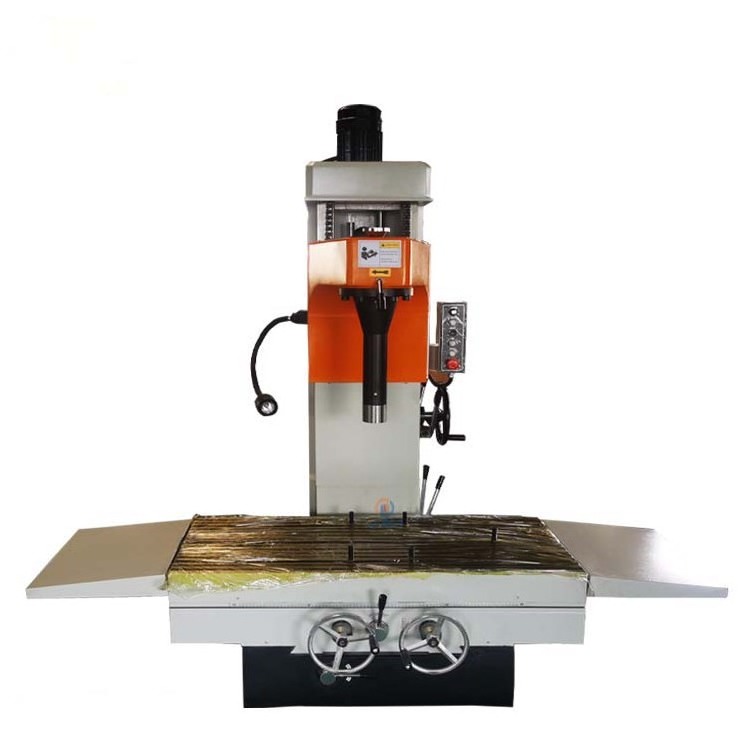

This machine tool is suitable for boring cylinder bores and inner bores of internal combustion engines such as automobiles and tractors. It can be used for repairing and processing of other machinery, and can also be used for precision boring of inner holes of other mechanical parts.
|
Main Specifications
|
Unit
|
T8018A
|
T8018B
|
T8018C
|
|
Processing Diameter
|
mm
|
30-180(with optionals)
|
30-180(with optionals)
|
42-180(with optionals)
|
|
Max Boring Depth
|
mm
|
450
|
450
|
650
|
|
Spindle Speed
|
r/min
|
Infinitely variable
|
175,230,300,350,460,600
|
175,230,300,350,460,600
|
|
Spindle Feed
|
mm/r
|
0.05,0.10,0.20
|
0.05,0.10,0.20
|
0.05,0.10,0.20
|
|
Main Motor Power
|
kw
|
3.75
|
3.75
|
3.75
|
|
Overall Dimensions
(L x W x H)
|
mm
|
2000 x 1235 x 1920
|
2000 x 1235 x 1920
|
2330 x 1500 x 2325
|
|
Packing Dimensions
(L x W x H)
|
mm
|
1400 x 1400 x 2250
|
1400 x 1400 x 2250
|
1880x 1550 x 2550
|
|
N.W/G.W
|
kg
|
2000/2200
|
2000/2200
|
3000/3400
|
Machine Details
