Quick Details
-
Lifting speed:
-
3-6s
-
Bollard diameter:
-
168-275mm
-
Raising height:
-
600mm-900mm
-
Color:
-
optional
-
Surface::
-
Polish/Coating
-
Root:
-
Square plate
-
IP grade:
-
IP68
-
Maintenance cost:
-
Low
-
Warranty:
-
1 year
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TDZ
-
Material:
-
Steel/iron/Aluminum
-
Lifting speed:
-
3-6s
-
Bollard diameter:
-
168-275mm
-
Raising height:
-
600mm-900mm
-
Color:
-
optional
-
Surface::
-
Polish/Coating
-
Root:
-
Square plate
-
IP grade:
-
IP68
-
Maintenance cost:
-
Low
-
Warranty:
-
1 year

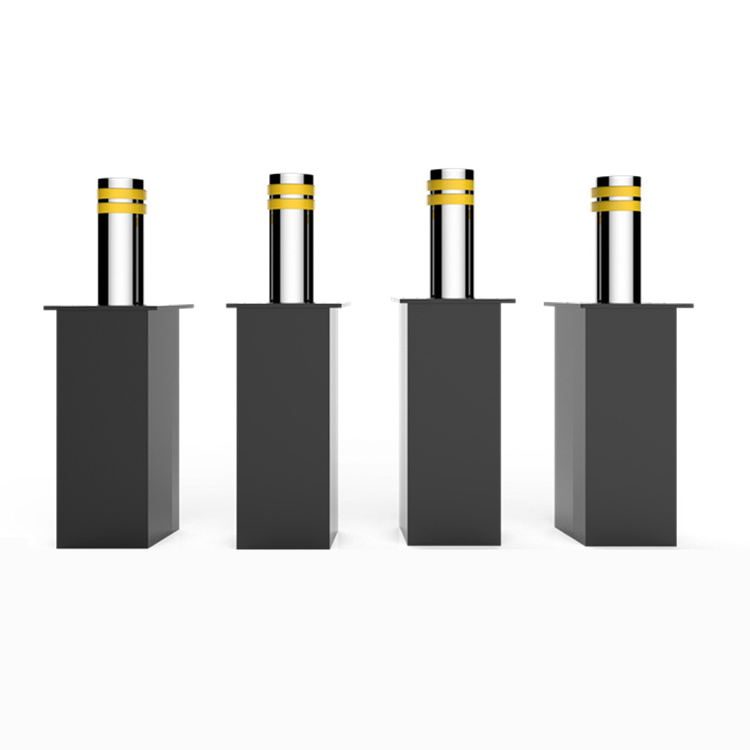

K12 Grade Entrance Vehicle Remote Access Control Automatic Hydraulic Lifting Bollards
Functions:
Remote control; Desktop Button; Car recognition; Linkage; k12 grade Anti Collusion; Damping; waterproof IP 68 Grade;
Easy Insrallation.
SUS material; LED flashing Lights; Brush surface;Stainess steel cover.
Support customization:
1.Full automatic/semi automatic/manual/ fixed bollards are avaialable.
2.Logo can be printed on the bollards
3.The material thickness can be customized.
4.The individual and group control can be customized.
|
Diameter |
φ219mm; |
|
Outer box size |
φ350*1120 |
|
Rising height |
600mm (customized: 800mm, 900mm, 1000mm) |
|
Thickness |
8mm (customized: 8mm, 10mm, ) |
|
Material |
304 Stainless steel |
|
Through pressure |
can bare more than 80 tons of container trucks |
|
Crash rating |
K12 |
|
Rising / Falling speed |
Rising speed: ≤ 3s (adjustable) Falling speed: ≤ 3s (adjustable) |
|
Power supply |
3 phase power 380V(control voltage 24V) |
|
System power |
3.7KW |
|
Level of protection |
IP68 |
|
LED light |
Ring LED light, Top LED light (optional) |
Quick Details
Economical choice compared to automatic bollards
Raised up by pneumatic spring
no power supply needed
All weather workable
- Economical choice compared to automatic bollards
- Raise up by pneumatic spring
- no power supply needed
- All weather workable
- Easy installation and maintainance
