Quick Details
-
Power:
-
131
-
Gradeability:
-
30°
-
Overall dimensions(L*W*H):
-
6215*3416*3120
-
Crawler height (mm):
-
60
Quick Details
-
Year:
-
2011
-
Machine Weight:
-
18700 KG
-
Dozing Capacity:
-
3.9m³
-
Power:
-
131
-
Gradeability:
-
30°
-
Overall dimensions(L*W*H):
-
6215*3416*3120
-
Crawler height (mm):
-
60
Product Description

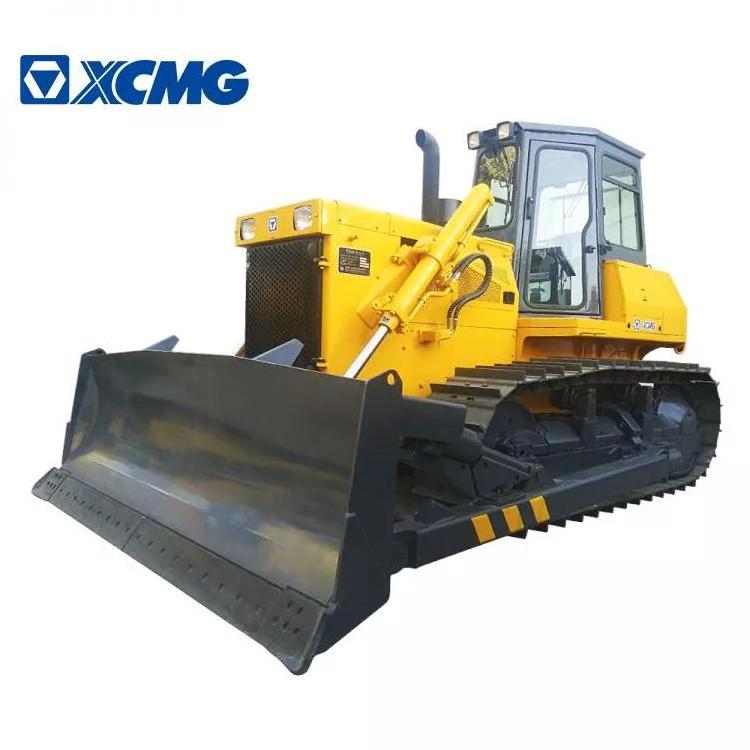

XCMG official Used TY160 small compact bulldozer cheap price for sale
The TY160 bulldozer which has excellent power, reliability and a long service life. Through the introduction of bulldozer
technology, at the same time absorb the advantages of D60A-8, The TY160 crawler type bulldozer has been developed by the domestic design.
Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.
Specification
|
Name
|
Remarks
|
Specifications
|
||
|
Overall size of the machine（mm）
|
Straight shovel, traction rod
|
5128×3416×3120
|
||
|
|
Straight shovel, three toothed soil loosen
|
6215×3416×3120
|
||
|
The use quality of the whole machine（kg）
|
Straight shovel, traction rod
|
17100
|
||
|
|
Straight shovel, three toothed soil loosen
|
18700
|
||
|
Maximum traction power (kN)
|
|
148
|
||
|
Minimum turning radius (mm)
|
|
3100
|
||
|
Maximum climbing performance (°)
|
|
30
|
||
|
Minimum ground clearance (mm)
|
|
400
|
||
|
Average ground specific pressure (MPa)
|
|
0.065
|
||
|
Forward speed (km/h)
|
F1
|
3.1
|
||
|
|
F2
|
5.47
|
||
|
|
F3
|
9.07
|
||
|
Back speed (km/h)
|
R1
|
4.03
|
||
|
|
R2
|
7.12
|
||
|
|
R3
|
11.81
|
||
|
Tracked ground length (mm)
|
|
2430
|
||
|
Caterpillar center distance (mm)
|
|
1880
|
||
|
Production efficiency (m3/h)
|
30m distance
|
350
|
||
|
Engine
|
|
|
||
|
Model
|
|
Weichai WD10G178E25
|
||
|
The number of cylinder - bore * stroke (mm)
|
|
6－126×130
|
||
|
Rated power (kW)
|
|
131
|
||
|
Rated speed (r/min)
|
|
1850
|
||
|
Maximum torque (N.m/r/min)
|
|
830/1000～1200
|
||
|
Fuel consumption rate (g/kW.h)
|
|
≤210
|
||
|
Walking system
|
|
|
||
|
Pitch (mm)
|
|
203.2
|
||
|
Number of wheels of single side belt
|
|
2
|
||
|
Number of single side pulley
|
unilateral and 2 bilateral
|
6
|
||
|
Crawler height (mm)
|
|
60
|
||
|
Working device
|
|
|
||
|
Straight shovel single shovel capacity (M3)
|
|
3.9
|
||
|
The maximum lifting height of the blade (mm)
|
|
1095
|
||
|
The maximum depth of soil cutting blade (mm)
|
|
545
|
||
|
The maximum tilt blade height (mm)
|
|
860
|
||
|
Three tooth looser tooth distance (mm)
|
|
950
|
||
|
Three tooth looser
|
Soil depth (mm)
|
572
|
||
|
|
Elevation (mm)
|
702
|
||
|
The three tooth scarifier weight (kg)
|
|
1621
|
||
