Quick Details
-
EL-800ST:
-
Built-in LED, door sensor, and time delay
-
Holding Force:
-
350KG(800LBS)
-
Input Voltage:
-
DC12V (Adjustable DC24V)
-
Current:
-
12V/500mA 24V/250mA
-
Suitable:
-
Wooden door , Glass door ,Metal door , Fireproof door
-
Humidity:
-
0~90%(non-condensing)
-
Cover Finish:
-
Anodized aluminum
-
Lock Finish:
-
Zinc
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
S4A
-
Model Number:
-
EL-800ST
-
EL-800ST:
-
Built-in LED, door sensor, and time delay
-
Holding Force:
-
350KG(800LBS)
-
Input Voltage:
-
DC12V (Adjustable DC24V)
-
Current:
-
12V/500mA 24V/250mA
-
Suitable:
-
Wooden door , Glass door ,Metal door , Fireproof door
-
Humidity:
-
0~90%(non-condensing)
-
Cover Finish:
-
Anodized aluminum
-
Lock Finish:
-
Zinc

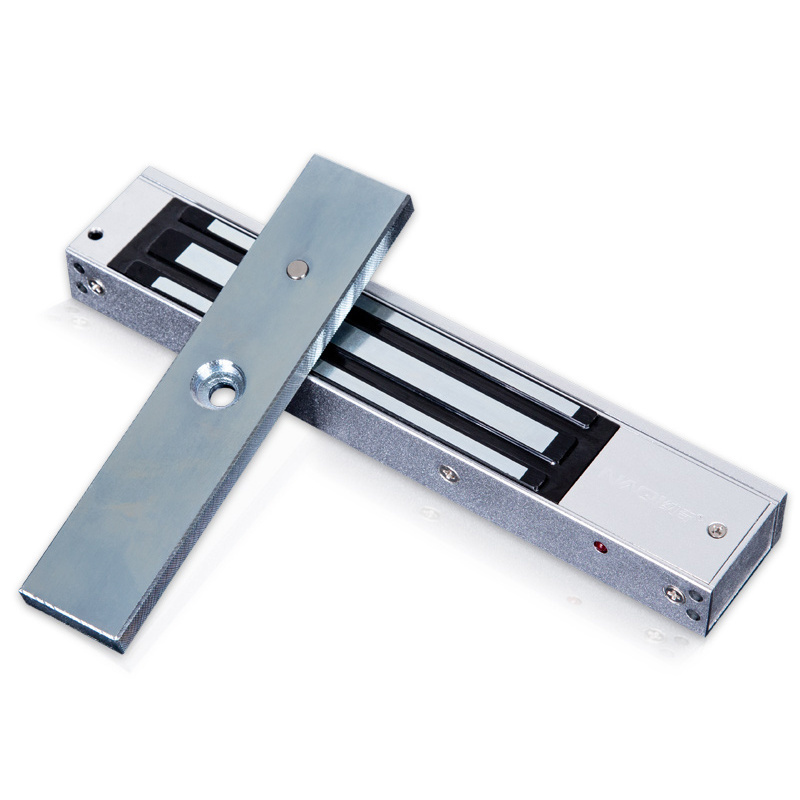

350kg One Door Magnetic Lock With Led/door Sensor And Time Delay
| Product Parameter | Parameter Description | ||||
| Product Name | Single Door 800LBS Magnetic Lock | ||||
| Lock Size | 285Lx55Wx27.5H(mm) | ||||
| Armature Plate Dimension | 190Lx45Wx11H(mm) | ||||
| Holding Force | 350KG(800LBS) | ||||
| Input Voltage | DC12V (Adjustable DC24V) | ||||
| Current | 12V/500mA(±10%) ; 24V/250mA(±10%) | ||||
| Suitable | Wooden door , Glass door ,Metal door , Fireproof door | ||||
| Surface Temp | ≤+20℃ | ||||
| Operating Temp | -20℃~+55℃(-4—131°F) | ||||
| Humidity | 0~90%(non-condensing) | ||||
| Cover Finish | Anodized aluminum | ||||
| Lock Finish | Zinc | ||||
| Armature Plate Finish | Zinc | ||||
| Weight | 2.5KG | ||||
| Standard Package | 10PCS/CTS | ||||
| Carton Weight | 25KG | ||||
| Carton Size | 35*36*18 (cm) | ||||
