Quick Details
-
Voltage:
-
380V 50Hz 3phase 58kw
-
Dimensions(L*W*H):
-
9100x3312x3310mm
-
Weight:
-
11500 KG
-
Max Mechanical Speed:
-
10,000sph
-
Max production Speed:
-
8,000sph
-
Maximum Sheet Size:
-
720mm x1020mm
-
Max Image Area:
-
700mm x 1000mm
-
Minimum Sheet Size:
-
393mm X 546mm
-
Weight Range of Paper:
-
90-450 gsm
-
Non-Printing Gap(Gripper margin):
-
13mm
-
Max. Height of Delivery Pile:
-
≥960mm
-
Plate Cylinder Diameter:
-
300mm
-
Registering Precision:
-
±0.1mm
Quick Details
-
Marketing Type:
-
Popular Product
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Allraising
-
Voltage:
-
380V 50Hz 3phase 58kw
-
Dimensions(L*W*H):
-
9100x3312x3310mm
-
Weight:
-
11500 KG
-
Max Mechanical Speed:
-
10,000sph
-
Max production Speed:
-
8,000sph
-
Maximum Sheet Size:
-
720mm x1020mm
-
Max Image Area:
-
700mm x 1000mm
-
Minimum Sheet Size:
-
393mm X 546mm
-
Weight Range of Paper:
-
90-450 gsm
-
Non-Printing Gap(Gripper margin):
-
13mm
-
Max. Height of Delivery Pile:
-
≥960mm
-
Plate Cylinder Diameter:
-
300mm
-
Registering Precision:
-
±0.1mm
Products Description

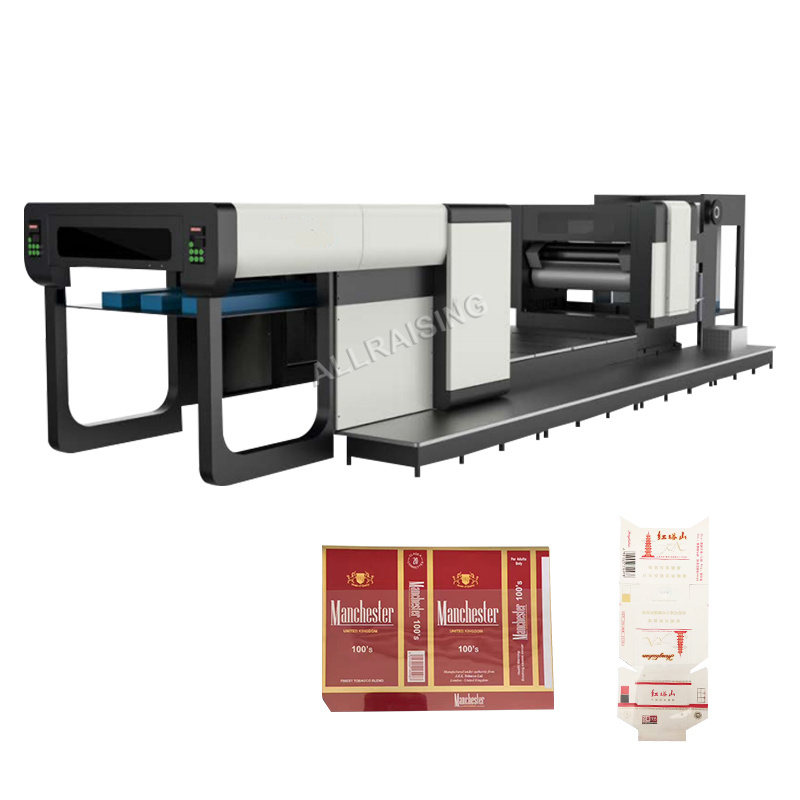

Auto High Precision Sheet-fed UV Anilox Roller Intaglio printing machine Gravure Printing Press Rotogravure Printing Machine
|
Model
|
ZM-YA1B1
|
|
|
Max Mechanical Speed
|
10,000sph
|
|
|
Max production Speed
|
8,000sph
|
|
|
Maximum Sheet Size
|
720mm x1020mm
|
|
|
Max Image Area
|
700mm x 1000mm
|
|
|
Minimum Sheet Size
|
393mm X 546mm
|
|
|
Weight Range of Paper
|
90-450 gsm
|
|
|
Non-Printing Gap(Gripper margin)
|
13mm
|
|
|
Max. Height of Feeder Pile
|
≥1000mm
|
|
|
Max. Height of Delivery Pile
|
≥960mm
|
|
|
Impression Cylinder (Single size)
|
ø300mm
|
|
|
Plate Cylinder
|
ø300mm
|
|
|
Registering Precision
|
±0.1mm
|
|
|
Power Supply
|
380V 50Hz 3phase 58kw
|
|
|
(including hot air 6 nos x 1kw and 10 nos x 2kw IR)
Capable of taking electrical load of Flexo Module and UV drying system (12kw x 3 lamps) in future
|
|
|
|
Net weight
|
11500Kg
|
|
|
Dimensions
|
9100x3312x3310mm
|
|
|
Provision
|
For mounting Flexo Module and UV system in future
|
|
Feeder
1. Automatic non-stop sheet feeder using special pallet with railing for make ready. Total 2 nos. pallets. Feeder capable of handling up to 450 GSM (0.60 mm thick) board.
2. Missing and double sheet detection system.
3. Front and side lay (with sensors) for sheet positioning before printing
Printing unit
Single Circumference impression, gravure cylinders and transfer arrangement. Oscillating doctor blade assembly for gravure printing.
2 sets of circulating tanks with pump and pans (ink )
1 hoist assembly for gravure cylinder changing
Testing cylinder 1 piece
Electric Equipment
1
. 7.5 Mitsubishi inverter with Mitsubishi PLC.
2. The whole machine is controlled by PLC programmable controller, stable and reliable, easy to use and maintain. The main motor with variable frequency speed is adopted, which has high efficiency and can reduce energy consumption.
Drying system
IR dryers: 2KW X 5 nos IR Lamps
Hot air: 1KW X 6 LAMPS
Additional drying length of approx. 1.2 m including IR dryers: 2KW X 5nos.IR LAMPS
Delivery
Automatic non stop delivery with 2 pcs. pallets
