- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
TouZhi, Guangwell
-
Model Number:
-
GW-2412CV, GW-2412CV
-
Output Frequency:
-
50/60Hz
-
Output Voltage:
-
12V
-
Case material:
-
fireproof PC
-
Dimension:
-
128*50*15MM
-
Protection:
-
ocp,ovp,scp,ovt
-
Warranty:
-
2 Years
Quick Details
-
Warranty(Year):
-
2-Year
-
Product Weight（kg）:
-
0.12
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TouZhi, Guangwell
-
Model Number:
-
GW-2412CV, GW-2412CV
-
Output Frequency:
-
50/60Hz
-
Output Voltage:
-
12V
-
Case material:
-
fireproof PC
-
Dimension:
-
128*50*15MM
-
Protection:
-
ocp,ovp,scp,ovt
-
Warranty:
-
2 Years

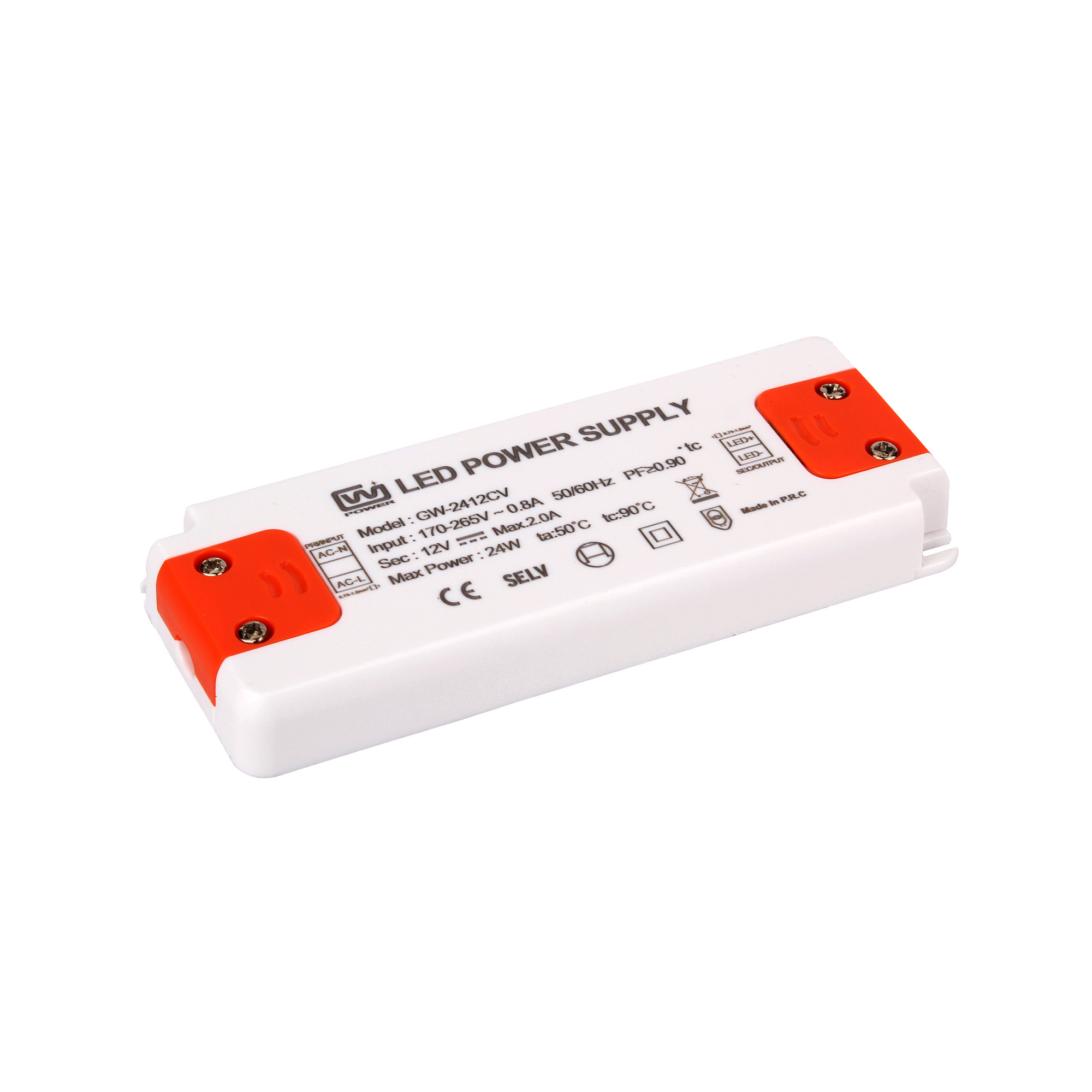

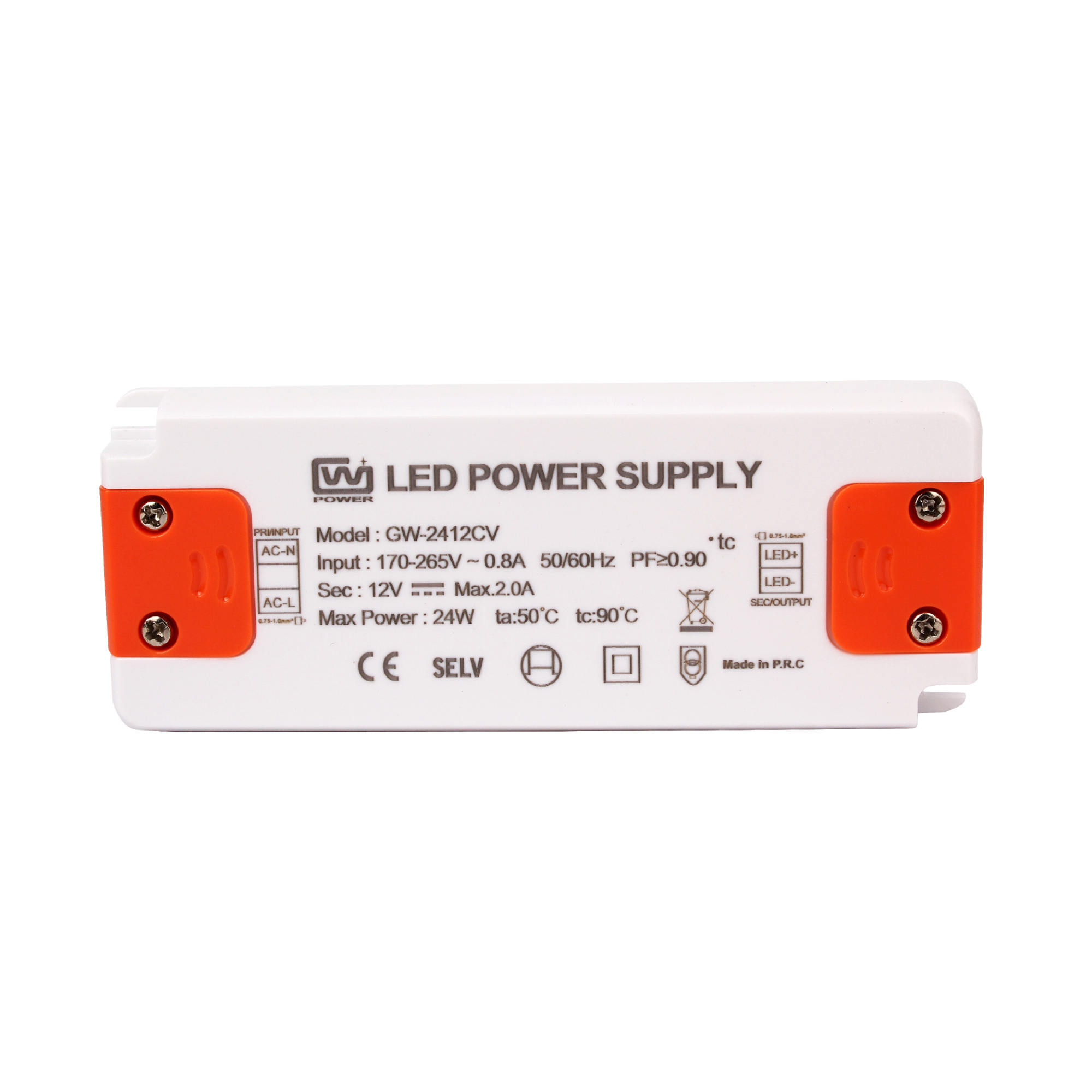

GW-2412CV
TUV CE Ultra LED Power Supply.
TUV CE Ultra LED Power Supply.

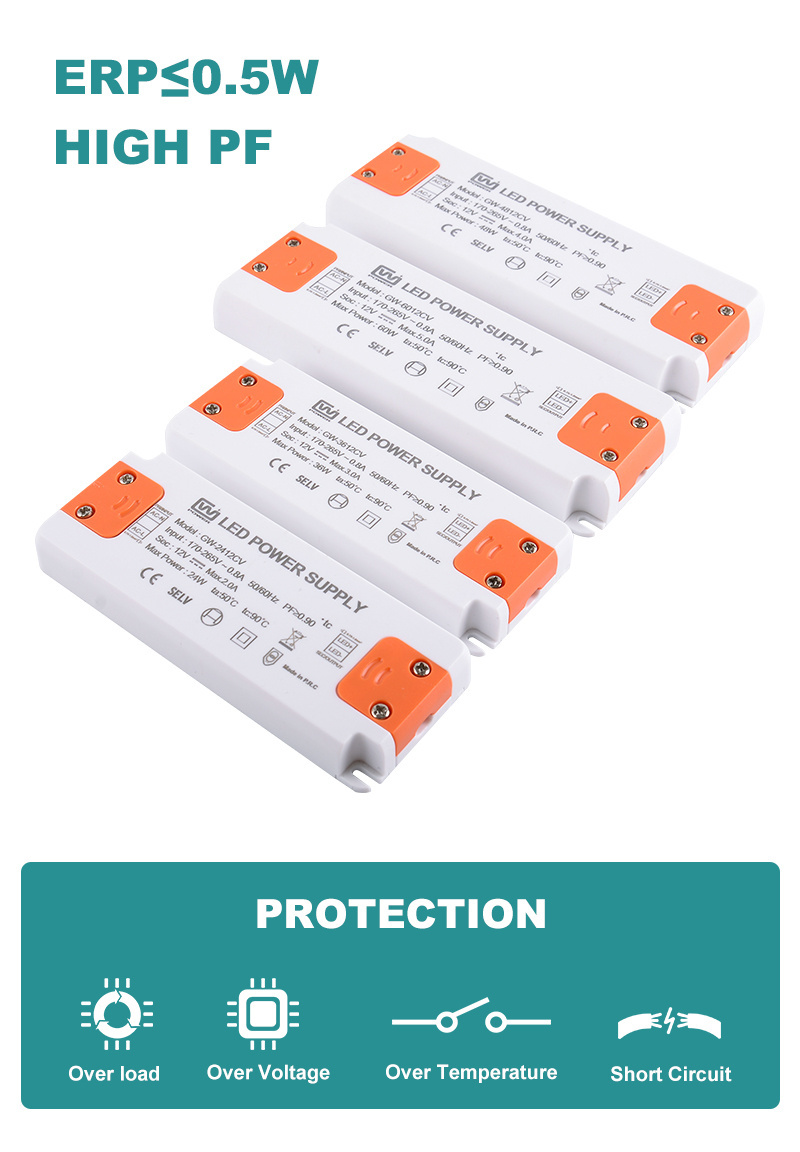

Product Features：
▶Constant Voltage Design
▶Short Circuit/Over Load/Over Temperature Protect
▶100% Full Load Burn-in Test
▶ERP≤0.5W PF≥0.9
▶TUV CE Certificate
▶Short Circuit/Over Load/Over Temperature Protect
▶100% Full Load Burn-in Test
▶ERP≤0.5W PF≥0.9
▶TUV CE Certificate
|

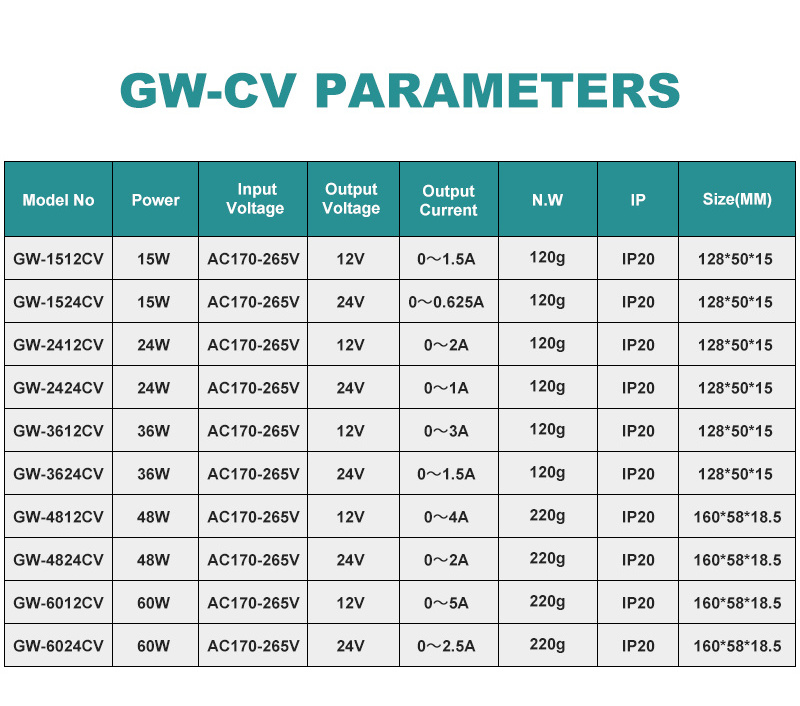

Model
|
|
GW-2412CV
|
GW-2424CV
|
|
|
Certificates
|
|
CE
|
CE
|
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
|
|
Rated Current
|
2.0A
|
1.0A
|
|
|
|
Rate Power
|
24W
|
|
|
|
|
Rated Power Factor
|
>0.90
|
|
|
|
|
ECG Efficiency
|
85%±1%
|
|
|
|
Input
|
Voltage Range
|
170-265VAC
|
|
|
|
|
Normal input current
|
0.25AMax
|
|
|
|
|
Frequency Range
|
47-63Hz
|
|
|
