Quick Details
-
Dimension(L*W*H):
-
2250mm*11500mm
-
Year:
-
new
-
Power (kW):
-
5.5 kW
-
Weight (KG):
-
5200 KG
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
fanghan
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2250mm*11500mm
-
Year:
-
new
-
Power (kW):
-
5.5 kW
-
Weight (KG):
-
5200 KG

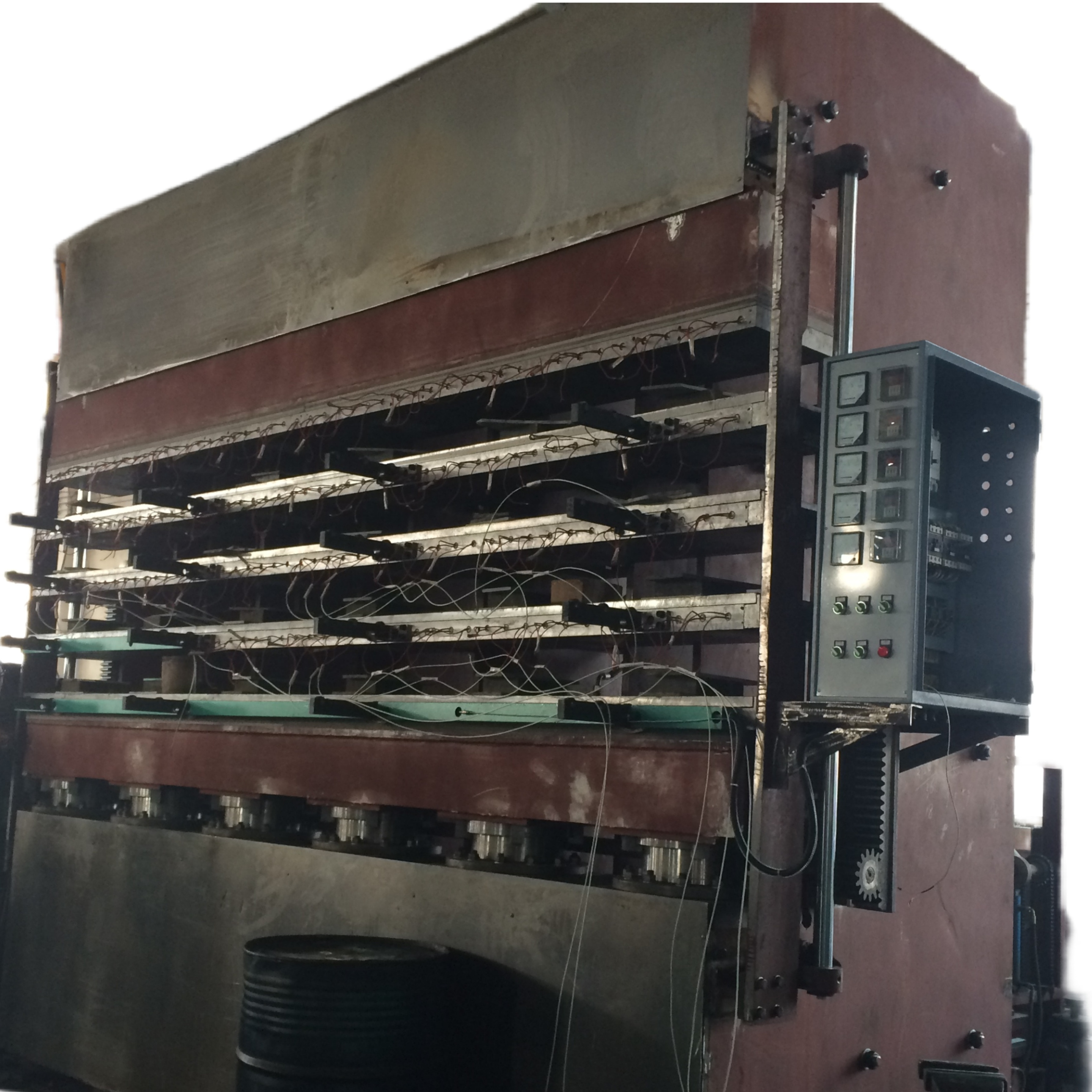

hot sale Jaw Type rubber tire tread Vulcanizing Press
Rubber tread vulcanizing press machine is used to produce strip tread for renovation of all kinds of tires. It is suitable for cold renovation procedure of tires. Our company can supply three types of the machine: C structure (Jaw type), frame structure, H structure. We can design and manufacture other models according to the customer’s requirements. Please contact us if you are interested in our products.
Product Description
Features:
1. 2 dual-action cylinders for fast mold open / close;
2. Provided with mass flow prefill valve;
3. Automatic mold forward / backward;
4. PLC controlled;
5. Unit area pressure no less than 45kg/cm² to ensure the density of the tyre-surface
6. Multiple options of layer number and tables;
7. Hydraulic pressure components and electrical equipment imported or of local famous brand, to ensure reliable performance.
|
Model
|
XLB-Q4000X420
|
XLB-Q4000X700
|
XLB-Q5500X360
|
XLB-Q12000X460
|
|
Total Pressure (MN)
|
8.40
|
11.20
|
8.00
|
21.30
|
|
Platen Size(mm)
|
4000x420
|
4000x700
|
5500x360
|
12000x460
|
|
Daylight(mm)
|
150
|
150
|
150
|
150
|
|
Working Layer
|
5
|
5
|
3
|
5
|
|
Piston Stroke (mm)
|
500
|
500
|
400
|
400
|
|
Platen Unit Area Pressure (kg/cm2)
|
50
|
40
|
40
|
38.5
|
|
Power
|
33kw
|
33kw
|
30kw
|
44kw
|
|
Overall Dimension (mm)
|
4200x1320x2450
|
4500x2000x3000
|
5500x2700x3810
|
12200x1600x3900
|
