Quick Details
-
Encoding Format:
-
MPEG-4 AVC/H.264
-
Input:
-
HD-MI,ASI,IP
-
Input Resolution:
-
1920x1080P,1920x1080i,1280720P,720x576i,720x480i
-
Output:
-
RF,IP,ASI,
-
Modulation Output:
-
ATSC, ISDBT, DTMBT, DVB-C/-T
-
Output Resolution:
-
1920x1080,1280x720,720x576,720x480
-
Rate Mode:
-
VBR and CBR
-
Protocol:
-
UDP, RTP
-
Management:
-
Web-based NMS
-
Power Supply:
-
Redundant dual power supply
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Yukuan
-
Model Number:
-
YUK800-1
-
Encoding Format:
-
MPEG-4 AVC/H.264
-
Input:
-
HD-MI,ASI,IP
-
Input Resolution:
-
1920x1080P,1920x1080i,1280720P,720x576i,720x480i
-
Output:
-
RF,IP,ASI,
-
Modulation Output:
-
ATSC, ISDBT, DTMBT, DVB-C/-T
-
Output Resolution:
-
1920x1080,1280x720,720x576,720x480
-
Rate Mode:
-
VBR and CBR
-
Protocol:
-
UDP, RTP
-
Management:
-
Web-based NMS
-
Power Supply:
-
Redundant dual power supply

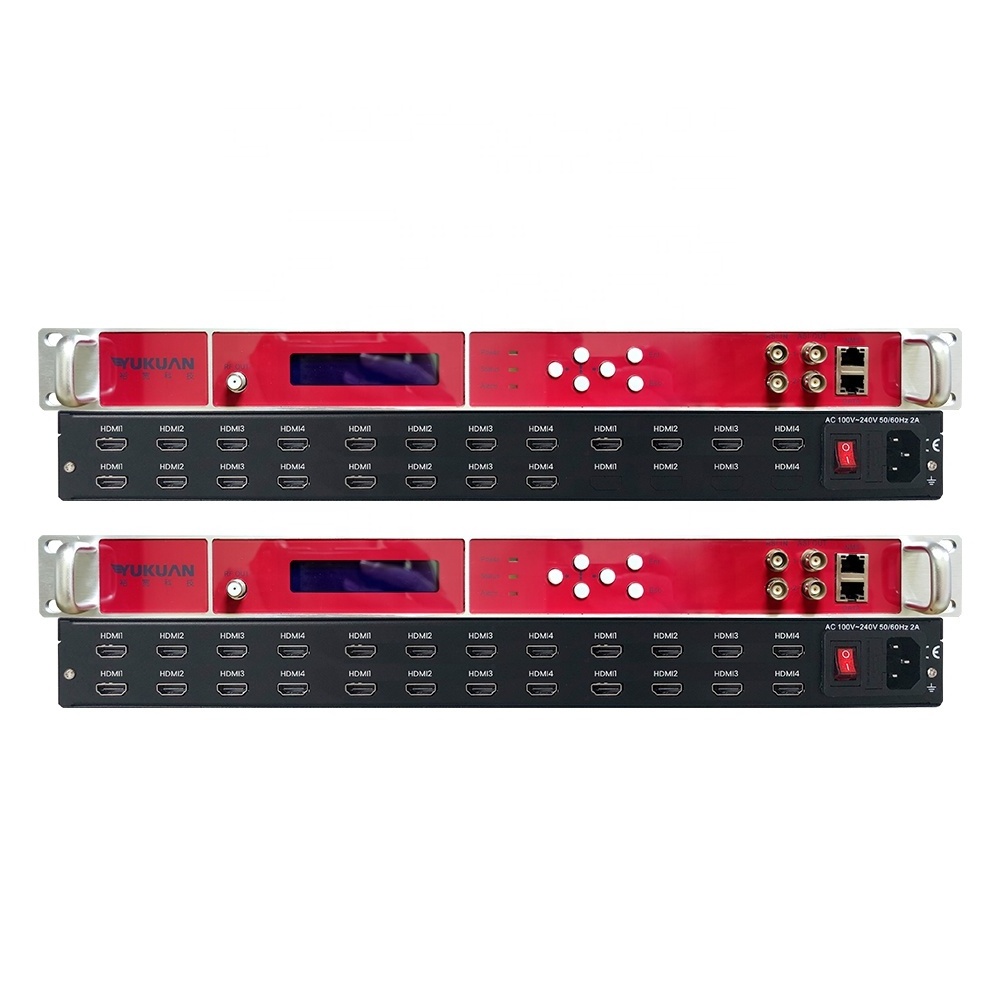

YUK800-1
24 in 1 HD MPEG4 HD MI to Tuner ISDBT DVBT DVBC QAM IPTV Encoder Modulator
Product Overview
YUK800-1 is the latest cost-effective device integrating encoding multiplexing and modulation. It supports 4 / 8 / 12 / 16 / 20 / 24 channel HDMI input, 1 channel Gigabit IP input / output, 4 or 8 or 16 frequency output (ATSC, ISDBT, DTMBT, DVB-C/-T),4 MPTS IP output, 128 SPTS IP output and 128 (MPTS & SPTS) IP input. With high integration, great performance and low cost, it integrated a complete headend system function. The device is widely used in digital TV transmission systems such as hotels, clubs, hospitals etc.
Product Feature
* Support 4 / 8 / 12 / 16 / 20 / 24 channel HDMI input
* Support 4 or 8 or 16 frequency different carrier modulation (ATSC ISDBT DVB-C DVB-T DTMBT ) selection output
* For 4 frequency modulation output, support 1 MPTS IP output, 128 SPTS IP output, UDP/RTP protocol (multicast)
* For 8 or 16 frequency modulation output, support 8 MPTS IP output, 512 SPTS IP output, UDP/RTP protocol (multicast)
* Support 2 ASI input, 2 ASI output separately
* Support MPEG-4 AVC/H.264 encoding, support both CBR and VBR encoding
* Low latency 400ms to 800ms
* Support LCD display and button operation
* Support web network management
* Support online upgrade
* Support OSD function
* Support LCN function
* Support subtitle scrolling, image and QR code overlay, add LOGO letters and symbols, etc.
* Support display anywhere on the TV screen, adjustable coordinates 720X576, font size, color resolution adjustable
* Support picture and text timing display function, multiple pictures can be displayed in turn
Specification
|
Input
|
|
|
|
4/8/12/16/20/24 channel HDMI input
|
|
|
|
2 channel ASI input
|
|
|
|
1 Gigabit IP input, 128 (MPTS & SPTS) IP input
|
|
|
|
Output
|
|
|
|
RF output 4 frequency (optional 8 or 16 frequency ) optional DVB-C DVB-T ATSC ISDBT DMBT
|
|
|
|
2 channel ASI independent output
|
|
|
|
1 Gigabit IP output, 4 MPTS 128 SPTS IP output, UDP RTP protocol
|
|
|
|
Video Encoding
|
|
|
|
Encode Format
|
MPEG-4 AVC/H.264
|
|
|
Rate Mode
|
VBR,CBR
|
|
|
Input
|
HDMI
|
|
|
Input Resolution
|
1920×1080P/1920×1080i/1280×720P/720x576i/
720x480i@50/59.94Hz |
|
|
Output Resolution
|
1920×1080_25P_30P_50P_60P
1280×720_25P_30P_50P_60P 720×576_25P,720x480_30P |
|
|
Audio Encoding
|
|
|
|
Code Rate
|
1Mbps~13Mbps（each channel)
|
|
|
Rate Mode
|
CBR
|
|
|
Encode Format
|
MPEG1 LayerII, LC AAC, HE AAC, HE AAC+
|
|
|
Sample Rate
|
44.1KHz,48KHz
|
|
|
Bit Rate
|
32kbps, 48kbps,64kbps ,128Kbps,192kbps,256kbps,320kbps, 384kbps
|
|
|
QAM
|
|
|
|
Modulation Standard
|
EN300 429/ITU-T J.83A/B/C
|
|
|
Symbol Rate
|
5.0~7.0Msps, 1ksps step
|
|
|
Modulation Constellation
|
16, 32, 64, 128, 256QAM
|
|
|
External Code
|
RS(204,188)
|
|
|
ISDBT
|
|
|
|
Modulation Standard
|
ARIB STD-B31
|
|
|
Transmission Mode FFT
|
2K
|
|
|
Modulation Constellation
|
DQPSK, QPSK, 16QAM, 64QAM
|
|
|
FEC
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|
|
Hierarchical Mode
|
A
|
|
|
Bandwidth
|
6M,7M,8M
|
|
|
DVB-T
|
|
|
|
Bandwidth
|
6M,7M,8M
|
|
|
Guard Interval
|
1/32, 1/16, 1/8, 1/4
|
|
|
Modulation Constellation
|
DQPSK, QPSK, 16QAM, 64QAM
|
|
|
FEC
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|
|
MER
|
≥40dB
|
|
|
ATSC
|
|
|
|
Modulation standard
|
ATSC A/53
|
|
|
Constellation
|
8VSB
|
|
|
RF output level
|
-30~-10dBm (81~97dbµV), in 0.1dB steps
|
|
|
MER
|
≥40dB
|
|
|
RF output frequency range
|
30~960MHz, in 1KHz steps
|
|
|
General
|
|
|
|
Power
|
AC100~240V，50/60Hz
|
|
|
Power Consumption
|
<90W
|
|
|
Temperature Range
|
0~45℃(operation), -20~80℃(storage)
|
|
|
Dimension
|
482mm×410mm×44mm
|
|
|
Weight
|
4-8kg(4-ch to 24-ch)
|
|
Project Case
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
