Quick Details
-
Brand Name:
-
HELI
-
Fork Length:
-
1070mm
-
Fork Width:
-
125mm, 125mm
-
Overall Dimensions:
-
3800*1225*2170mm
-
Weight (KG):
-
5000 kg
-
Rated Loading Capacity:
-
4000kg
-
Max. Lifting Height:
-
3m
-
Drive type:
-
Diesel
-
Operator type:
-
Seated
-
Load center distance:
-
600mm
-
Overall Length(without fork):
-
3120mm
-
Overall width:
-
1450mm
-
Certification:
-
CE/ISO9001
Quick Details
-
Min. Lifting Height:
-
200mm, 200mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
HELI
-
Fork Length:
-
1070mm
-
Fork Width:
-
125mm, 125mm
-
Overall Dimensions:
-
3800*1225*2170mm
-
Weight (KG):
-
5000 kg
-
Rated Loading Capacity:
-
4000kg
-
Max. Lifting Height:
-
3m
-
Drive type:
-
Diesel
-
Operator type:
-
Seated
-
Load center distance:
-
600mm
-
Overall Length(without fork):
-
3120mm
-
Overall width:
-
1450mm
-
Certification:
-
CE/ISO9001
Contact
Alune Xie —— Sales Assistant
mobile phone/Wechat:
+86 19313329653
Email: alune@richmchn.com
Products Description

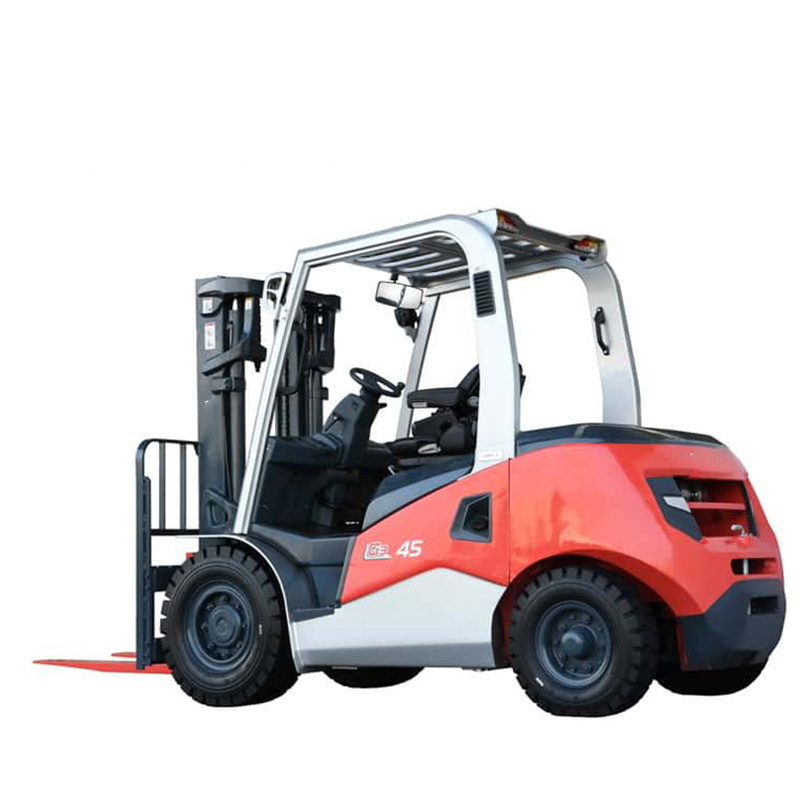

4 ton forklift HELI CPCD40
Anti-misoperation electronic parking brake improves safety and operation convenience;
Equipped with a double guide wheel torque converter gearbox, which can realize stepless speed change;
Adopt a rear-mounted suction cooling system and an all-aluminum plate-fin radiator to improve heat dissipation performance and ensure that the engine and gearbox and other parts work in the best temperature range;
Use maintenance-free wet brake bridge to improve braking reliability;
Full set of LED lamps;
4.3-inch LCD color screen smart instrument, comprehensive monitoring of truck status;
Intelligent vehicle networking and fleet management systems can monitor the daily use of forklifts, perform big data analysis, and provide reports and other documents;
The use of tailstock-less counterweights reduces the center of gravity of the truck and improves stability;
The optimized hydraulic system reduces pressure loss, highlights energy saving and high efficiency, and effectively reduces the fuel consumption of the truck;
Equipped with a double guide wheel torque converter gearbox, which can realize stepless speed change;
Adopt a rear-mounted suction cooling system and an all-aluminum plate-fin radiator to improve heat dissipation performance and ensure that the engine and gearbox and other parts work in the best temperature range;
Use maintenance-free wet brake bridge to improve braking reliability;
Full set of LED lamps;
4.3-inch LCD color screen smart instrument, comprehensive monitoring of truck status;
Intelligent vehicle networking and fleet management systems can monitor the daily use of forklifts, perform big data analysis, and provide reports and other documents;
The use of tailstock-less counterweights reduces the center of gravity of the truck and improves stability;
The optimized hydraulic system reduces pressure loss, highlights energy saving and high efficiency, and effectively reduces the fuel consumption of the truck;
Details Images
Product Paramenters
|
Performance Parameters
|
|
|
|
|
||||
|
Model
|
|
CPCD40
|
CPCD45
|
CPCD50
|
||||
|
Drive type
|
|
Diesel
|
|
|
||||
|
Operator type
|
|
Seated
|
|
|
||||
|
Rated capacity
|
Kg
|
4000
|
4500
|
5000
|
||||
|
Load center distance
|
mm
|
600
|
|
|
||||
|
Standard mast lifting height
|
mm
|
3000
|
|
|
||||
|
Overall Length(without fork)
|
mm
|
3120
|
3165
|
3230
|
||||
|
Overall width
|
mm
|
1450
|
|
|
||||
