Quick Details
-
Application:
-
LANDSCAPE
-
Lamp Luminous Efficiency(lm/w):
-
103.95
-
Input Voltage(V):
-
DC 12/24V
-
CRI (Ra>):
-
80
-
Lamp Luminous Flux(lm):
-
2079
-
Working Lifetime(Hour):
-
30000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RisingSun
-
Model Number:
-
RS-D25P1-24V10
-
LED Type:
-
Smd 2835 Led Chip
-
LED Quantity:
-
160 LEDs/m
-
Color:
-
2700K 3000K 4000K 6000K
-
Length:
-
5 Meters/roll
-
Working Voltage:
-
DC24V Input
Quick Details
-
Color Temperature(CCT):
-
2700K-6500K, RGB
-
Warranty(Year):
-
3-Year
-
Lamp Body Material:
-
PVC,PCB,Copper Wire,Silicone tube
-
Application:
-
LANDSCAPE
-
Lamp Luminous Efficiency(lm/w):
-
103.95
-
Input Voltage(V):
-
DC 12/24V
-
CRI (Ra>):
-
80
-
Lamp Luminous Flux(lm):
-
2079
-
Working Lifetime(Hour):
-
30000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RisingSun
-
Model Number:
-
RS-D25P1-24V10
-
LED Type:
-
Smd 2835 Led Chip
-
LED Quantity:
-
160 LEDs/m
-
Color:
-
2700K 3000K 4000K 6000K
-
Length:
-
5 Meters/roll
-
Working Voltage:
-
DC24V Input

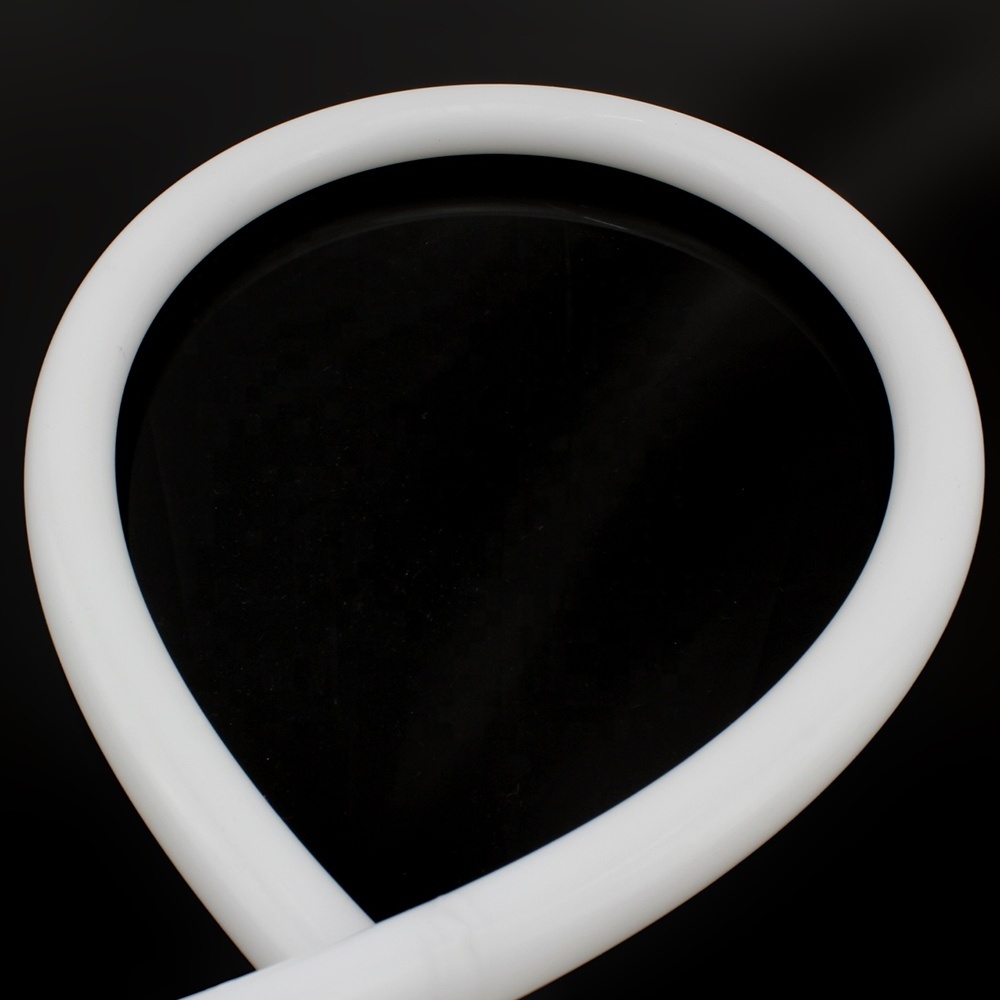

360 Neon Flex Series Led Strip Lights.
1. 360 degree dot-free illumination, with 2 pcs strips in one neon flex.
2. Sourced by SMD 2022, 2835, 3838, 5050 LED with high density; 240, 320, 420, 560 leds/m are available.
3. Waterproof IP67 for indoor and outdoor application.
4. Provide pro & standard choices for neon flex with environmental friendly silicone materials.
2. Sourced by SMD 2022, 2835, 3838, 5050 LED with high density; 240, 320, 420, 560 leds/m are available.
3. Waterproof IP67 for indoor and outdoor application.
4. Provide pro & standard choices for neon flex with environmental friendly silicone materials.
Product Features:
1. Good flexibility, good bending, easy modeling and anti-pulling force.
2. Φ16, Φ18, Φ22, Φ23, Φ25 for diameter size are available.
3. W/ CCT/ RGB/ RGBW emitting color, mini-cuttable option in white color.
4. Different installation methods options: vertical & suspended ceiling, horizontal lifting, and creative ways etc.
5. Low voltage DC24V for human safety, various color temperature are available.
6. 3 Years Warranty.
2. Φ16, Φ18, Φ22, Φ23, Φ25 for diameter size are available.
3. W/ CCT/ RGB/ RGBW emitting color, mini-cuttable option in white color.
4. Different installation methods options: vertical & suspended ceiling, horizontal lifting, and creative ways etc.
5. Low voltage DC24V for human safety, various color temperature are available.
6. 3 Years Warranty.
Installation Instruction
(regular)
:
1. Prepare all the installation accessories: neon flex strip(1x), stainless stell ring(1x), end cap with wire outlet(1x), end cap without wire outlet(1x), M3 screws(3x), PC clip(3x) or PC groove(1x), glue.
2. Put the stainless stell ring into the wire from the welding end. Make the wire through the end cap with outlet in the direction of the arrow.
3. Solder the wire to the red positive pole and black negative pole to the PCB, or according to the specified wire sequence of product requirements.
4. Apply glue around the position of the strip and cap, fill the outer cavity of the welding wire with glue, and install the plug in the direction of the arrow. Then fill the outlet hole with glue. After completion, wipe the excess glue from the plug and the outlet.
5. Apply step 4 to the installation of the other end cap without wire outlet.
6. After the end caps are installed, and the stainless stell ring is sleeved into the punching area of the end cap, wait for 1.5-2 hours to move.
7. Choose the appropriate fixed clip according to the actual installation situation, and prepare the screws.
Adjust the fix clip to a suitable position, and fix the PC transparent clip with M3 screws.
8. When the clips are installed, press the strip light into the fixed clip.
Product Paramenters
|
Model No
|
RS-D25P1-24V10-2835T-160D
|
RS-D25P1-24V10-RGB3838T-160D
|
RS-D25P1-24V10-CA2022T-280D
|
RS-D25P1-24V10-MC2835T-160D
|
RS-D25P1-24V10-RGBW5050T-120D
|
||||
|
Working Voltage
|
24V
|
24V
|
24V
|
24V
|
24V
|
||||
|
Power (W/m)
|
20W/m
|
|
|
|
|
||||
|
LED Qty/m
|
160
|
160
|
280
|
160
|
120
|
||||
|
CRI
|
80+
|
/
|
90+
|
80+
|
80+
|
||||
|
Luminous Efficiency
|
103.9
|
33.48
|
65.53
|
72.09
|
35.78
|
||||
|
Lumen/m
|
2079
|
696.6
|
1310
|
1383
|
730.9
|
||||
|
Min. Cutting
|
Every 50mm (8LEDs)
|
Every 50mm (8LEDs)
|
Every 50mm (14LEDs)
|
Every 6.25mm (1LEDs)
|
Every 50mm (6LEDs)
|
||||
Details Images
Certifications
Packing & Delivery
Shipping
1. Packaging Detail: box packing according to clients' requirements, OEM and ODM is available;
2.
Delivery Detail
:
2-5days
for samples,
6-10 days
for mass production;
3. Shipping Detail: By express: Such as
DHL,UPS, TNT, FEDEX
ecr;
4. Air Freight When you order moer than 100kg which will be more economical than express;
5. Sea freight: Shipping by SEA is available after customer provide destination port;
6. Agent designated by client: Please tell us the contact details of your shipping agentforwarder.
Payment Terms
1. Payment: T/T, Western Union, MoneyGram.PayPal: 30% deposits: 70% balance before delivery
2. MOQ: 1pcs,
3. Package Informations: 100rolls per box /The volume of the box is 54cmx30cmx38cm.
