Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ShengQi
-
Weight (KG):
-
2000 kg
-
Keywords:
-
Gantry Crane,single girder gantry crane
-
Color:
-
Clients' Requirments
-
Application:
-
Workshop,factory,construction work,
-
Capacity:
-
1~300ton
-
Work Duty:
-
A3-A8
-
Lift height:
-
Customized
-
Power:
-
As your needs
-
Certification:
-
ISO,CE,BV,S GS,TUV
Quick Details
-
Rated Loading Capacity:
-
1 Ton, 1.5 Ton, 10 TON, 15 TON, 2 ton, 2.5 TON, 3 Ton, 3.5 TON, 4 TON, 4.5 Ton, 5 ton, 6 TON, 7 ton, 8 Ton, 9 ton
-
Max. Lifting Height:
-
Other
-
Span:
-
Customized, 50m,customized
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ShengQi
-
Weight (KG):
-
2000 kg
-
Keywords:
-
Gantry Crane,single girder gantry crane
-
Color:
-
Clients' Requirments
-
Application:
-
Workshop,factory,construction work,
-
Capacity:
-
1~300ton
-
Work Duty:
-
A3-A8
-
Lift height:
-
Customized
-
Power:
-
As your needs
-
Certification:
-
ISO,CE,BV,S GS,TUV

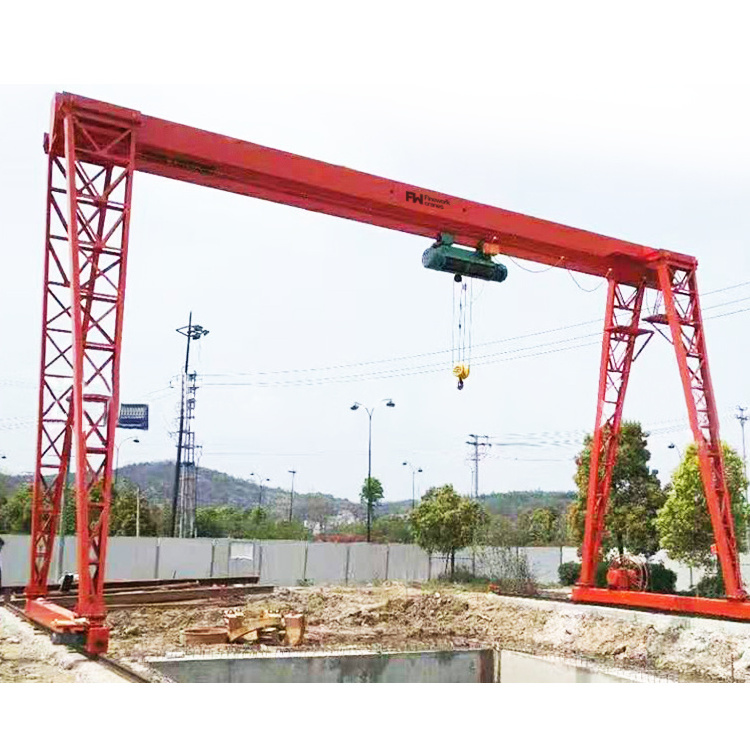

Gantry crane are a cost-effective alternative wherever the installation of bridge cranes is impractical due to a need for a raised runway structure. They are also an ideal supplement to bridge cranes at the workstation level. It can lower the investment on structure and space.
The Gantry Crane can be designed into different type to meet various requirements:
-Semi Gantry crane can minimum the cost and take full advantage of the existing building construction.
-Truss Gantry Crane can be applied where the speed of wind is high
-Gantry Crane with cantilevers to meet the requirement of loading and unloading on side area.
| Rated Load (Kg) | Working Level | Lifting Height | Lifting Speed | Tranversing speed | Traveling Speed | |
| FEM | ISO | M | M/Min | M/Min | M/Min | |
| 2000 | 1AM-4M | M3-M6 | 6/9/12/15/18 | 0.8/5 | 2~20 | 3~30 |
| 3200 | 1AM-4M | M3-M6 | 6/9/12/15/18 | 0.8/5 | 2~20 | 3~30 |
| 5000 | 1AM-4M | M3-M6 | 6/9/12/15/18 | 0.8/5 | 2~20 | 3~30 |
| 6300 | 1AM-4M | M3-M6 | 6/9/12/15/18 | 0.8/5 | 2~20 | 3~30 |
| 8000 | 1AM-4M | M3-M6 | 6/9/12/15/18 | 0.8/5 | 2~20 | 3~30 |
| 10000 | 1AM-4M | M3-M6 | 6/9/12/15/18 | 0.8/5 | 2~20 | 3~30 |
| 12500 | 1AM-3M | M3-M5 | 6/9/12/15/18 | 0.8/5 | 2~20 | 3~30 |
| 16000 | 1AM-3M | M3-M5 | 6/9/12/15/18 | 0.66/4 | 2~20 | 3~30 |
| 20000 | 1AM-3M | M3-M5 | 6/9/12/15/18 | 0.66/4 | 2~20 | 3~30 |
| 25000 | 1AM-3M | M3-M5 | 6/9/12/15/18 | 0.8/3.2 | 2~20 | 3~30 |
| 32000 | 1AM-3M | M3-M5 | 6/9/12/15/18 | 0.8/3.2 | 2~20 | 3~30 |
| 40000 | 1AM-3M | M3-M5 | 6/9/12/15/18 | 0.8/3.2 | 2~20 | 3~30 |
| 50000 | 1AM-3M | M3-M5 | 6/9/12/15/18 | 0.8/3.2 | 2~20 | 3~30 |
| 63000 | 1AM-3M | M3-M5 | 6/9/12/15/18 | 0-2.9 | 2~20 | 3~30 |
| 80000 | 1AM-2M | M3-M4 | 6/9/12/15/18 | 0-2.9 | 2~20 | 3~30 |
Features:
1. Capacity: 3-200t
2. Span: 12-30m
3. Lifting height: MAX 40m
4. Ambient Temperature: -25~40℃
5. Power Supply: 380V,415V or as Per Request
Product Application:
This crane is widely applied to do loading and unloading work in outdoor. Such as material stocks area, cement plant, granite industry, construction industry, and engineering industry and so on. It has features of beautiful and durable appearance, perfect performance, low cost, easy maintenance, high adaptability and so on.
The overhead crane Application:
The overhead crane always used in heavy steel plants, rolling plants, mines, paper plants, Paper& pulp plants, cement plants, power plants, hydroelectric power, pipe mills, waste disposal, metallurgy, rail transite, automobiles, food/pharmaceutics industry.
We have professional engineers who can guide the installation online, or arrange someone to install it for customers
Our products include EOT cranes, gantry crane, jib crane, electric hoist, and other types of cranes like explosion - proof, insulation, metallurgy and foundry, etc.
Over the years we always dedicated to develop and manufacture high quality crane and hoist, our European type cranes and electric hoists fully comply to FEM/DIN standard. We have acquired the certificates of IS09001, ISO14001, and CE, etc.
Our products have been exported to USA, Britain, Mexico, Argentina, Peru, Russia, Indonesia, Thailand, India, Vietnam, and other countries and regions.
1.Is your products customized?
Yes.because the working condition is different, all our products are customized, depending on the detail require, so if you give us more information, the accurate solution we can prepare for you.
2.What the information should i provide when i am inquiry?
The more information you provide, the accurate solution prepare for you! The information such as lifting height, lifting capacity, span, power source or other specials you provide will be much appreciated.
3.How many operation methods for my selection?
The standard operation methods we provide is pendent controller with push buttons, meanwhile,we also can provide remote control with push buttons or the cabin.
4.The space of my workshop is limited, can the crane is ok for me?
For low headroom workshop, we have special products. The details dimension our engineer will be design for you.
