- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
VINSON
-
Dimension(L*W*H):
-
customized
-
Weight:
-
0.5 KG
-
Working Temperature Range:
-
30 - 250 ℃
-
Core Components:
-
silicone heater
-
Thickness:
-
1.5mm -3mm
-
Operation temperature::
-
250 ℃
-
Heating element:
-
Ni-Cr resistance wire
-
Shape:
-
customized
-
thermostat:
-
knob/digital
-
Lead wire:
-
300-1500mm
-
3M self-adhesive:
-
with or w/o
-
thermocouple:
-
K/J
-
thermistor:
-
NTC/PT100/PT1000
Quick Details
-
Type:
-
Band Heater
-
Power Source:
-
Electric
-
Voltage:
-
12V-480V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
VINSON
-
Dimension(L*W*H):
-
customized
-
Weight:
-
0.5 KG
-
Working Temperature Range:
-
30 - 250 ℃
-
Core Components:
-
silicone heater
-
Thickness:
-
1.5mm -3mm
-
Operation temperature::
-
250 ℃
-
Heating element:
-
Ni-Cr resistance wire
-
Shape:
-
customized
-
thermostat:
-
knob/digital
-
Lead wire:
-
300-1500mm
-
3M self-adhesive:
-
with or w/o
-
thermocouple:
-
K/J
-
thermistor:
-
NTC/PT100/PT1000

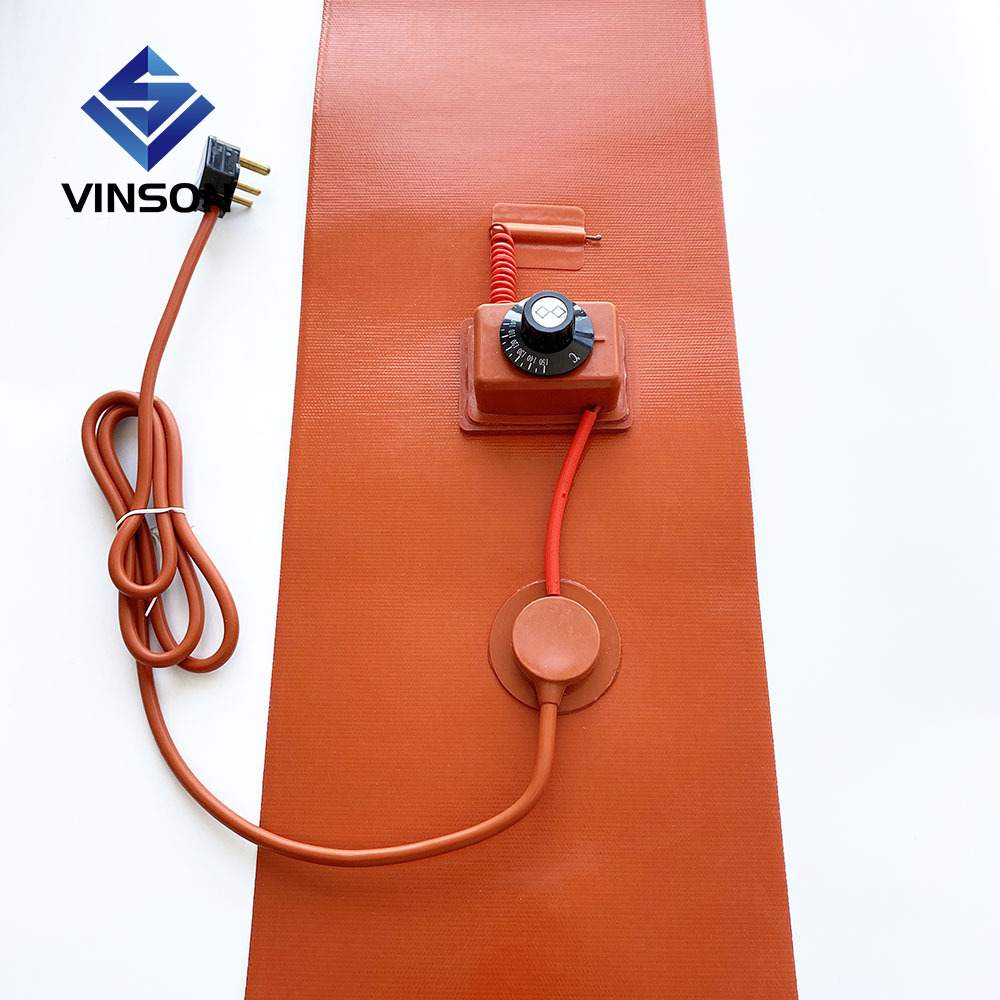

250x1740mm 220v 2000w electric flexible silicone rubber 200l oil drum heating
Product Description
High temperature Flexible silicone rubber heater engine oil pan silicone rubber heater with 3M adhesive
Silicone rubber heater is made of silicone rubber and glass fiber cloth are compounded sheet, Silicone rubber heater has good flexibility, can be associated with an object to be heated is close contact.With these heaters, heat can be placed where it is needed. In the application process these heaters improve heat transfer, speed warm ups and decrease wattage requirements. Fiberglass-reinforced silicone rubber gives the heater dimensional stability without sacrificing flexibility. Because very little material separates the element from the part, heat transfer is rapid and efficient. The heaters are constructed with a wire-wound element or an etched foil element. The heater construction creates a very thin heater allowing it to fit applications where space is limited.
|
Model
|
round,square, Rectangular (any shaped)
|
|
|
Maximum Operating Temperatures
|
250 °C
|
|
|
Thickness
|
1.5mm standard
|
|
|
Voltage
|
1.5-400V
|
|
|
Wattage
|
0.1-1w/cm2
|
|
|
Thermostat
|
with or W/O
|
|
|
Thermistor
|
with or W/O
|
|
|
3M self-adhesive
|
yes or no
|
|
|
Note:
1.We support OEM order,and print Brand or Logo on surface. 2.We can custom silicone subber heaters specially(According to your size,voltage,power etc.) 3.Any shaped is available |
|
|
Standard Oil drum Silicone Rubber heater:
|
Volume
|
200Liter
|
200Liter
|
20Liter
|
20Liter
|
100Liter
|
|
OD(oil barrel)
|
580mm
|
580mm
|
300mm
|
300mm
|
580mm
|
|
Size
|
250x1740mm
|
125x1740mm
|
200x860mm
|
120x860mm
|
250x1250mm
|
|
Voltage & wattage
|
220v/2000w
|
220v/1000w
|
220v/800w
|
220v/500w
|
220V/1500W
|
|
Adjusted Temperature
|
30-150 °C/0-400C
|
30-150 °C/0-400C
|
30-150 °C/0-400C
|
30-150 °C/0-400C
|
30-150 °C/0-400C
|
|
Weight(kg)
|
1.4
|
1
|
0.8
|
0.7
|
1.2
|
|
Waterproof
|
IP68
|
IP68
|
IP68
|
IP68
|
IP68
|
Liquefied gas cylinder heating belt
|
Capacity
|
15KG
|
15KG
|
50KG
|
|
Size
|
100x970mm
|
150x970mm
|
120x1250mm
|
|
Voltage & wattage
|
220V/300W
|
220V/350W
|
220V/400W
|
|
Adjusted Temperature
|
30-150 °C/0-400C
|
30-150 °C/0-400C
|
30-150 °C/0-400C
|
|
weight (KG)
|
0.5
|
0.6
|
0.8
|
Ammonia bottle heating blanket
|
Volume
|
47L
|
470L
|
930L
|
|
Size
|
1100x690mm
|
1600x800mm
|
2000x1000mm
|
|
Heating size
|
1000x600mm
|
1400x700mm
|
1600x900mm
|
|
Voltage & wattage
|
220V/3000W
|
220V/4000W
|
220V/6000W
|
|
Thermocuple
|
2pcs K thermocuple
|
3pcs K thermocouple
|
3pcs K thermocouple
|
|
Thermostat
|
2pcs
|
3pcs
|
3pcs
|
Certifications
Detailed Images
Advantages of silicone rubber heater:
•Dimensional stability
•Economical
•Excellent Dielectric Properties
•Superior Heat Transfer
•Uniform Heat Output
Specifications:
• Sizes: up to 36" wide (consult factory)
• Standard Thickness: 0.030", 0.043", 0.056''
• Maximum Operating Temperature: 400°F (204°C) intermittent
• Minimum Operating Temperature: -60°F (-50°C)
• Maximum Watt Density: 60 watts/in²
• Maximum Voltage: 600 volts
• Wattage Tolerance: standard +5% -10%
Mounting Methods:
• Pressure Sensitive Adhesive Surface (PSAS)
• Silicone contact cement kit
• Field applied adhesive
• Mechanical fasteners
• Factory bonding
• Silicone contact cement kit
• Field applied adhesive
• Mechanical fasteners
• Factory bonding
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
120 (L) * 120 (W) * 120 (D)
|
|
|
Weight
|
300KG
250x1740mm 220v 2000w electric flexible silicone rubber 200l oil drum heating
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
