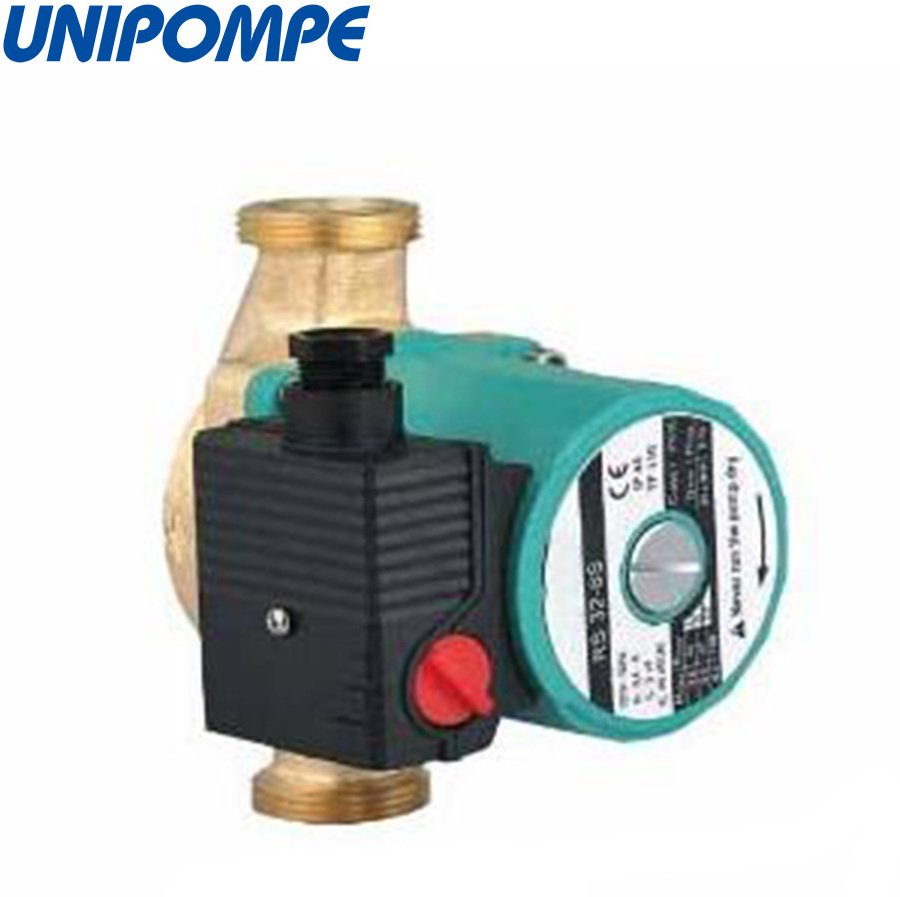

Brass head mini water circulation pump

8 Non-overloading 1-phase induction motor (n=2850rpm)
8 Insulation Class F
8 Protection grade IP44

8 Flow rate up to 65 L/min
8 Head up to 6m

8 Inlet/Outlet: 3/4'', DN25mm

8 Fluid temperature: -10 °C ~ +110 °C
8 Max. ambient temperature +40 °C
8 Max. working pressure up to 10 bar

Pump shaft in the horizontal plane

8 Screwed end single head pump
8 Manual 3-speed control or flow switch automatic control
8 Non-overloading Single phase motor
8 Cast iron body, Brass pump head 180mm port-to-port

8 Pump body: Brass
8 Impeller: PP (SS304)
8 Shaft: Porcelain or stainless steel
8 Bearing: Ceramic

WARRANTY: 1 YEAR (according to our general sales conditions)

Q1.What will you do for after sale?

A: We will follow up and await your feedback after we delivery the goods to you.

Q2.Why did you choose us?

A:We have more than 10 years of experience in designing, manufacturing and trading a wide variety of pumps  and pump fittings.

Q3.How does your factory do regarding quality control?

A:Quality is priority, and we will do 100% quality inspection before shipment.

Q4.Can we use our own logo and design?

A: Yes, you can. We'll produce pump on your brand and according to your design.

Q5.What's the delivery time of your products?

A: Usually the delivery time is 30-45 days after confirming order and detail. Delivery time is depend on your purchasing quantity and production season .
