Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VANHUA/OEM
-
Model Number:
-
VH-NB80VF-B26P
-
Style:
-
Bullet Camera
-
Technology:
-
NetWork P2P
-
Product name:
-
8MP varifocal lens PoE bullet IP camera
-
lens:
-
2.7~13.5mm manual varifocal lens
-
Resolution:
-
3840 x 2160(8MP)
-
IR Distance:
-
40m
-
Image Sensor:
-
1/2.8" Sony IMX415 CMOS sensor
-
SoC:
-
SSC339Q
-
Housing:
-
Weatherproof metal housing
-
Video Compression:
-
H.265+/H.265/H.264+/H.264
-
Feature:
-
Human & Vehicle Detection
Quick Details
-
Special Features:
-
Built-in PoE, Humanoid & Vehicle Detection
-
Function:
-
NIGHT VISION, Waterproof / Weatherproof
-
Customized support:
-
Online technical support, Customized logo, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VANHUA/OEM
-
Model Number:
-
VH-NB80VF-B26P
-
Style:
-
Bullet Camera
-
Technology:
-
NetWork P2P
-
Product name:
-
8MP varifocal lens PoE bullet IP camera
-
lens:
-
2.7~13.5mm manual varifocal lens
-
Resolution:
-
3840 x 2160(8MP)
-
IR Distance:
-
40m
-
Image Sensor:
-
1/2.8" Sony IMX415 CMOS sensor
-
SoC:
-
SSC339Q
-
Housing:
-
Weatherproof metal housing
-
Video Compression:
-
H.265+/H.265/H.264+/H.264
-
Feature:
-
Human & Vehicle Detection

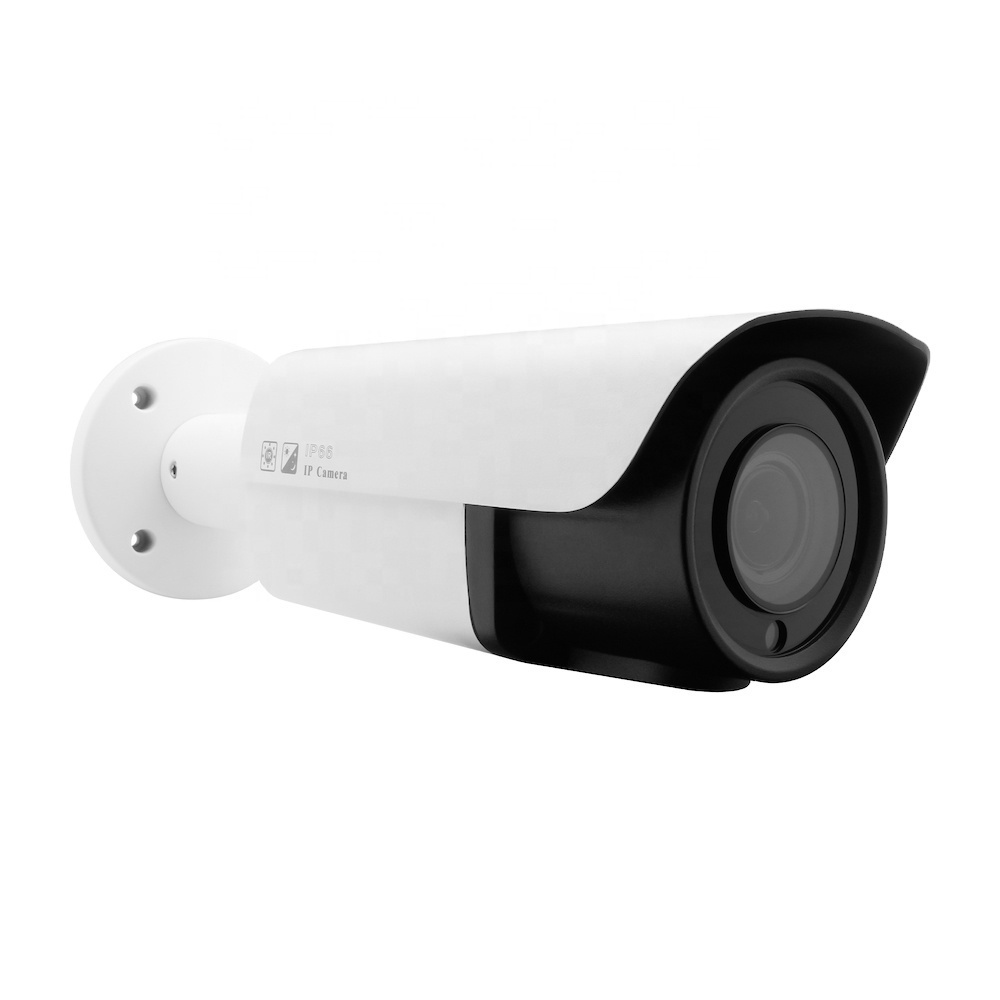

Outdoor 8MP 2.7~13.5mm manual varifocal lens PoE bullet IP camera
Max. 3840 x 2160@30fps
2.7~13.5mm manual varifocal lens
Up to 40m night vision range
H.265+, H.265, H.264+, H.264, JPEG, AVI, MJPEG
Min. illumination 0.01 Lux
Smart function: humanoid detection, vehicle detection(2MP camera no vehicle detection function)
ONVIF, 2D & 3D DNR, DWDR, AWB, AGC, BLC
Metal housing, IP66
| Camera | ||||
| Model No. | VH-NB12VF-B26P | VH-NB80VF-B26P | VH-NB50VF-B26P | VH-NB20VF-B26P |
| Image Sensor | 1 /2.3" Sony IMX577 CMOS sensor | 1 /2.8" Sony IMX415 CMOS sensor | 1/2.8" Sony IMX335 CMOS sensor | 1/2.8" Sony IMX307 COMS sensor |
| SoC | SSC359G | SSC339Q | SSC338Q | SSC335 |
| Pixel | 12MP | 8MP | 5MP | 2MP |
| Effective pixels | 4000(H) x 3000(V) | 3840(H) x 2160(V) | 2592(H) x 1944(V) | 1920(H) x 1080(V) |
| Compression |
H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG |
|||
| Min. Illumination | 0.01Lux @ F1.2(AGC on), 0Lux IR on | |||
| TV System | PAL/NTSC | |||
| Shutter Speed | Auto: PAL 1/25-1/10 000S; NTSC 1/30-1/10 000S | |||
| S/N Ratio | ≥52dB | |||
| Scaning System | Progressive | |||
| Video Output | Network | |||
| Reset Button | / | |||
| Lens | ||||
| Focal length | 3.6~10mm manual vari-focal lens(3.6~10mm motorized lens is optional) | 2.7~13.5mm vari-focal l ens(2.7~13.5mm motorized lens is optional) | 2.7~13.5mm vari-focal lens(2.7~13.5 motorized lens is optional) | 2.8~12mm vari-focal lens(2.8~12mm motorized lens is optional) |
| Focus Control | Auto focus | |||
| Pixel | 12MP | 8MP | 5MP | 2MP |
| Night Vision | ||||
| IR LED | 20PCS SMD IR LEDs | |||
| IR Distance | Up to 40m | |||
| LED Status | Auto control | |||
| LED Power On | Smart, manual, timing | |||
| Network | ||||
| Ethernet |
RJ-45 (10/100Base-T) |
|||
| Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, SMTP, UDP, SNMP | |||
| ONVIF |
Support ONVIF 17.06 |
|||
| P2P | Yes, support QR code | |||
| PoE | Internal, support IEEE802.3.af | |||
| Video Delay | 0.3S(within the Lan) | |||
| Main Stream 1 |
4000 x 3000@30fps
3840 x 2160@30fps 3072 x 2048@30fps 2592 x 1944@30fps 2592 x 1520@30fps 1920 x 1080@30fps |
3840 x 2160@30fps 3072 x 2048@30fps 2592 x 1944@30fps 1920 x 1080@30fps |
2592 x 1944@30fps 1920 x 1080@30fps |
1920 x 1080@30fps 1080 x 720@30fps |
| Main Stream 2 | / | |||
| Sub Stream 1 |
72 0 x 480@30fps 640 x 480@30fps |
|||
| Tri Stream |
/ |
|||
| Brower | IE8-11, Google Chrome, Firefox, Safari | |||
| App | Danale, support both iOS & Android cellphone and pad | |||
| AI Function | ||||
| Intelligent Analysis | Humanoid Detection, Vehicle detection | |||
| Camera Features | ||||
| Day/Night | Color | |||
| Image Configuration | Saturation, brightness, contrast, sharpness, mirror, 3D NR, white blance, FLK (flicker control), video tampering, DWDR, distortion | |||
| Corridor Pattern | Support | |||
| Defog Mode | Support | |||
| ROI | Support | |||
| BLC | Support | |||
| WDR | DWDR | |||
| Motion Detection | Support | |||
| Privacy Masking | 3 rectangular zone | |||
| Recording Mode | NVR/CMS/Web | |||
| Language | Chinese, English | |||
| Interface | ||||
| Audio | Optional | |||
| Alarm | Optional | |||
| SD Card Slot | Optional | |||
| General | ||||
| Housing | Metal, IP66 | |||
| Anti-cut Bracket | No | |||
| IR Cut Filter | Yes | |||
| Operation Condition | -30~+60℃, RH90% max | |||
| Storage Condition | -30~+60℃, RH 90% max | |||
| Power Supply | DC12V±10%, 1500mA | |||
| Dimensions | 262(L) x 73(H) x 75(D)mm | |||
| Weight | 1.4KG | |||
| Package | 1PC/color box, 31 x 11 x 11CM, 1.55KG, 12PCS/carton, 48 x 34 x 37CM, 19.2KG | |||
