Quick Details
-
Warranty:
-
24 months, 24months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Noran
-
Model Number:
-
NR021
-
Product name:
-
speed limiter
-
Network:
-
GSM GPRS 2G 3G 4G WCDMA LTE
-
Applications:
-
web tracking system and mobile APP
-
Software support:
-
free web system
-
main functions:
-
speed limiter and GPS point record
-
Feature:
-
fuel monitoring , Geofence
-
Color:
-
Black
-
engine cut off:
-
Control engine remotely
Quick Details
-
Positioning Mode:
-
GSM, GPS, GPRS, GLONASS, Real-Time Positioning, Emergency Positioning, Power Saving Mode
-
Function:
-
Loop recording, Voice Monitor, street view, ACC Detection, Over-Speed Warning, Wheel Path Playback, Geofence
-
Data Storage:
-
Other, TF Card, Cloud Storage
-
Warranty:
-
24 months, 24months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Noran
-
Model Number:
-
NR021
-
Product name:
-
speed limiter
-
Network:
-
GSM GPRS 2G 3G 4G WCDMA LTE
-
Applications:
-
web tracking system and mobile APP
-
Software support:
-
free web system
-
main functions:
-
speed limiter and GPS point record
-
Feature:
-
fuel monitoring , Geofence
-
Color:
-
Black
-
engine cut off:
-
Control engine remotely
|
Working Voltage
|
80,000 Hours
|
Voltage
|
DC 12V-14V
|
|
Size
|
92*65*26mm
|
Application
|
car truck bus vehivle
|
|
Input Fuse
|
5A
|
Options
|
Microphone & earphone
|
|
Working Temperature
|
-40~85°C
|
Warranty
|
2 years
|
|
Item Name
|
speed limiter
|
Function
|
real-time tracking
|
|
Humidity
|
10% to 90%
|
MOQ
|
5 Piece
|
|
CPU
|
TI:MSP430F149(100MHz)
|
Price
|
38.00--45.00 USD
|
|
GSM Module
|
GSM Module:SIM800 /SIM5320(3G)
Band:850/1900 850/2100 900/2100MHz(3G)
|
GPS Module
|
GPS chip set: SiRF Star III
Frequency: L1, 1575.42 MHz
|

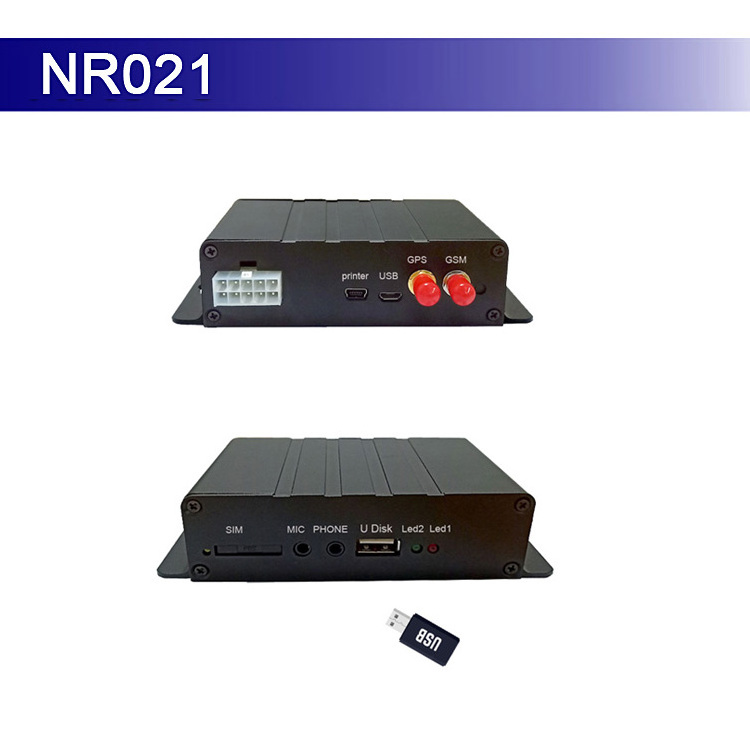

1. 10 PIN interface
2. 2G 3G 4G module(GSM/WCDMA/LTE )
3. Sirf4 GPS module
4.4 input IO ports , 2 USB ports
5. Overspeed alarm and speed limited
6. Flash memory can save 72 hours data
7. backup battery for uninstall alarm
8. ODOmeter wire
9. Size:18.5mm*12mm*24mm
10. Micphone&earphone interface:3.5mm
11. Support TCP/UDP/HTTP protocol
12. Optional:Fuel sensor / pritner
13. Work voltage: 6V~ 60V
14. Operating Temperature:-45°C ~75°C
15. Working current:<110mA@12V,Standby current:<10mA@12V
16. Humidity: 5%~95%
1. Real time uploads location information via time/distance interval
2. Image transmit (take photos by digital camera)
3. Real-time Positioning & Tracking by SMS or internet
4. SOS Function & Power-cut Alert
5. Audio Monitoring
6. Geo-fence & Over Speed Alert
7. Fuel level Monitoring
8. Remote controlling oil & circuit by SMS or internet
9
. ACC/Door/Trunk/bonnet/shock Alert
10. Special Vehicle Monitoring (dump trucks pouring, mixers rotating, etc.)
11. Built-in backup battery ,low battery alert ,unauthorized dismantle alert
12. GPS & A-GPS (LBS-location based service)
13. Fuel sensors ,Temperature sensor, Flash memory (optional)
14.Support google map
15.Show location directly on mobile phone with HTTP google map link
16.Absolute street address request by SMS.
Positioning and tracking:
through the on-line positioning platform or the cell
phone to locate at anytime, and get the working status. You can choose the
positioning Platform by yourself
Geo-fence Mode:
Set up a geo-fence for the unit to restrict its movements
within a district. The unit will send the message to the authorized numbers
then it breaches the district
Fuel Monitoring:
Remote monitoring vehicle fuel (oil, oil spills, oil steals, fuel consumption, etc.)
Fuel monitoring real time, fuel anti theft alarm and fuel curve
we provice web based tracking system, mobile APP, and flee management,easy to monitor by mobile and PC
We have developed more than 8 type 2G 3G 4G version GPS tracker, mini GPS tracker NR006, NR108, portable GPS tracker NR200,OBD GPS tracker NR100, NR-B20, NR-B80, camera GPS tracker NR024 , Kids & Pet GPS tracker , and customize hardware and fireware for our customers.
1. We provid e free web tracking system, Android and IOS APP.
2. Our device can send data to your own server, Open Source SDK and API for integrate (sample source code:C/C++,Java,C#)
3. we can guide you to install the tracking system into your server if you have own server.
4. We provide OEM and ODM services, it is free if you only add logo and company name.
5. Warranty: 24-month
6. we provide Technical support online (skype: smartkw , wechat ID: 99513209
Noran International Technology Co.,LTD established in September 2007. We are engaged in the R&D manufacture of GPS tracker and Navigation products and fleet management, we have full hardware and software department, provide OEM and ODM service. GPS tracker series products are sold to more than 80 contrys in the world, Navigation products are sold to more than 30 contrys, built more than 30 servers in the world
