Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
ZLTC
-
Model Number:
-
SMA905-SMA905
-
Keywords:
-
SMA905
-
Shell material:
-
High quality Plastic
-
Market:
-
Global
-
MOQ:
-
2pcs
-
Shipping by:
-
Express Delivery
-
Terms of trade:
-
T/T
-
Warranty:
-
1 Year
-
Temperature Range:
-
-40 ~+85
-
Packing:
-
PE Bag+carton Box
Quick Details
-
Type:
-
Connector
-
Application:
-
Power
-
Gender:
-
Other
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
ZLTC
-
Model Number:
-
SMA905-SMA905
-
Keywords:
-
SMA905
-
Shell material:
-
High quality Plastic
-
Market:
-
Global
-
MOQ:
-
2pcs
-
Shipping by:
-
Express Delivery
-
Terms of trade:
-
T/T
-
Warranty:
-
1 Year
-
Temperature Range:
-
-40 ~+85
-
Packing:
-
PE Bag+carton Box

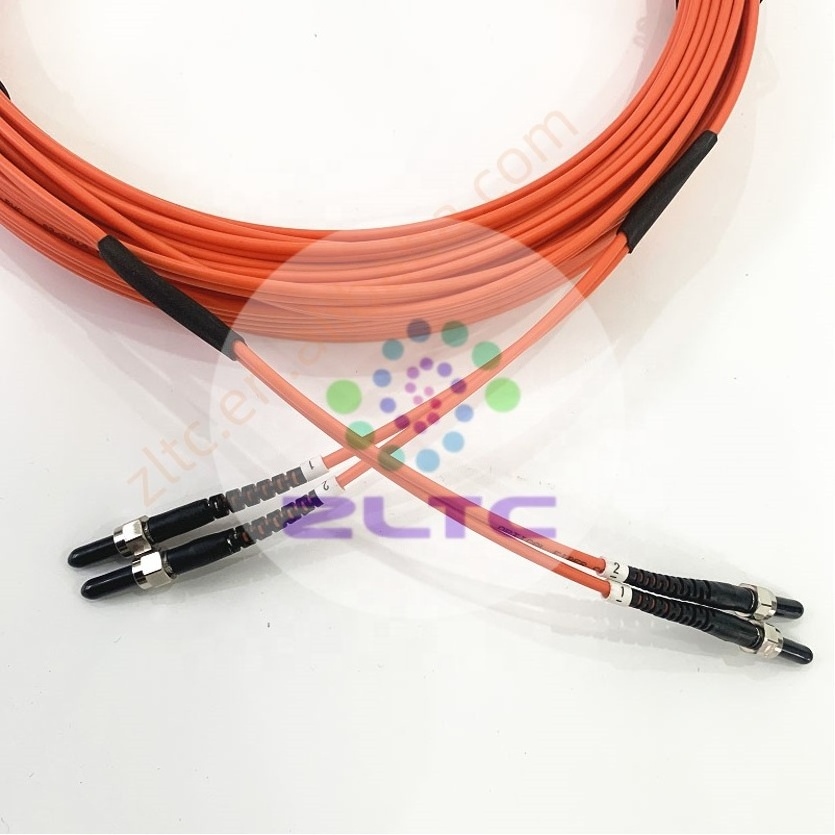

SMA905 fiber connector assamblies are the ZLTC manufactured High quality fiber connectors for high power laser and Solid Yag laser big power transmission projects using ,which is fully have widely application and using field ,for example the different power laser sources and some industrial equipments ...
Applications & Features
●Applied in aviation, electronics, ships and other systems for multiplexed optical communication
● outer casing can choose different materials and coatings to adapt to different environmental requirements
● five key location, there are blind mating and error proofing interpolation function
● three Screw thread quick connect, and with anti-release mechanism
● ceramic pin and sleeve contacts to achieve precision docking
● There are many variations of the optional rear
● With adapter socket (optional hermetic seal) form, get rid of the shackles of cable
Parameter
● Insertion loss: ≤0.6dB ·
● Working temperature: -55 ℃ ~ + 85 ℃
● Vibration: 10Hz ~ 2000Hz, power spectral density 0.4G2 / Hz
● Shock: 2940 m / s2, duration of 3ms, the rate of change of velocity 2.96m / s
● Mechanical life: 500 times
● tensile strength: ≥68N (2mm contacts jumper)
● Gas tightness (applies to airtight adapter socket): gas leakage ≤1 * 10-9 Pa.m3 / S and external pressure is 1 atm
● ≥1000h (stainless steel, aluminum, cadmium plated ≥48h (aluminum nickel-plated)
Name
|
Parameters
|
Name
|
Parameters
|
Optical Insertion Loss
|
9/125: 0.75 dBmax, 0.35 dB typ 62.5/25: 0.75 dB max, 0.14 dB typ
|
Humidity
|
10 cycles per EIA-455-5
|
Return Loss
|
>30 dB MMF, >40 dB SMF
|
Fluid Immersion
|
1 meter, per EIA-455-12
|
Mating Durability
|
2000 cycles per EIA-455-21
|
Crush Resistance
|
450 lbs, per EIA-455-26
|
Vibration
|
10 g’s per EIA-455-11
|
Cable Retention
|
400 lbs, per EIA-455-6
|
Physical Shock
|
per EIA-455-14, test condition A
|
Cable Seal Flexing
|
Per EIA-455-1
|
Thermal Shock
|
-62°C to +85°C per EIA-455-71, cond. B
|
Operation Temp.
|
-55℃ to 85℃
|
Temperature Life
|
250 hours at 85°C per EIA-455-4
|
Storeage Temp.
|
-55℃ to 85℃
|
Corrosion Resistance
|
EIA-455-16, test condition C
|
IP Rate
|
IP68
|
