Quick Details
-
Product name:
-
Total Station
-
Model:
-
R1+
-
Magnification:
-
30X
-
Angle accuracy:
-
2''
-
Single Prism:
-
6000m
-
Imaging:
-
Erect
-
Image:
-
1°30 '
-
Memory:
-
120000
-
Display:
-
LCD Display
-
Application:
-
Surveying
Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Unistrong
-
Model Number:
-
R1+
-
Product name:
-
Total Station
-
Model:
-
R1+
-
Magnification:
-
30X
-
Angle accuracy:
-
2''
-
Single Prism:
-
6000m
-
Imaging:
-
Erect
-
Image:
-
1°30 '
-
Memory:
-
120000
-
Display:
-
LCD Display
-
Application:
-
Surveying

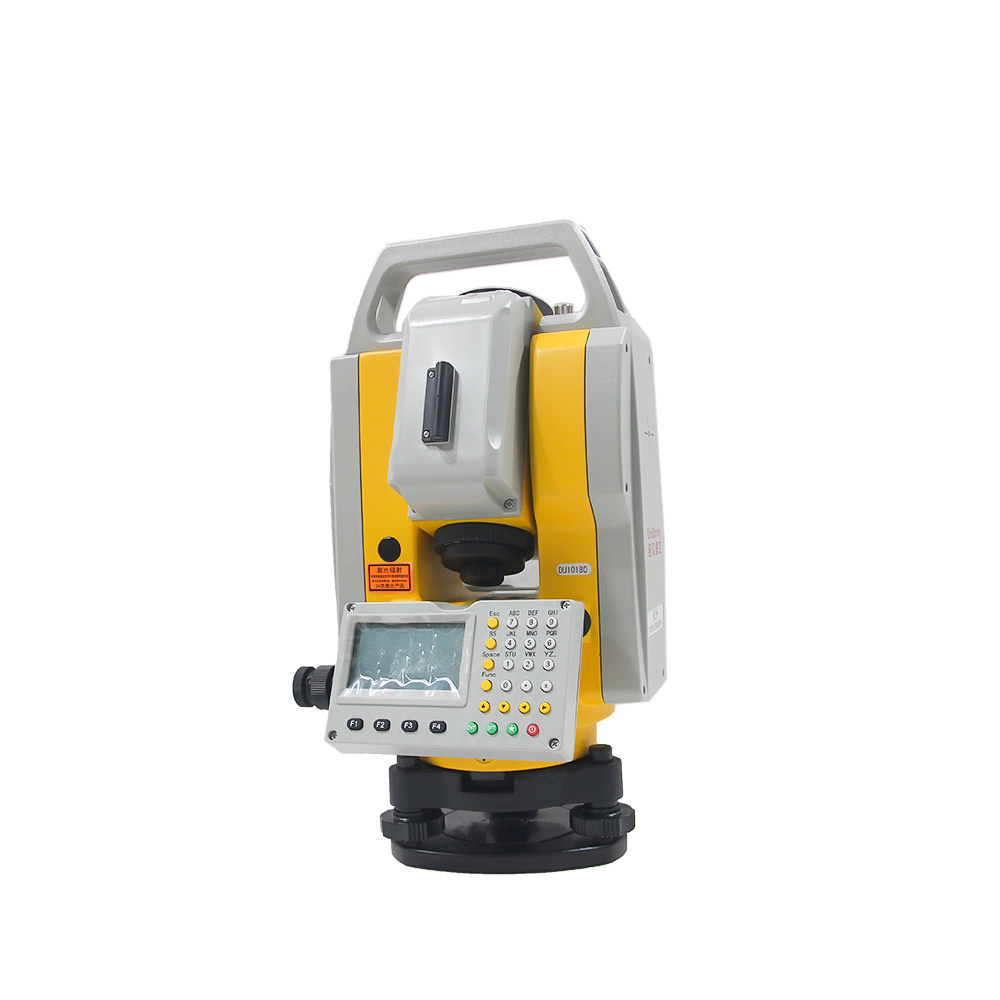

Unistrong R1+ Surveying Instrument Total Station Without Prism 600m Reflectorless Total Station
| Telescope | |
| Image: | Positive field of view: 1°30 ' |
| Objective effective aperture: | Φ50mm resolution: 3" |
| Magnification: | 30X |
| minimum viewing distance: | 1.0m |
| Ranging | |
| Precision: | ±(2mm+2×10-6·D) |
| Measuring distance: | 600m/ prism-free; 1200m/ reflector; 6000m/ single prism |
| Fine test: | 0.5S |
| Angle measurement | |
| Angle measurement method: | absolute coding |
| Angle measurement accuracy: | 2" |
| Minimum reading: | 1 "/5" |
| Compensator | |
| Compensation range: | ±3 ' |
| Power supply: | Operating voltage: 7.4V DC (rechargeable lithium-ion battery) |
| Working time: | continuous Angle measurement and ranging about 12 hours, continuous Angle measurement about 45 hours |
| Others | |
| Communication: | RS-232C/USB/SD card/Bluetooth (optional) |
| Memory: | 120000 |
| Waterproof, dustproof: | IP66 |
