Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TWINTEX
-
Model Number:
-
TP60-20S
-
Output Current:
-
0~20A
-
Certification:
-
CE
-
Application:
-
Laboratory use, Factory Test Use
-
Protections:
-
OVP, OCP, OTP, OPP
-
Feature 1:
-
Adjustable OVP range
-
Feature 2:
-
Coarse and Fine control for voltage and current
-
Feature 3:
-
Intelligent temperature control cooling fan
-
Feature 4:
-
4 digits dual LED display
-
Feature 5:
-
Customer specifications acceptable
-
Efficiency:
-
90%
-
Product Name:
-
regulated power supply
Quick Details
-
Output Power:
-
1200W
-
Input Voltage:
-
220Vac
-
Output Voltage:
-
0~60V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TWINTEX
-
Model Number:
-
TP60-20S
-
Output Current:
-
0~20A
-
Certification:
-
CE
-
Application:
-
Laboratory use, Factory Test Use
-
Protections:
-
OVP, OCP, OTP, OPP
-
Feature 1:
-
Adjustable OVP range
-
Feature 2:
-
Coarse and Fine control for voltage and current
-
Feature 3:
-
Intelligent temperature control cooling fan
-
Feature 4:
-
4 digits dual LED display
-
Feature 5:
-
Customer specifications acceptable
-
Efficiency:
-
90%
-
Product Name:
-
regulated power supply

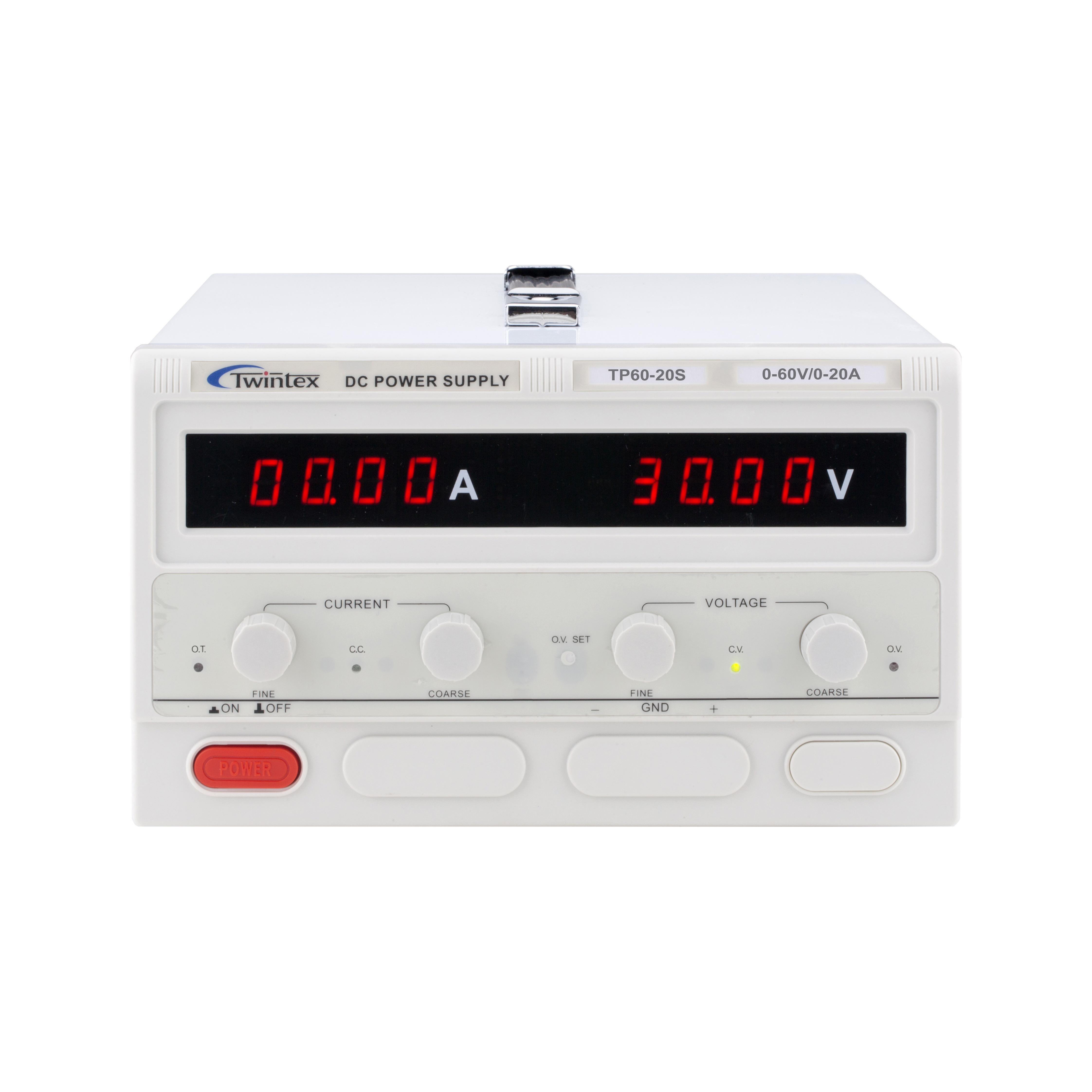

1200W 60V 20A Super Power Intelligent Overcurrent Protection Lab Power Supply For Repair Mobile Phone
200W~5000W 30V 30A China Factory Price Digital Switch Mode Laboratory AC DC Adjustable Regulated Power Supply TP60-20S
Features
Max. output power ranging from 150W to 5000W
Max. output voltage 600V, Max. output current 200A
Applying advanced PWM control technology
Compact design and light weight (3~10kg)
Constant voltage and constant current operations
Auto CV/CC switch
Coarse and Fine control for voltage and current
Over voltage, over current, over temperature and over power protections
Adjustable OVP range, OCP fixed 105% of Max. current range
Intelligent temperature control cooling fan
Customized specifications and functions acceptable
Specifications
|
Output capacity |
20 0W~ 5 000 W |
|
Working mode |
PWM |
|
Output |
|
|
Output voltage |
DC 0~100% full range adjustable |
|
Output current |
DC 0~100% full range adjustable |
|
O.V.P. range |
DC 1~100% rated output |
|
O.C.P. range |
DC fixed 105% max. output |
|
Line regulation |
CV ≤ 0.2% +2 digits |
|
|
CC ≤ 0.5% +2 digits |
|
Load regulation |
≤ 0.5% +2 digits |
|
Ripple & Noise |
≤ 1% rms full scale |
|
Display |
|
|
Voltmeter |
4 digits LED display |
|
Ammeter |
4 digits LED display |
|
Voltage resolution |
0.000-9.999V; 00.00-99.99V; 000.0-999.9V |
|
Current resolution |
0.000-9.999A; 00.00-99.99A; 000.0-999.9A |
|
Accuracy |
±(1 % FS + 1 d igit) |
|
Optional functions |
|
|
Display meter |
4 1/2 digits LED display (Max. display 19999) |
|
Output terminal |
On front panel; or on rear panel; or on both front and rear panels |
|
Output ON/OFF |
Front panel switch |
|
|
Terminal block or Wires on rear panel for remote control |
|
General |
|
|
Protection |
Over voltage, over current, over temperature and over load protections |
|
Operating environment |
0° C ~40° C , <80% RH |
|
Storage environment |
-1 0° C ~ 7 0° C , <80% RH |
|
Power source |
AC11 0 V/2 2 0V ±10% , 50/60Hz |
|
Input module |
Power socket or terminal block |
|
Dimension (WxHxD) |
200x150x285mm (M chassis, 200W~1250W) |
|
|
260x160x380mm (L chassis, 500W~2500W) |
|
|
260x160x440mm (XL chassis, 2250W~5000W) |
