- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
0.2 KG
-
Product name:
-
30.2° with Crossed Point Rectangle DOE Module
-
Laser Wavelength:
-
650nm/520nm/450nm
-
Laser Power:
-
100mw/50mw/100mw
-
Laser type:
-
Rectangle with Crossed Point
-
Electric Current:
-
<500mA
-
Operating Voltage:
-
DC 3-5V
-
Operating Temperature:
-
- 20°C~50°C
-
Working Time:
-
10000H
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Spare Parts Type:
-
Laser Component
-
Brand Name:
-
XinLand
-
Weight (KG):
-
0.2 KG
-
Product name:
-
30.2° with Crossed Point Rectangle DOE Module
-
Laser Wavelength:
-
650nm/520nm/450nm
-
Laser Power:
-
100mw/50mw/100mw
-
Laser type:
-
Rectangle with Crossed Point
-
Electric Current:
-
<500mA
-
Operating Voltage:
-
DC 3-5V
-
Operating Temperature:
-
- 20°C~50°C
-
Working Time:
-
10000H
Specification
|
Electric Current
|
<500mA
|
|
Operating voltage
|
DC 2.8-5.2V
|
|
Dimension
|
Φ16X70MM
|
|
Operating Temperature
|
Normal temperature
|
|
Cooling mode
|
Natural cooling
|
|
Life time
|
>8000hours
|
|
Accessories
|
Mount and power Adaptor
|
|
Warranty:
|
1 year
|
|
650nm Red Laser
|
100mw
|
|
520nm Green Laser
|
50mw
|
|
450nm Blue Laser
|
100mw
|
Products Description

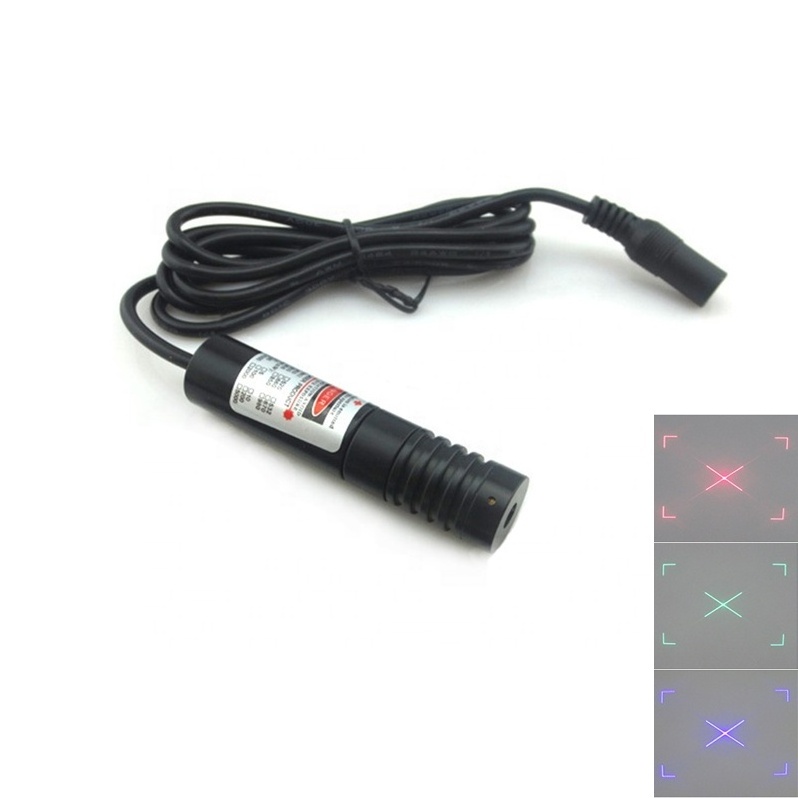

DOE Laser Module adopts high-quality laser diode, specially designed collimating lens and high stability APC drive circuit.
Indoor 12 meters / Semi-outdoor 6 meters adjustable line width and brightness.
The spot size is adjustable to meet your different usage requirements
The shell is made of aviation aluminum plated insulating paint, which can not only fully dissipate heat, but also resist shock, drop, and static electricity.
