Quick Details
-
Length:
-
length per reel as request
-
Application:
-
steel wire rope & cable
-
C Content (%):
-
<0.08
-
Si Content (%):
-
<1.0
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tianli
-
Model Number:
-
7*7
-
Wire Gauge:
-
0.6mm - 20mm
-
Product Name:
-
316 7x7 stainless steel wire rope diameter 1.5mm for security seal
-
Structure:
-
7x7
-
HS Code:
-
73121000
-
Production Standard:
-
EN 12385-4 ; GB/T 9944-2015
-
Delivery Terms:
-
EXW FOB CFR CIF
-
Certification:
-
ISO
Quick Details
-
Grade:
-
300 Series
-
Tolerance:
-
±1%
-
Steel Grade:
-
304, 316
-
Length:
-
length per reel as request
-
Application:
-
steel wire rope & cable
-
C Content (%):
-
<0.08
-
Si Content (%):
-
<1.0
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tianli
-
Model Number:
-
7*7
-
Wire Gauge:
-
0.6mm - 20mm
-
Product Name:
-
316 7x7 stainless steel wire rope diameter 1.5mm for security seal
-
Structure:
-
7x7
-
HS Code:
-
73121000
-
Production Standard:
-
EN 12385-4 ; GB/T 9944-2015
-
Delivery Terms:
-
EXW FOB CFR CIF
-
Certification:
-
ISO
7x7 Strand Winch Rope Aircraft Cable, 200FT (200 FT) 1/8 Inch T316 Stainless Steel Wire Rope
stainless
| Product Name | Stainless Wire Rope |
| Grade | 316 |
| Construction | 7x7 |
| Diameter | 1.5mm |
| Lay | Right Hand Regular Lay or Right Hand Ordianry Lay |
| Finish | Bright |
| Tensile Strength | 1570 N/mm2 |
| Packing | Hard Strong Plywood Reel |
| Length | 2500 meters |
| Diameter | Weight | Nominal Tensile Strength N/mm2 | ||||
| 1470 | 1570 | 1670 | 1770 | 1960 | ||
| mm | kg/100m | Minimum Breaking Force kN | ||||
| 0.45 | 0.08 | 0.107 | 0.114 | 0.122 | 0.129 | 0.143 |
| 0.5 | 0.10 | 0.132 | 0.141 | 0.150 | 0.159 | 0.176 |
| 0.6 | 0.14 | 0.191 | 0.203 | 0.216 | 0.229 | 0.254 |
| 0.7 | 0.20 | 0.259 | 0.277 | 0.295 | 0.312 | 0.346 |
| 0.8 | 0.26 | 0.339 | 0.362 | 0.385 | 0.408 | 0.452 |
| 0.9 | 0.32 | 0.429 | 0.458 | 0.487 | 0.516 | 0.572 |
| 1 | 0.40 | 0.529 | 0.565 | 0.601 | 0.637 | 0.706 |
| 1.2 | 0.58 | 0.762 | 0.814 | 0.866 | 0.918 | 1.016 |
| 1.5 | 0.90 | 1.191 | 1.272 | 1.353 | 1.434 | 1.588 |
| 1.6 | 1.02 | 1.355 | 1.447 | 1.539 | 1.631 | 1.806 |
| 1.8 | 1.30 | 1.715 | 1.831 | 1.948 | 2.065 | 2.286 |
| 2 | 1.60 | 2.117 | 2.261 | 2.405 | 2.549 | 2.822 |
| 2.4 | 2.30 | 3.048 | 3.256 | 3.463 | 3.670 | 4.064 |
| 3 | 3.60 | 4.763 | 5.087 | 5.411 | 5.735 | 6.350 |
| 3.2 | 4.10 | 5.419 | 5.788 | 6.156 | 6.525 | 7.225 |
| 3.5 | 4.90 | 6.483 | 6.924 | 7.365 | 7.806 | 8.644 |
| 4 | 6.40 | 8.467 | 9.043 | 9.619 | 10.195 | 11.290 |
| 4.5 | 8.10 | 10.716 | 11.445 | 12.174 | 12.903 | 14.288 |
| 5 | 10.00 | 13.230 | 14.130 | 15.030 | 15.930 | 17.640 |
| 6 | 14.40 | 19.051 | 20.347 | 21.643 | 22.939 | 25.402 |
| 8 | 25.60 | 33.869 | 36.173 | 38.477 | 40.781 | 45.158 |
| 10 | 40.00 | 52.920 | 56.520 | 60.120 | 63.720 | 70.560 |
| 12 | 57.60 | 76.205 | 81.389 | 86.573 | 91.757 | 101.606 |
Packaging & Shipping

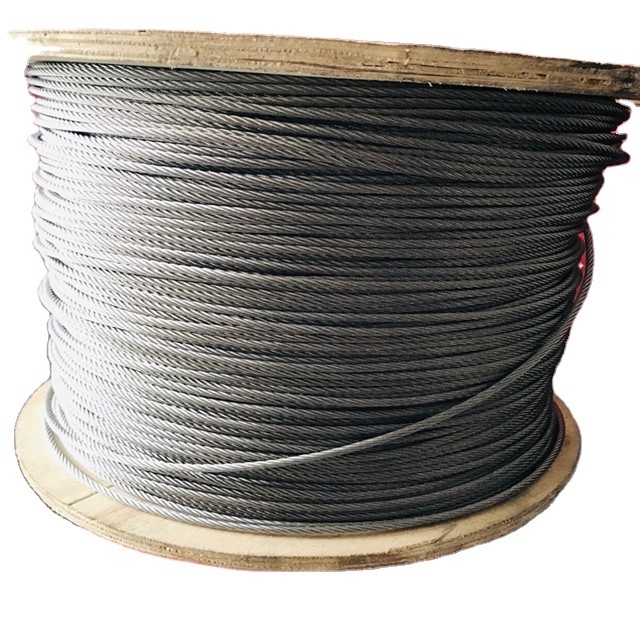

Steel Wire rope Will be pack in Reels. Chains will be pack in Wooden Box.
