•Pure sine wave inverter
•Configurable input voltage range for home appliances and personal computers via LCD setting
•Configurable battery charging current based on applications via LCD setting
•Configurable AC/Solar Charger priority vía LCD setting
•Compatible to mains voltage or generator power
•Auto restart while AC is recovering
• Overload/ Over temperature/ short circuit protection
•Smart battery charger design for optimized battery performance
•Cold start function
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JYsupsys
-
Model Number:
-
JY-6.2KW-48V
-
Input Voltage:
-
220V
-
Output Voltage:
-
220V
-
Output Current:
-
120A
-
Output Frequency:
-
50/60Hz
-
Size:
-
537*390*130
-
Certificate:
-
CE
-
Warranty:
-
24 months
-
Weight:
-
12
-
Product name:
-
Grid Solar Inverter
-
Inverter type:
-
Hybrid on/off grid Power Inverter
-
Application:
-
Solar Power System Home
-
Battery type:
-
Lead Acid \ Lithium \ Gel
-
Rated Output Power::
-
6200W
-
Maximum AC Input Current::
-
60A
-
Nominal Output Voltage::
-
200/230/240VAC
-
Output Voltage Range::
-
195.5~253VAC
-
Maximum Solar Charging Current::
-
120A
-
Power Factor::
-
1
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
98%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JYsupsys
-
Model Number:
-
JY-6.2KW-48V
-
Input Voltage:
-
220V
-
Output Voltage:
-
220V
-
Output Current:
-
120A
-
Output Frequency:
-
50/60Hz
-
Size:
-
537*390*130
-
Certificate:
-
CE
-
Warranty:
-
24 months
-
Weight:
-
12
-
Product name:
-
Grid Solar Inverter
-
Inverter type:
-
Hybrid on/off grid Power Inverter
-
Application:
-
Solar Power System Home
-
Battery type:
-
Lead Acid \ Lithium \ Gel
-
Rated Output Power::
-
6200W
-
Maximum AC Input Current::
-
60A
-
Nominal Output Voltage::
-
200/230/240VAC
-
Output Voltage Range::
-
195.5~253VAC
-
Maximum Solar Charging Current::
-
120A
-
Power Factor::
-
1
Product Description

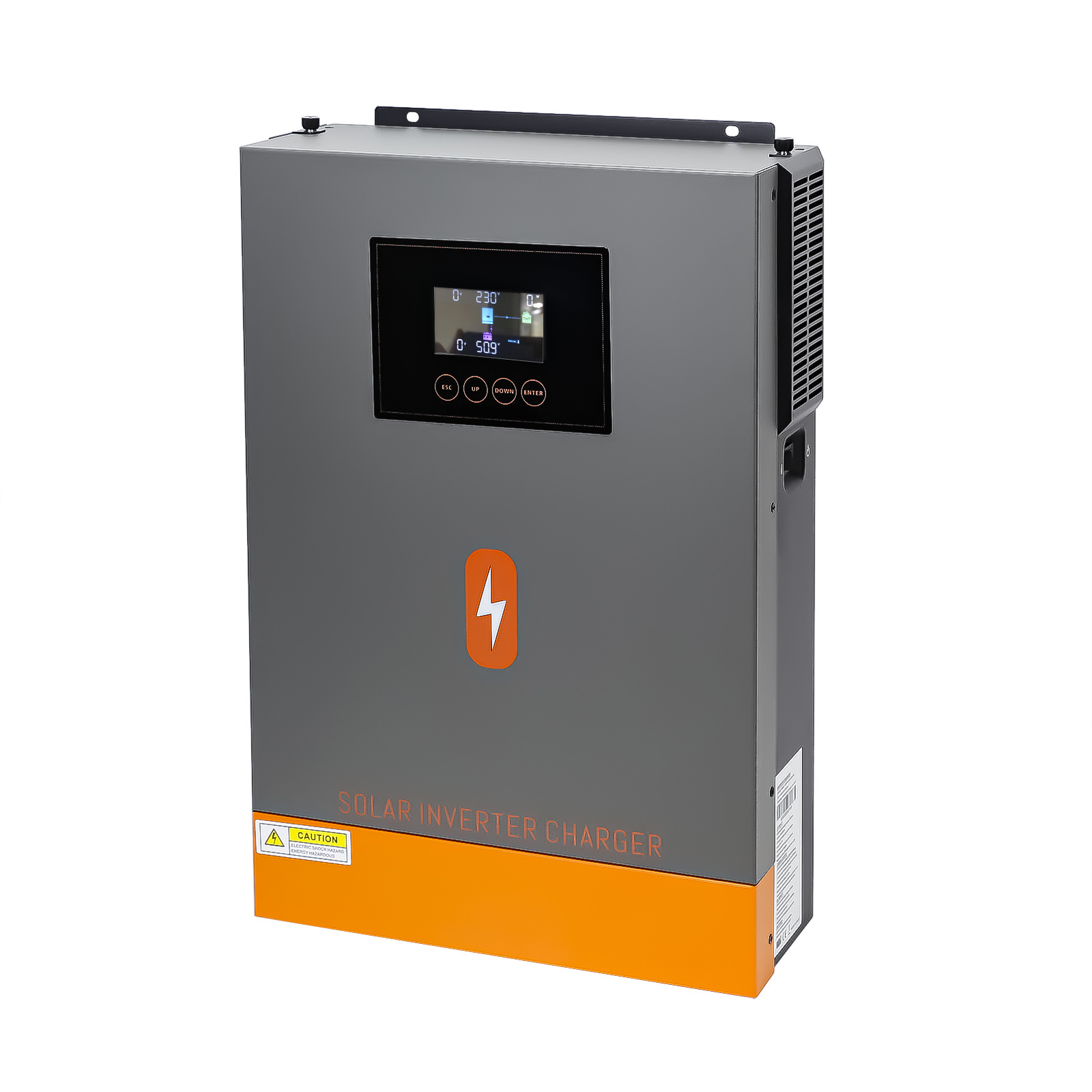

High Frequency 6.2KW 48V 220V Inverter Charger Built-in 120A MPPT Charge Controller Pure Sine Wave 6200W Hybrid Solar Inverter
This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer
uninterruptible power support with portable size.
Its comprehensive LCD display offers user-configurable and easy-accessible
button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different
applications.
The solar charging module applies the latest optimized MPPT technology to quickly track the maximum power point of the PV array in any environment and obtain the maximum energy of the solar panel in real time and output pure sine wave to convert DC into AC.
It can be widely used in DC to AC areas, such as solar AC power system, vehicle system, RV power supply, security monitoring system, emergency lighting system, field power system, household power system, etc.
Features
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
JYsupsys
|
|
Model Number
|
JY-8.2KW 10.2KW
|
|
Input Voltage
|
500V
|
|
Output Voltage
|
220V
|
|
Output Current
|
110A
|
|
Output Frequency
|
50/60Hz
|
|
Output Type
|
Single
|
|
Size
|
537*390*130
|
|
Type
|
DC/AC Inverters
|
|
Inverter Efficiency
|
98%
|
|
Certificate
|
CE
|
|
Warranty
|
24 months
|
|
Weight
|
15
|
|
Product name
|
Grid Solar Inverter
|
|
Inverter type
|
Hybrid on/off grid Power Inverter
|
|
Application
|
Solar Power System Home
|
|
Battery type
|
Lead Acid \ Lithium \ Gel
|
|
Rated Output Power:
|
8200W/10200W
|
|
Maximum AC Input Current:
|
40A/50A
|
|
Nominal Output Voltage:
|
200/230/240VAC
|
|
Output Voltage Range:
|
195.5~253VAC
|
|
Maximum Solar Charging Current:
|
160A/180A
|
|
Power Factor:
|
1
|
