Quick Details
-
Engine Brand:
-
Weichai/Lovol/YTO/Yuchai/Shangchai
-
Weight:
-
9450 KG
-
Horsepower:
-
25-280hp
-
Engine type:
-
6 cylinders diesel turbo power
-
Clutch:
-
Dual-stage LUK
-
Implements:
-
Three point linkage
-
PTO speed:
-
540/1000 or 760/1000
-
Gear shift:
-
16F+16R
-
Tire:
-
16.9-28/20.8-38 or 460/70R38 520/85R38
-
Cabin:
-
Luxury/AC/Reverse camera
-
Seat:
-
Air
Quick Details
-
Rated Power (HP):
-
Other
-
Brand Name:
-
Volford
-
Place of Origin:
-
Shandong, China
-
Engine Brand:
-
Weichai/Lovol/YTO/Yuchai/Shangchai
-
Weight:
-
9450 KG
-
Horsepower:
-
25-280hp
-
Engine type:
-
6 cylinders diesel turbo power
-
Clutch:
-
Dual-stage LUK
-
Implements:
-
Three point linkage
-
PTO speed:
-
540/1000 or 760/1000
-
Gear shift:
-
16F+16R
-
Tire:
-
16.9-28/20.8-38 or 460/70R38 520/85R38
-
Cabin:
-
Luxury/AC/Reverse camera
-
Seat:
-
Air

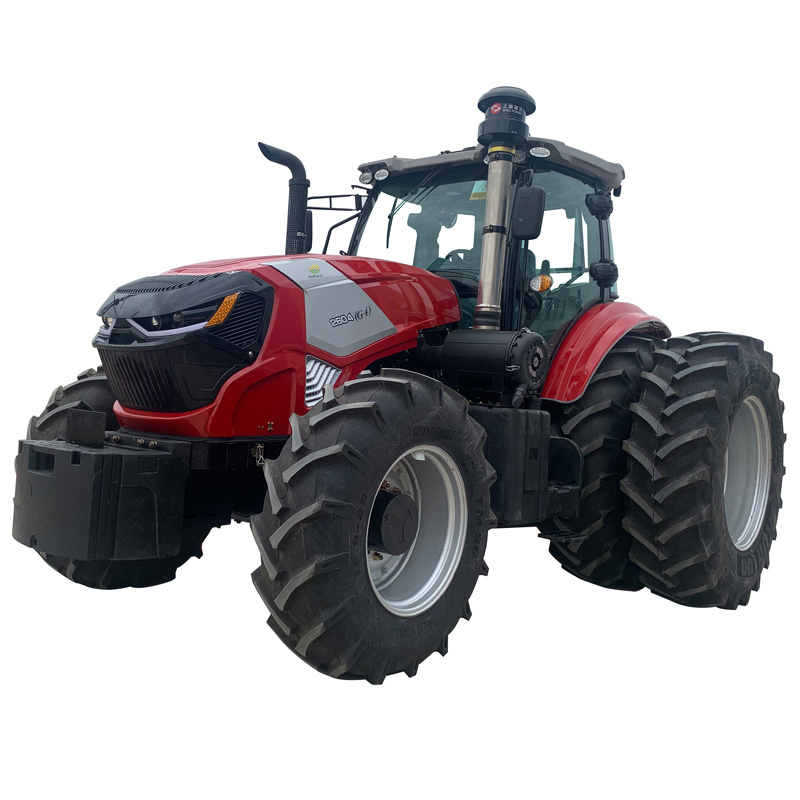

Adjustable wheelbase 260hp heavy model farming tractor Shang Chai engine tractor for farmer
Engine Features:
- Low fuel consumption and long service life.
- Low operating cost, fast instantaneous response under load, strong power, and good adaptability to working conditions.
- Good reliability, high attendance rate, flexible vehicle layout.
- Mature mainstream, reliable and assured.
- Wide range of adaptation, good environmental adaptability.
- Best power and economy match.
- Low maintenance costs, reducing user expenses.
|
|
260HP Wheel Tractors Specs Sheet | |||
| Item | Data | Item | Data |
| Model | VF2604 | Drive type | 4wd |
| Starting | electric | Clutch | dual stage |
| Engine brand | YTO/Yuchai/Deutz/Shanghai | Engine cylinders | 6 |
| Rated power/speed | 191.2/2200kw/rpm | Engine air | Turbo |
| Shift | 16F+16R shuttle | Front speed | 3.73-37.13km/h |
| Rear speed | 2.55-25.34km/h | Brake | disc type |
| Fuel tank | 800L | Steering | hydraulic steering |
| Linkage | three point | Suspension type | categoryIII |
| PTO | 540/1000 or 760/1000 | PTO spline size | 6 or 8 |
| Front tyre | 16.9-30/16.9-28 | Rear tyre | 20.8-38/20.8-42 |
| Front ballast | yes | Rear ballast | yes |
| Swing draw bar | yes | PTO cover | yes |
| Air pump | yes | Roll bar | selectable |
| Sun-shade | selectable | Cabin | luxury |
| Hydraulic output | 3 or 4 groups | Overall dimensions | 5350*2380/3580*3200mm |
| Front wheel track | 2000-2300mm | Rear wheel track | 2000-2300mm |
| Wheel base | 2780mm | Ground clearance | 400mm |
| Rated traction force | 38kn | Weight | 9450kgs |
Volford company headquarters are located in Beijing. There are two factories, Shandong Volford Machinery Co., Ltd and Shandong Volford Tractors Co., Ltd. Which separately manufacture farm implements and farm wheel tractors in Shandong province, China.
Volford could make and supply tractors from 20hp to 260hp. Belongs to TY series, TE series, TN series, TB series, TD series, TF series, TC series, TG series chassis. And gearshift includes 8F+2R, 8F+4R, 8F+8R, 10F+2R, 12F+12R, 16F+8R, 16F+16R, 24F+8R. Meets different farmers demands and farming work environments. Full series have entered into mass production stage. Market and farmers feedback are all very nice.
At present, there are 10 workshops, which covers about 100,000 square meters , 6 producing lines. Includes sheet-metal workshop, stamping workshop and painting workshop. The total employee is around 300. We have the perfect quality control system to ensure the top quality productions: professional laboratory, complete test equipment, excellent technical team, including senior engineer 5, and technician 12, strict quality control process.
Volford is devoting to provide the most suitable tractors and farm equipment according to customers demand. We have exported to the countries all over the world, such as Europe, Oceania, East Asia, Southeast Asia, and Africa and so on. We warmly welcome you to visit our factory. All your comment and advice is highly appreciated.
|
Mobile: 008615810477057 WhatsApp: 008615810477057 Wechat: 768712237 Email: sales @ volfordtractor.com Sales Engineer Eric An |
|
