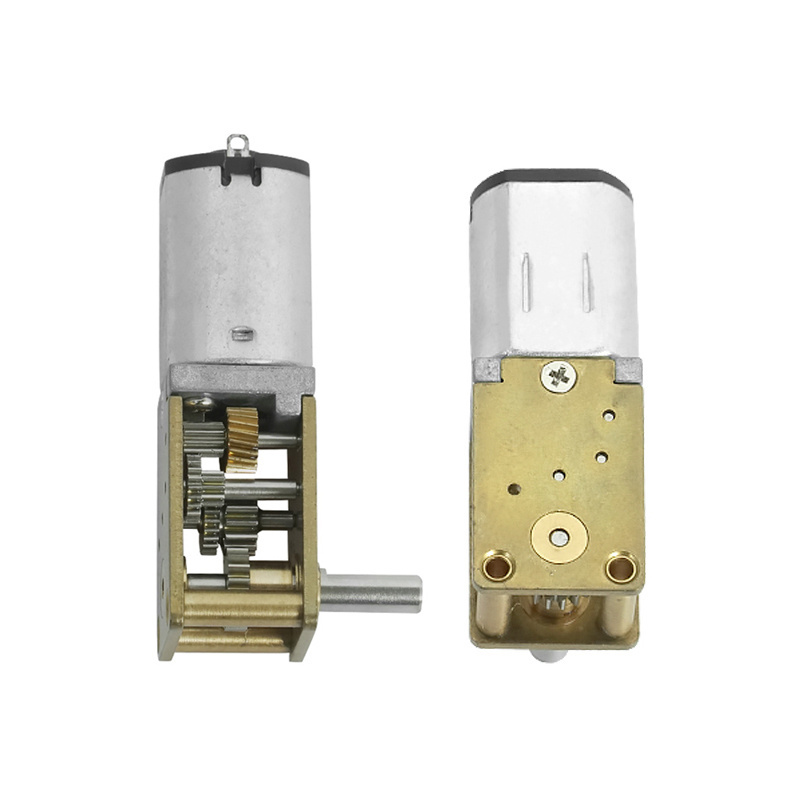

Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FT MOTOR
-
Model Number:
-
FT-12SGMN20
-
Torque:
-
1-200kgf.cm
-
Geared motor model:
-
FT-12SGMN20
-
Gearbox parameters:
-
RH MOTOR
-
Reduction ratio:
-
59,118,236(K)
-
Gearbox diameter:
-
12mm worm gear
-
Gear box length L:
-
18(mm)
-
Voltage:
-
3-24V
-
Gearbox efficiency:
-
30%
-
Rotating speed:
-
2rpm- 400rpm
-
Gear stages:
-
4
-
Dimensions:
-
10*12*18
Quick Details
-
Speed(RPM):
-
2rpm-400rpm
-
Continuous Current(A):
-
0.2-0.96A
-
Efficiency:
-
38%-65%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FT MOTOR
-
Model Number:
-
FT-12SGMN20
-
Torque:
-
1-200kgf.cm
-
Geared motor model:
-
FT-12SGMN20
-
Gearbox parameters:
-
RH MOTOR
-
Reduction ratio:
-
59,118,236(K)
-
Gearbox diameter:
-
12mm worm gear
-
Gear box length L:
-
18(mm)
-
Voltage:
-
3-24V
-
Gearbox efficiency:
-
30%
-
Rotating speed:
-
2rpm- 400rpm
-
Gear stages:
-
4
-
Dimensions:
-
10*12*18
FT MOTOR
DC gear motors are widely used:
Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage and health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, curling irons, automatic car facilities, etc. .
|
Motor Model
|
Rated Voltage
|
No Load
|
|
Load
|
|
|
|
Stall
|
|
|||||
|
|
|
Speed
|
Current
|
Speed
|
Current
|
Output
|
Torque
|
Current
|
Torque
|
|||||
|
|
V
|
(rpm)
|
(mA)
|
(rpm)
|
(mA)
|
(w)
|
(g·cm)
|
(mA)
|
(g·cm)
|
|||||
|
FT-N20
|
2.4
|
15800
|
96
|
12200
|
330
|
0.35
|
2.8
|
1150
|
13
|
|||||
|
FT-N20
|
3
|
12100
|
45
|
9390
|
160
|
0.2
|
2.1
|
540
|
9.4
|
|||||
|
FT-N20
|
6
|
10400
|
20
|
8000
|
40
|
0.25
|
3
|
150
|
12
|
|||||
|
FT-N20
|
6
|
15500
|
35
|
12400
|
80
|
0.52
|
4
|
350
|
18
|
|||||
FAQ
Q1: Are you trading company or manufacturer?
Q3: Do you have certificates for the motors?
Q4: How is your Quality Control?
A: We're factory. We specialize in micro dc motor and dc gear motor for more than 10years.
Q2: I can't find a suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize a suitablemotor according to our customer's requirements.
Q3: Do you have certificates for the motors?
A: Yes. we have CE. FCC, ISO, etc. lf you have the other certificates requirement,we can apply it for you.
Q4: How is your Quality Control?
A: We have professional checking staff on every production line process. After finishing the
whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D image Tester, Salt Spray Chamber,LifeTester, Temperature Test Machine, and Noise tester etc.
whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D image Tester, Salt Spray Chamber,LifeTester, Temperature Test Machine, and Noise tester etc.
