- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
KP1.6-G-N
-
Product name:
-
Wireless Smart Gsm Prepaid lpg Gas Meter
-
Material:
-
Brass connectors
-
Nominal Diameter:
-
G1.6
-
Communication:
-
GPRS
-
Pressure level:
-
Max 50KPa
-
Qt:
-
0.25m3/h
-
Data collection:
-
Pulse
-
Power supply:
-
3.6V Lithium Battery
-
dm3:
-
1.4
-
Accuracy:
-
1.5%
Quick Details
-
Type:
-
Diaphragm/bellows meters
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
COMPERE
-
Model Number:
-
KP1.6-G-N
-
Product name:
-
Wireless Smart Gsm Prepaid lpg Gas Meter
-
Material:
-
Brass connectors
-
Nominal Diameter:
-
G1.6
-
Communication:
-
GPRS
-
Pressure level:
-
Max 50KPa
-
Qt:
-
0.25m3/h
-
Data collection:
-
Pulse
-
Power supply:
-
3.6V Lithium Battery
-
dm3:
-
1.4
-
Accuracy:
-
1.5%

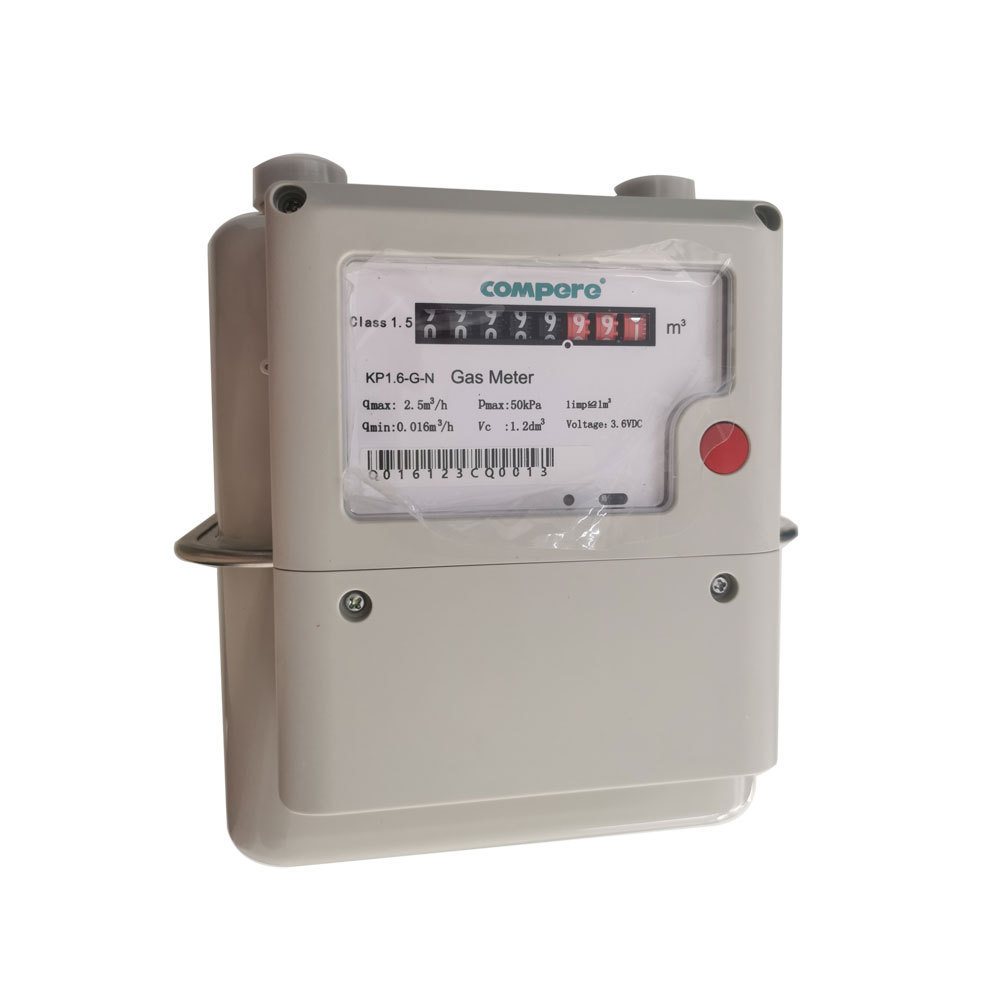

Wireless GPRS Remote Reading Optional Valve Control Smart GSM Prepaid LPG Gas Meter
Wireless GPRS Remote Reading Optional Valve Control Smart Gsm Prepaid lpg Gas Meter
is used to measure the CNG/LPG gas consumption for house use, suitable for small industrial and household use.
The Smart Diaphragm Gas Meter of IOT(hereinafter referred to as "gas meter") is an electromechanical integrated intelligent gas measuring instrument which is composed of diaphragm gas meter as metering base meter, and equipped with electronic controller and communication module. It is mainly suitable for automatic metering and charging control of natural gas, liquefied petroleum gas, biogas and other gases with working pressure of 0.5-50kPa. This product complies with GB/T6968-2019 and JJG577-2012 standards.
The product complies with the standards of IEC3836.1-2021 "Explosive Atmospheres Part 1: General Requirements for Equipment" and IEC3836.4-2021 "Explosive Atmospheres Part 4: Equipment protected by intrinsically safe" i ". The explosion-proof mark is: EXib Ⅱ BT3 Gb. It has been inspected and passed by the National Explosion Prevention Testing Center and has obtained an explosion-proof certificate; It contains Zone 1 and Zone 2 of IIA-IIB, as well as explosive gas mixtures site of T1-T3.
The product complies with the standards of IEC3836.1-2021 "Explosive Atmospheres Part 1: General Requirements for Equipment" and IEC3836.4-2021 "Explosive Atmospheres Part 4: Equipment protected by intrinsically safe" i ". The explosion-proof mark is: EXib Ⅱ BT3 Gb. It has been inspected and passed by the National Explosion Prevention Testing Center and has obtained an explosion-proof certificate; It contains Zone 1 and Zone 2 of IIA-IIB, as well as explosive gas mixtures site of T1-T3.
Details Images
Wireless GPRS Remote Reading Optional Valve Control Smart Gsm Prepaid lpg Gas Meter with T@PREPAY SYSTEM
The
Wireless GPRS Remote Reading Optional Valve Control Smart Gsm Prepaid lpg Gas Meter
can send data to the T@PREPAY prepayment system directly without other communication devices.
Product Paramenters
|
Model
|
qt
|
qmax
|
qmin
|
Accuracy
|
Max working pressure
|
|
G1.6
|
0.25m3/h
|
2.5m3/h
|
0.016m3/h
|
qmax>q>qt:1.5%
qt>q>qmin:3%
|
50KPa
|
|
G2.5
|
0.4m3/h
|
4m3/h
|
0.025m3/h
|
qmax>q>qt:1.5%
qt>q>qmin:3%
|
50KPa
|
|
G4W
|
0.6m3/h
|
6m3/h
|
0.016m3/h
|
qmax>q>qt:1.5%
qt>q>qmin:3%
|
50KPa
|
