Quick Details
-
Power (kW):
-
38.85
-
Range of Spindle Speed(r.p.m):
-
3000 - 5000 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XINYOU
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
6640*1300*3960mm
-
Weight (KG):
-
2000 KG
-
Product name:
-
rice grinder machine corn cob grinder coriander grinding machine
-
Grinding motor power:
-
22kw
-
Fan motor power:
-
11kw
-
Feeding motor power:
-
0.75kw
-
Classify motor power:
-
4kw
-
Discharging motor power:
-
0.75kw
-
Feeding material size:
-
<10mm
-
Output fineness:
-
80-300 mesh
-
Capacity:
-
100-300kg/h
Quick Details
-
Output (kg/h):
-
100 - 200 kg/h
-
Feeding Size (mm):
-
10 - 20 mm
-
Output Size (mesh):
-
80 - 320 mesh
-
Power (kW):
-
38.85
-
Range of Spindle Speed(r.p.m):
-
3000 - 5000 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XINYOU
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
6640*1300*3960mm
-
Weight (KG):
-
2000 KG
-
Product name:
-
rice grinder machine corn cob grinder coriander grinding machine
-
Grinding motor power:
-
22kw
-
Fan motor power:
-
11kw
-
Feeding motor power:
-
0.75kw
-
Classify motor power:
-
4kw
-
Discharging motor power:
-
0.75kw
-
Feeding material size:
-
<10mm
-
Output fineness:
-
80-300 mesh
-
Capacity:
-
100-300kg/h
Certifications
Product Overview

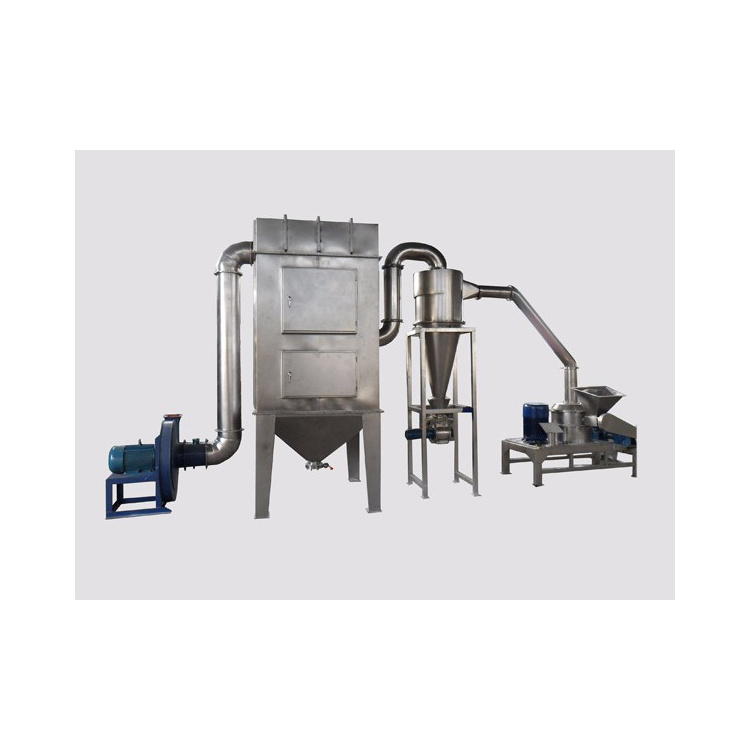

WFJ SERIES GRINDING MACHINE WITH CYCLONE DUST COLLECTING SET
Product Application
This pin mill is widely used in Food, chemical, and other industries.
There are different models for different requirement.
Easy to operate,clean and maintenance.
Main Features
1. This grinding machine is widely used in food, chemical and other industry.
2. For normal material, it can grind into 80-320 mesh.
3. This machine has different models, capacity from 20-1000 kg/h, customers can choose the right model according to their requirement.
4. The temperature during the crushing process is less than 40 ℃. For sensitive material, customer can choose water cooler or air cooler.
5. Stable quality of finished product with low consumption to save cost.
6. The machine is equipped with dust collector, no fine powder flying during the grinding process.
8. We can make the input hopper be magnetic to avoid metal damage if you need.
This pin mill is widely used in Food, chemical, and other industries.
There are different models for different requirement.
Easy to operate,clean and maintenance.
Main Features
1. This grinding machine is widely used in food, chemical and other industry.
2. For normal material, it can grind into 80-320 mesh.
3. This machine has different models, capacity from 20-1000 kg/h, customers can choose the right model according to their requirement.
4. The temperature during the crushing process is less than 40 ℃. For sensitive material, customer can choose water cooler or air cooler.
5. Stable quality of finished product with low consumption to save cost.
6. The machine is equipped with dust collector, no fine powder flying during the grinding process.
8. We can make the input hopper be magnetic to avoid metal damage if you need.
|
Model
|
Input size
|
Output size
(mesh)
|
Capacity
(kg/h)
|
Grinding motor
|
Fan motor
|
Overall dimension
(mm)
|
Weight
|
|
WFJ-15
|
<10mm
|
80-320
|
10-30
|
7.5kw
|
5.5kw
|
4200*1250*2700
|
850kg
|
|
WFJ-20
|
<10mm
|
80-320
|
20-50
|
15kw
|
7.5kw
|
4700*1250*2900
|
1340kg
|
|
WFJ-30
|
<10mm
|
80-320
|
100-300
|
22kw
|
11kw
|
6640*1300*3960
|
1800kg
|
|
WFJ-60
|
<10mm
|
80-320
|
300-500
|
37kw
|
22kw
|
7500*2300*4530
|
3200kg
|
|
WFJ-80
|
<10mm
|
80-320
|
500-800
|
55kw
|
22kw
|
8200*2500*4600
|
3800kg
|
