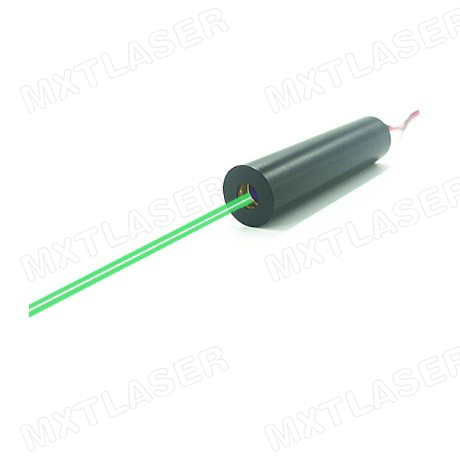

Quick Details
-
Weight (KG):
-
0.02 KG
-
Application:
-
Gun sighting, indication, positioning
-
Wavelength:
-
520nm
-
Output power:
-
30mW/50mW/80mW/135mW
-
Diameter:
-
D12X40mm
-
Lens:
-
GLASS
-
Spot size:
-
<8x16mm at 10m
-
Operating Voltage:
-
2.8-5V DC
-
Operation mode:
-
APC/ACC
-
Power Stability:
-
<5%
-
Operating Temperature:
-
-10℃~ +50℃
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Spare Parts Type:
-
Laser Module
-
Brand Name:
-
MXTLASER
-
Weight (KG):
-
0.02 KG
-
Application:
-
Gun sighting, indication, positioning
-
Wavelength:
-
520nm
-
Output power:
-
30mW/50mW/80mW/135mW
-
Diameter:
-
D12X40mm
-
Lens:
-
GLASS
-
Spot size:
-
<8x16mm at 10m
-
Operating Voltage:
-
2.8-5V DC
-
Operation mode:
-
APC/ACC
-
Power Stability:
-
<5%
-
Operating Temperature:
-
-10℃~ +50℃
Product Description
Details Images
Customized Lasers
Packing & Shipping
Packing:
Standard export packing or as customized request, well packed with bubble in bags and small boxes.
Shipping:
Professional freight forwarder and shipping agent, can ship to you by UPS/DHL/TNT/EMS/FedEx etc. Please contact us directly and we will use your preferred ways.
Contact Us
MXTLASER is a company focused on semiconductor laser product development and production enterprises, the company since its inception has been committed to professional semiconductor laser products for the direction; always adhere to carry forward the 'integrity, innovation, communication' for business purposes, 'technology, services' as the core competitiveness of the company. Products are mainly used in medical, biological engineering, industrial equipment, 3D printing set.
FAQ
Q: Are you trading company or manufacturer ?
Q:What is the CW mode or PWM mode ?
● CW (continuous wave mode): A conventional control method, continued to light up the work
PWM(Pulse Width Modulation):Direct Drive PWM laser is available with a TTL driver board that allows the unit to be gated on and off.
Q: What is the Operating Voltage ？
● 3V/5V DC are standard laser operating voltage,we also can supply such as 12V DC or 24V DC if needed.
MXTLASER can be supplied with a mains adapter which runs on 110-240V AC input and has one output to power the laser,If you require a custom lead length please contact us.
● We are factory.
Q:
Can you customize the product for me?
●
Yes, our technical team has experience in developing laser customized module.
We have been developing laser for Laser rangefinder, Laser scanner, Laser sights, Laser medical instrument, Analysis instrument, Laser level, electric tools etc. According to the customized requirements, our team are capable to provide suggestions and designs.
We have been developing laser for Laser rangefinder, Laser scanner, Laser sights, Laser medical instrument, Analysis instrument, Laser level, electric tools etc. According to the customized requirements, our team are capable to provide suggestions and designs.
Q: What is different between APC and ACC driving ?
● APC(Auto Power Control): automatically adjust the input current in order to output a constant value of optical power
● ACC(Auto Current Control):a way have a constant value of input current, while the output power may vary. Of course, what drives depends on your application needs.
● APC(Auto Power Control): automatically adjust the input current in order to output a constant value of optical power
● ACC(Auto Current Control):a way have a constant value of input current, while the output power may vary. Of course, what drives depends on your application needs.
Q:What is the CW mode or PWM mode ?
● CW (continuous wave mode): A conventional control method, continued to light up the work
PWM(Pulse Width Modulation):Direct Drive PWM laser is available with a TTL driver board that allows the unit to be gated on and off.
Q: What is the Operating Voltage ？
● 3V/5V DC are standard laser operating voltage,we also can supply such as 12V DC or 24V DC if needed.
MXTLASER can be supplied with a mains adapter which runs on 110-240V AC input and has one output to power the laser,If you require a custom lead length please contact us.
