Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Thickness:
-
0~30mm
-
Control Software:
-
RUIDA
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Ray Fine
-
Weight (KG):
-
360 KG
-
Core Components:
-
Laser tube
-
Laser Power:
-
40W 50W 60W 80W
-
Laser wavelength:
-
10600nm
-
Marking Depth:
-
0~30mm
-
Working area:
-
400*600mm
-
Software:
-
RUIDA RD6445S
-
Certification:
-
CE
-
Power supply:
-
AC220V 50HZ /AC110V 60HZ
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
500mm/s
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Thickness:
-
0~30mm
-
Control Software:
-
RUIDA
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Ray Fine
-
Weight (KG):
-
360 KG
-
Core Components:
-
Laser tube
-
Laser Power:
-
40W 50W 60W 80W
-
Laser wavelength:
-
10600nm
-
Marking Depth:
-
0~30mm
-
Working area:
-
400*600mm
-
Software:
-
RUIDA RD6445S
-
Certification:
-
CE
-
Power supply:
-
AC220V 50HZ /AC110V 60HZ
Product Description
Product Features：
1. Can engrave and cut
any
non-metal
materials
2. Stable and efficient metal follow-up cutting system
3.
Built-in chiller for more convenient work
4. Ruida controller and software easy study and operation
5. Linear square guide rails with high precision
6. Heavy duty machine body with good rigidity
7. 3phase stepping motor drive higher precision low noise
Main Application:
wood, orgnic, glass, plastic, garments, paper, lenther, rubber and other nonmetal materials.
Applicable industries:
Advertisement, arts, and crafts, toys, computerized embroidery and clipping, garments, model, and construction industy.

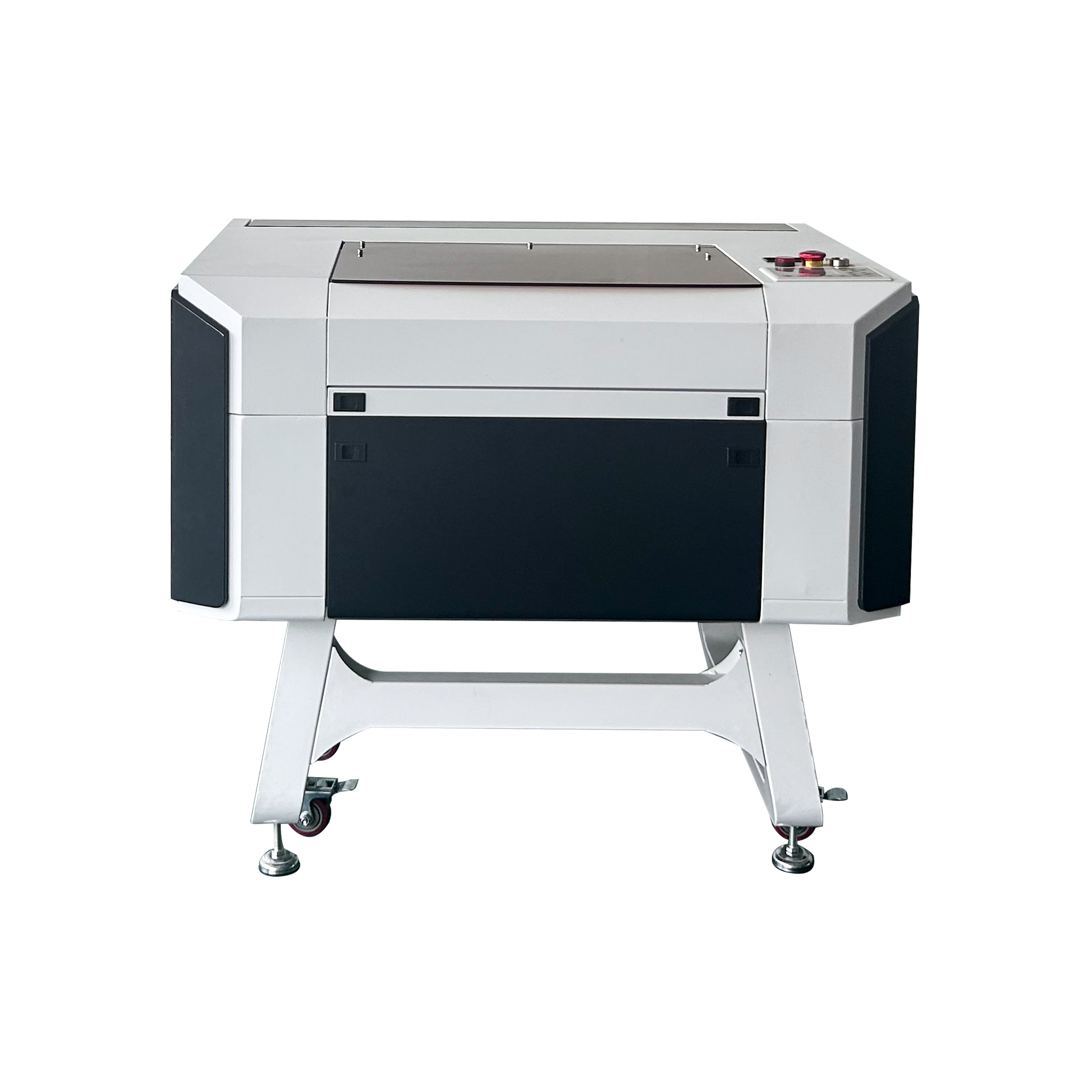

* High-tech machine casing;
* Double layer design is convenient for disassembly;
* Gantry design, easy to operate;
* Automatic focusing and lifting system can be configured.
Ruida controller
Built-in chiller
- Built-in chiller design makes operation more convenient.
LINEAR GUIDE RAILS
* Rugged and durable
* Low running resistance
* Can effectively improve work efficiency
* Low environmental requirements
* Works in harsh environments
* Low friction
* Low running resistance
* Can effectively improve work efficiency
* Low environmental requirements
* Works in harsh environments
* Low friction
Workbench
Aluminium blade table and honeycomb table
Honeycomb table:
Honeycomb table for small and soft materials.
Configuration
RUIDA controller
RUIDA DSP controller with color display;
Z+ Z- control table up/down;
Compatible with Light Burn software;
RUIDA DSP controller with color display;
Z+ Z- control table up/down;
Compatible with Light Burn software;
Laser tube
Every laser tube will be tested the laser spot and
laser power before used on the laser machine;
10000 hours life time;
Linear guide rails
High precision linear guide rails;
High precision linear guide rails;
Laser head
High precision laser head;
with red light positioning
The blade platform
High density knife table more convenient for small work pcs cutting/engraving;
Double table: Knife table (for hard material); Honeycomb table (for soft material)
(Default knife platform)
Electric control system
Reasonable lay out electric control system ensure machine running stable;
Sample Show
Machine Reference Parameters
|
Model
|
RF-6040
|
|
Laser source
|
EFR
|
|
Laser type
|
CO2
|
|
Laser tube
|
Glass tube
|
|
Laser power
|
40W 50W 60W 80W
|
|
Cutting depth
|
0~30mm
|
|
Control software
|
RUIDA
|
|
Control system
|
Windows
|
|
Working table
|
Aluminum knife table/Honeycomb table
|
|
Certification
|
CE
|
|
Operating voltage
|
AC220V 50HZ/AC110V 60HZ
|
|
Cooling type
|
Water chiller CW3000
|
|
Min shaping character
|
Character: 1.5*1.5mm Letter: 0.7*0.7mm
|
|
Data transfer interface
|
USB
|
|
Operating temperature
|
-5℃-35℃
|
|
Resolution ratio
|
4500dpi
|
|
Graphic format supported
|
The file which Corel Draw, Photo shop, Auto-CAD can identify
|
|
Color separation
|
Separation of Cutting up to 256 colors
|
|
Compatible software
|
Corel Draw, Auto-CAD
|
|
Auto focus
|
optional
|
|
Packing
|
Plywood case
|
Optional item
Roller rotary:
The height of the clam can be adjusted up&down, it is mainly used for engraving round materials with different diameter,like wine bottle, ect.
Rotary chuck:
It is mainly used for engraving both regular and irregular round materials.
CCD video camera:
-Scanning high speed, precise and fine marking effect
-It is suitable for cutting logo tags ect which has been printed on material.
Auto focus:
Find focus dot automatically by lifting the worktable.
Packing and Shipping
1. Ensure each part of the machine is clean and tidy before packaging;
2. Each accessory is wrapped in a recyclable plastic bag, then wrapped in cardboard;
3. Place the machine neatly (like a cube as much as possible) and add a thicker foam to the corners that are easy to bump;
4. Packing in wooden cases of suitable export standard plywood( fill the corners with recyclable plastic foam),then seal the case and fasten it with high quality stainless steel nails and steel straps.
5. Then seal the case and fasten it with high quality stainless steel nails and steel straps;
6. We will write the corresponding shipping marks on the cases according to the customer's requirements;
7. Print or spray paint safety sign in wooden box.
We will give away the following products for free：
|
Shipping List
|
|
|
|
Name
|
Amount
|
|
|
CO2 laser cutting machine
|
1 set
|
|
|
Air pump
|
1 set
|
|
|
Exhaust fan
|
1 set
|
|
|
Smoke pipe
|
2 pcs
|
|
|
Power cable
|
1 pcs
|
|
|
Water pipe
|
1 pcs
|
|
|
Air pipe
|
1 pcs
|
|
|
Inner hexagon spanner 1.5-10mm
|
9 pcs
|
|
|
USB flash drive
|
1 pcs
|
|
|
USB cable
|
1 pcs
|
|
|
Focus ruler
|
1 pcs
|
|
|
Paper for adjusting laser light way
|
1 pcs
|
|
|
Lens cleaning paper
|
1 pcs
|
|
|
Limit switch
|
1 pcs
|
|
|
Tools bag
|
1 pcs
|
|
FAQ
|
Q1:How to choose machine?
|
|
|
|
|
||||
|
A1: you can tell us your working material, detail work by picture or video so that we can recommend the most suitable model foryou.
|
|
|
|
|
||||
|
Q2:Are you a factory or trading company?
|
|
|
|
|
||||
|
A2: We are the manufacturer. as only the machine made by ourselves, quality can be trusted, and most important thing is we can do better service after sales. We know how to fix the problem in each parts easily. So welcome to visit to our factory.
|
|
|
|
|
||||
|
Q3:what's the payment term?
|
|
|
|
|
||||
|
A3: we accept: TT, Alibaba trade assurance order etc. 100% of total amount in advance Or 30% deposit in advance and 70% balance before delivery.
|
|
|
|
|
||||
|
Q4: How about the delivery time?
|
|
|
|
|
||||
|
A4: For normal machines we can send out the machine within 5-7 days after receive the full payment. For non standard machines and customized machines according to client's specific requirements, it would be 15 to 30 days.
|
|
|
|
|
||||
|
Q5: how can i know your machine is work well?
|
|
|
|
|
||||
|
A5:Before delivery , we have tested every machine and shoot some test video for you. If you have special production condition , we can adjust machine for you according to your work requirements.
|
|
|
|
|
||||
|
Q6: how can i get support from you ?
|
|
|
|
|
||||
|
A6:Our engineers are online for 24 hours, they can check the problems and give you solution very soon. If you don’t know how to use the machine, We have English manual and CD video for machine using and maintaining , that will be delivery with machine. And we supply service through email, telephone, online, WhatsApp skype etc. Or If you’re interesting come to China, we will offer you free training until you can use machine freely.
|
|
|
|
|
||||
