Quick Details
-
Model Number:
-
F5-10M
-
Place of Origin:
-
China
-
Load Direction:
-
Axial
-
Raceway Type:
-
groove raceway
-
Bore Diameter of Shaft Washer(d):
-
5mm
-
Outer Diameter of housing washer(D):
-
10mm
-
Bore Diameter of housing washer(d1):
-
5.2mm
-
Outer Diameter of shaft washer(D1):
-
9.8mm
-
Thickness(H):
-
4mm
-
Radius:
-
0.15mm
-
Washers Material:
-
Chrome steel 52100(Gcr15)
-
Cage Material:
-
Bronze or stainless steel
Quick Details
-
Precision Rating:
-
ABEC-1 (higher grade available)
-
Number of Row:
-
Single row
-
Brand Name:
-
Neutral, OEM
-
Model Number:
-
F5-10M
-
Place of Origin:
-
China
-
Load Direction:
-
Axial
-
Raceway Type:
-
groove raceway
-
Bore Diameter of Shaft Washer(d):
-
5mm
-
Outer Diameter of housing washer(D):
-
10mm
-
Bore Diameter of housing washer(d1):
-
5.2mm
-
Outer Diameter of shaft washer(D1):
-
9.8mm
-
Thickness(H):
-
4mm
-
Radius:
-
0.15mm
-
Washers Material:
-
Chrome steel 52100(Gcr15)
-
Cage Material:
-
Bronze or stainless steel
Products Description
FREE SAMPLES are available for F5-10M Thrust Ball Bearings, please contact us to get the free samples today.
Customization on the F5-10M thrust ball bearings is welcome, please contact with us for a quick and free quotation now.

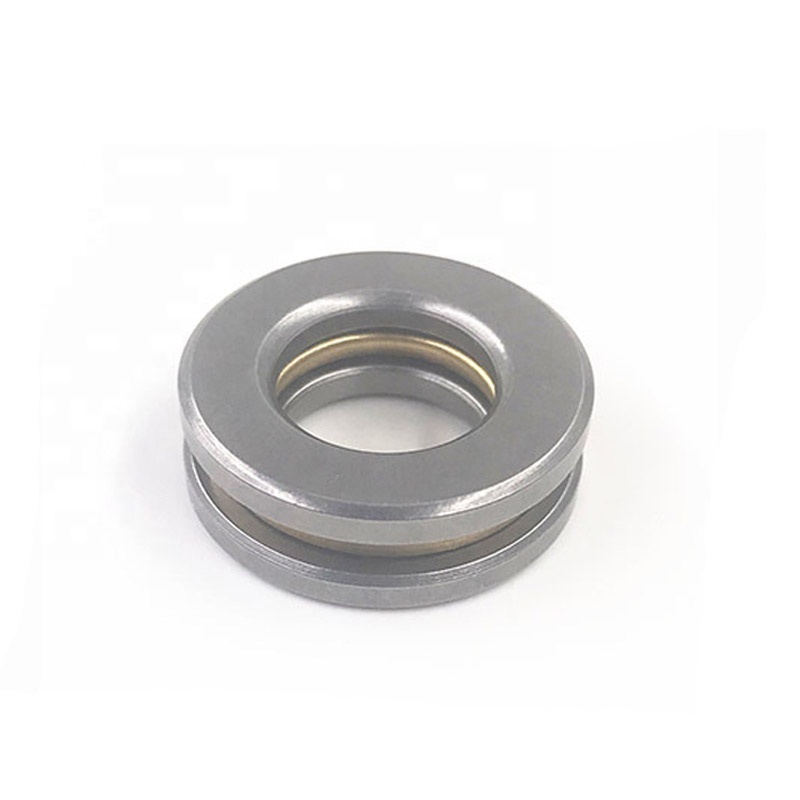

F5-10M is a miniature thrust ball bearing with bore diameter of 5mm and outer diameter of 10mm. We always make stock for F5-10M thrust bearings so we can ship them to customers in a very short lead time.
|
Product Name
|
F5-10M Thrust Bearings
|
|
Ball Material
|
Chrome steel 52100(Gcr15)
|
|
Grade
|
ABEC-1 (higher grade available)
|
|
Clearance
|
C0 (other clearance available)
|
|
Ball Size
|
1.588mm
|
|
Ball Quantity
|
9pcs
|
|
Lubrication
|
grease (oil available)
|
|
Temperature Range
|
-30℃~130℃
|
|
Payment
|
1. samples and small quantity：100% TT， PaylPal；
2:.bulk order： Deposit of 50% total payment paid after signing contract; 50% before shipment.
|
