Name: Crimping machine head
Front housing cover,cylinder and piston rod use material with CR,improve the oil cylinder and piston rod fatigue resistance.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
450*630*600mm
-
Weight:
-
300, 300kg
-
Power (kW):
-
3/4kw
-
Name:
-
hydraulic hose crimper repairs and maintenance
-
Model:
-
JYC-P32G
-
Color:
-
Blue
-
Crimping range:
-
6-51mm
-
Application:
-
Crimp Hose
-
Type:
-
automatic
-
Crimping force:
-
320Ton
-
SYSTEM PRESSURE:
-
31.5mpa
-
Power:
-
3KW/4KW
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JYC
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
450*630*600mm
-
Weight:
-
300, 300kg
-
Power (kW):
-
3/4kw
-
Name:
-
hydraulic hose crimper repairs and maintenance
-
Model:
-
JYC-P32G
-
Color:
-
Blue
-
Crimping range:
-
6-51mm
-
Application:
-
Crimp Hose
-
Type:
-
automatic
-
Crimping force:
-
320Ton
-
SYSTEM PRESSURE:
-
31.5mpa
-
Power:
-
3KW/4KW
MACHINE Description

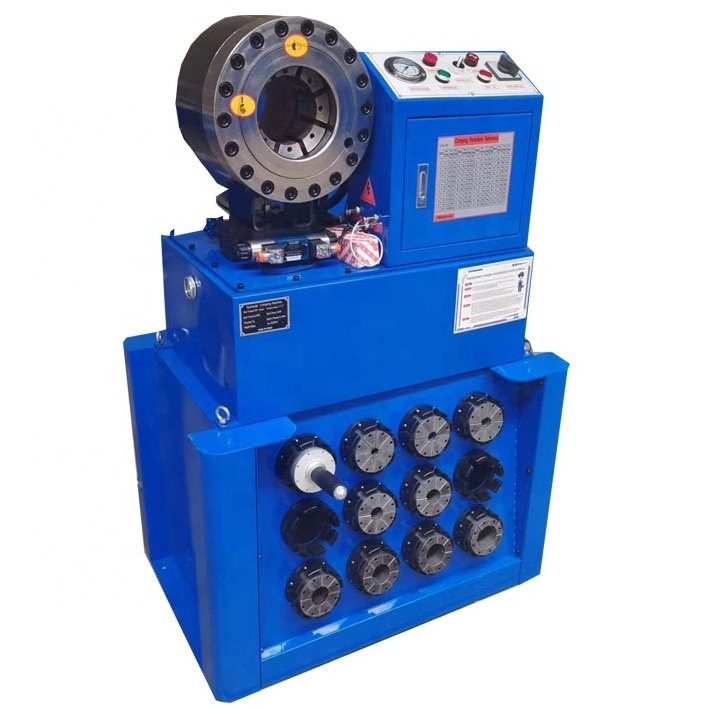

Hydraulic hose crimping machine Application
JYC-P32G hose crimping machine is ideal for crimping 51mm 4spiral hose.
P32G model crimper is with 200T hydraulic force, with a perfect performance on crimping 2 inch hydraulic hoses.
With large working stroke, and with Ergonomic design.Finn power style hose crimper.
All parts are imported from famous brand,durable operating performance.
With quick change tool, that will definately release your hands and imporve your working effieiceny.
Comparing our P32X model, P32G is with dies stand and it will be more easy for you to install and stock your dies.
|
SPECIFICATIONS FOR HYDRAULIC HOSE CRIMPING MACHINE
|
|
|
|
|||
|
Production name
|
hose crimping machine
|
Machine model
|
JYC-P32G
|
|||
|
Machine type
|
hydraulic crimping tool
|
Application
|
crimping hose
|
|||
|
Crimping range
|
6-51mm(1/4--2 inch)
|
System pressure
|
31.5Mpa
|
|||
|
Crimping force
|
3200kN
|
Operation mode
|
electrical
|
|||
|
Dies set
|
13 sets
|
Die length
|
75mm
|
|||
|
Dimension
|
650*470*620mm
|
Weight
|
300KG
|
|||
|
Voltage
|
220V/380V
|
Power
|
3KW/4KW
|
|||
|
Rated Flow
|
10ml/r
|
Prodection Class
|
IP54
|
|||
P32G Hose Crimping Machine Features
High Efficiency High Precision Good Product Consistency
Low labor Intensity Good Management Simple In Operation
Machine Parts
Machine Parts
Name:
Crimping machine die sets
High quality
reliable
durable
High performance to price ratio
Professional
Name:Quickly change tool
Can quickly replace the mold
Reduce time waste and improve work efficiency
Machine rack
convenient operating
easy to carry
Very friendly to customers
Machine Parts
Name:
Oil seal kits
It will drive parts in the need to lubricate the parts and components of the output of the isolation, not to allow the leakage of lubricating oil.
Machine Pedal
