PV panel 360 degree adjustable battery replaceable all in two solar light 30w 60w 90w 150w solar street light led outdoor
PV panel 360 degree adjustable battery replaceable all in two solar light 30w 60w 90w 150w solar street light led outdoor
PV panel 360 degree adjustable battery replaceable all in two solar light 30w 60w 90w 150w solar street light led outdoor
PV panel 360 degree adjustable battery replaceable all in two solar light 30w 60w 90w 150w solar street light led outdoor
PV panel 360 degree adjustable battery replaceable all in two solar light 30w 60w 90w 150w solar street light led outdoor
PV panel 360 degree adjustable battery replaceable all in two solar light 30w 60w 90w 150w solar street light led outdoor
PV panel 360 degree adjustable battery replaceable all in two solar light 30w 60w 90w 150w solar street light led outdoor
PV panel 360 degree adjustable battery replaceable all in two solar light 30w 60w 90w 150w solar street light led outdoor

PV panel 360 degree adjustable battery replaceable all in two solar light 30w 60w 90w 150w solar street light led outdoor

FOB Reference Price: Get Latest Price
≥2 Pieces
US $151.8
≥100 Pieces
US $150.8
≥200 Pieces
US $150
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Solar Panel Type:
Monocrystalline Silicon
Solar Panel Power:
18V 120W (19.8% conversion efficiency)
Battery Pack Type:
LiFe PO4 (Lithium iron phosphate battery)
Charge time:
4-6h according to the weather
LED (Light source):
192pcs of CREE brand chips SMD3030
Color Temperature(CCT):
3000K/4000K/5000K/5700K/6500K
Total Lumen:
7000LM
Controller:
MPPT(93% charging efficiency)
Work mode:
With light sensor/microwave sensor/time control
Supports continous rainy days:
3 days

Quick Details

Warranty(Year):
3-Year
Lighting solutions service:
Lighting and circuitry design, DIALux evo layout, Project Installation
Place of Origin:
Guangdong, China
Solar Panel Type:
Monocrystalline Silicon
Solar Panel Power:
18V 120W (19.8% conversion efficiency)
Battery Pack Type:
LiFe PO4 (Lithium iron phosphate battery)
Charge time:
4-6h according to the weather
LED (Light source):
192pcs of CREE brand chips SMD3030
Color Temperature(CCT):
3000K/4000K/5000K/5700K/6500K
Total Lumen:
7000LM
Controller:
MPPT(93% charging efficiency)
Work mode:
With light sensor/microwave sensor/time control
Supports continous rainy days:
3 days
ALL-IN-TWO SOLAR LED STREET LIGHT
Our original design diagram

>>Have Applied for appearance patent
>>Our Original Idea for this design is to help you solve 2 problems:
1. Solve the problem of the inconvenient installation for traditional split solar led street light
2. Solve the problem of the lighting up time for all-in-one solar led street light
Features
■ Solar panel, battery and led lighting source are integrated together as 2 units.

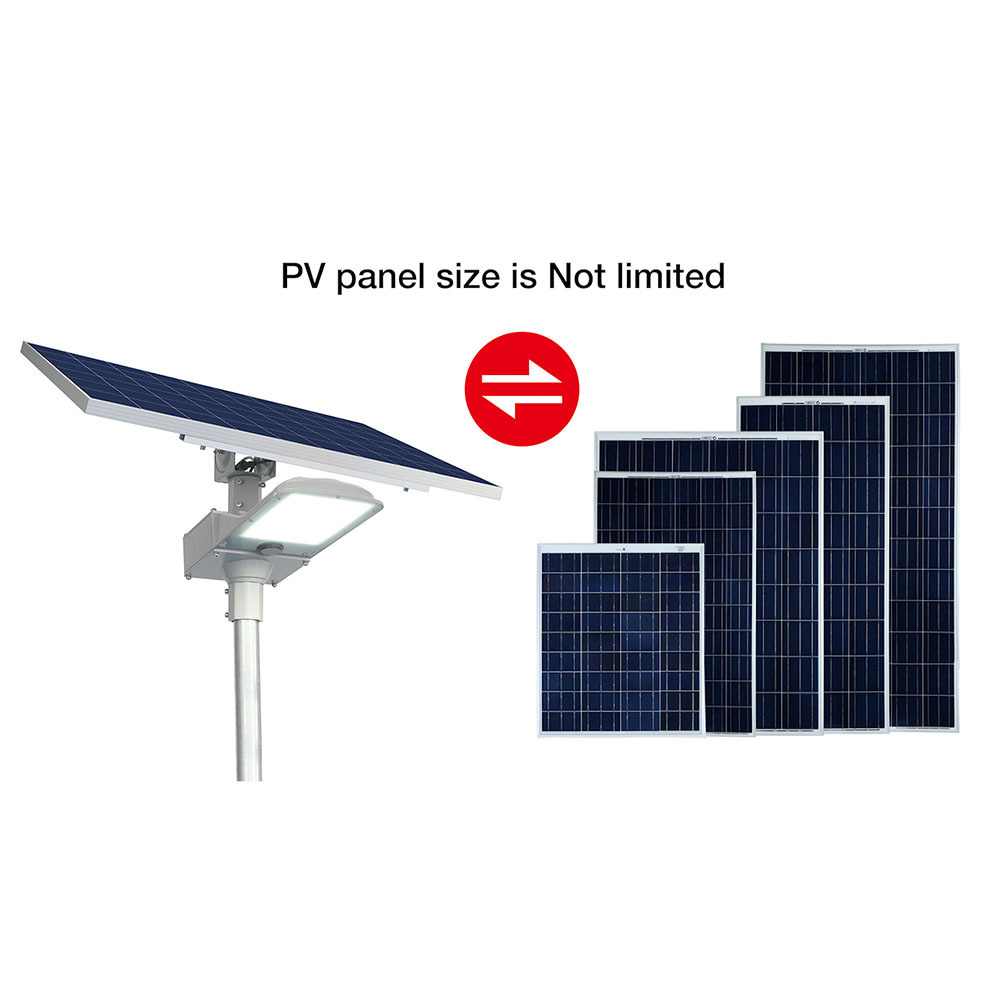

■ Solar Panel can be vertically tilted to its optimized position for the highest charging efficiency.

■ Lithium Battery Capacity is up to 614WH (LiFePO4 Lithium battery)

■ Adopts Original CREE Brand 3030 Led chips, achieve more than 170 lumen/watt.

■ Smart Microwave Motion Detection is optional function.

■ The intelligent integrated design makes the installation much easier, and no cable connections needed.
Product Advantages
WHY ALL-IN-TWO SOLAR LED STREET LIGHT?
Technical Parameters
Model No.
SST-50-08
SST-100-08
SST-150-08
SST-200-08





LED
Street Lamp

Light source
192pcs
192pcs
192pcs
192pcs
Chip brand
Cree brand
Cree brand
Cree brand
Cree brand
Total Lumen
4600LM
5800LM
7000LM
8200LM
Lamp Dimension
515(L)*253(W)*455(H) with adapter
515(L)*253(W)*342(H) without adapter
659*367*63.5mm
789*367*63.5mm
1000*430*83mm
CRI
>70 OR >80
Color Temperature

3000K/4000K/5000K/5700K/6500K
Housing Material
die-cast aluminium
Housing Color
Grey


Solar
Panel
Type
Monocrystalline Silicon
Power
18V 75W
18V 100W
18V 120W
18V 150W
Dimension(mm)
650*750*30
1000*670*35
1140*670*35
1500*1005*38
Conversion efficiency
19.7-19.8%


Battery
Pack
Type
LiFe PO4 (Lithium iron phosphate battery)
Capacity
12.8V 24AH
12.8V 30AH
12.8V 36AH
12.8V 42AH
Charge time
4-6HRS according to the weather
Discharge time
8-12HRS

Controller
Type
MPPT
Charging efficiency
93%



Working mode
with light sensor
Lamp turn ON automatically when sunset, and turn OFF automatically when sunrise
with microwave sensor

There are 5 or 6 time-frame-control, You can customize settings !! kindly check our default settings at the bottom of this sheet .
Microwave sensor will be MORE sensitive than IR sensor !!
with time control
Supports continous
rainy days

3 Days
3 Days
3 Days
Installation Height
4-5 meters
4-6 meters
5-7 meters
6-8 meters
IP Rating
IP66
Warranty
3 Years
LIGHT DISTRIBUTION CURVE
DIALUX SIMULATION
We can give you the best solution for your projects after Dialux simulation
WORKING MODE
>> 12 Lighting Hours/ Night +Automatic Time Control
>> 3 Consecutive Rainy & Cloudy Days
Applications
Certifications
Why Choose Us
Shenzhen Penel Optoelectronics Technology Co.,Ltd
we were founded in 2006,through 14 years of hard work and continuous innovation,now we have been a leading high-tech enterprise in Shenzhen LED Lighting industry,specialized in R&D, producing and marketing high quality outdoor LED light,with 14years exporting experting experiences and 9years factory experiences. Our factory is verified onsite by the worlding-leading inspection company TUV and most of our products are TUV-GS, TUV-CE, TUV-CB Ceritificated!
